Circuit Diagram

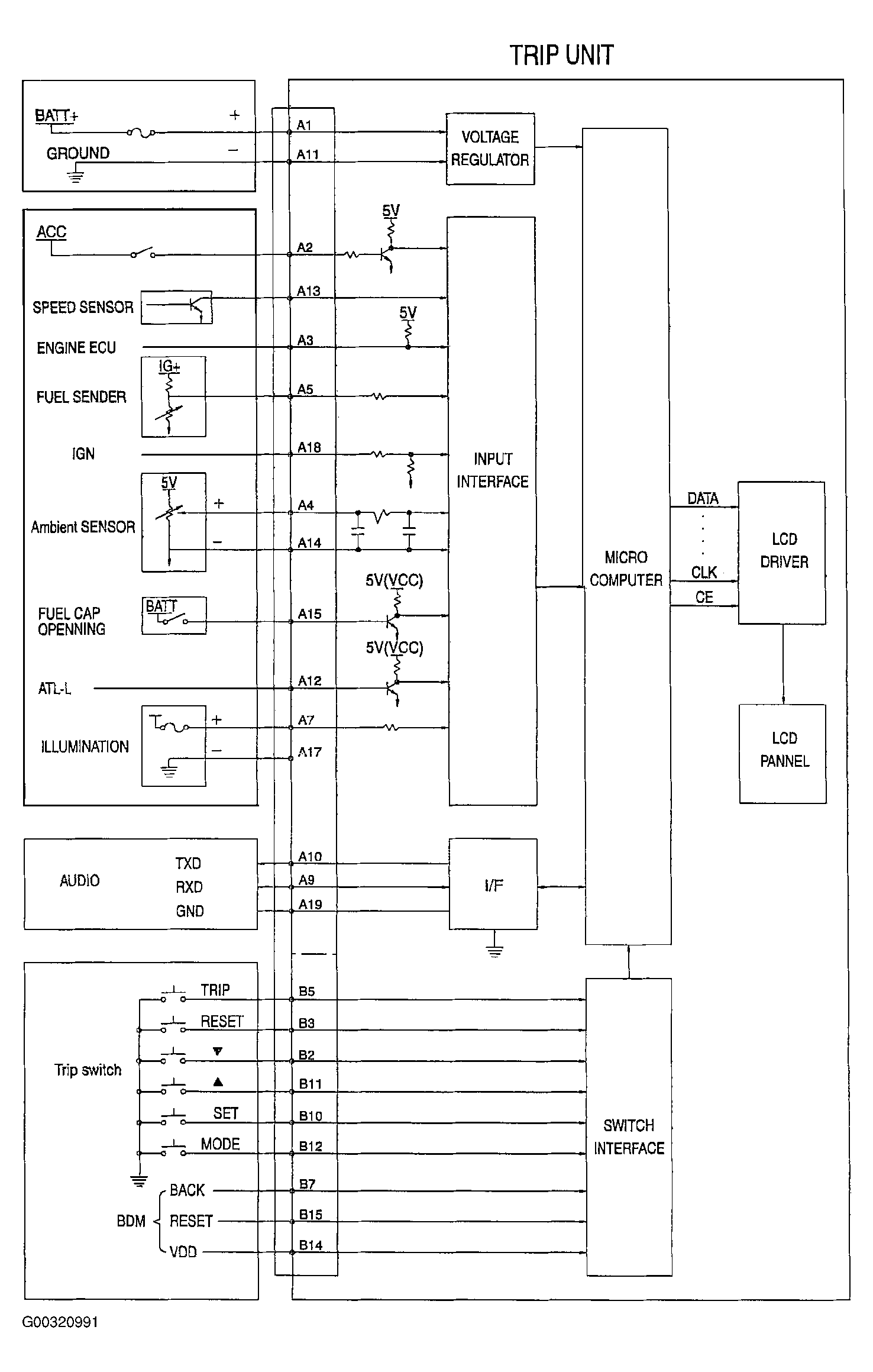

Fig 1: Trip Computer Circuit Diagram

G00320991

Courtesy of KIA MOTORS AMERICA, INC.
