Driver Side Door Module Connector End Views

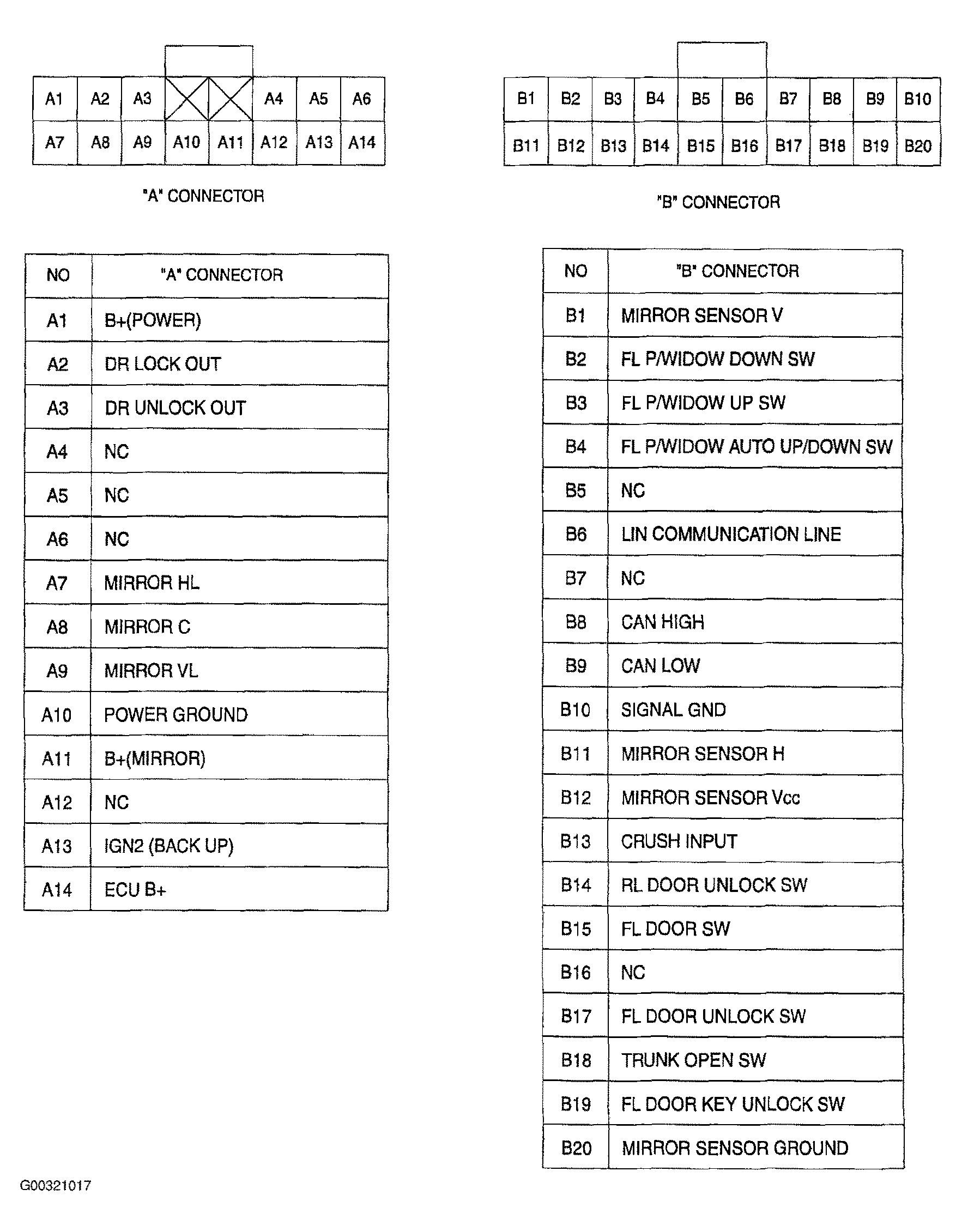

Fig 1: Driver Side Door Module Connector End Views

G00321017

Courtesy of KIA MOTORS AMERICA, INC.
