Standard Flow Of Diagnostic Troubleshooting: Notes

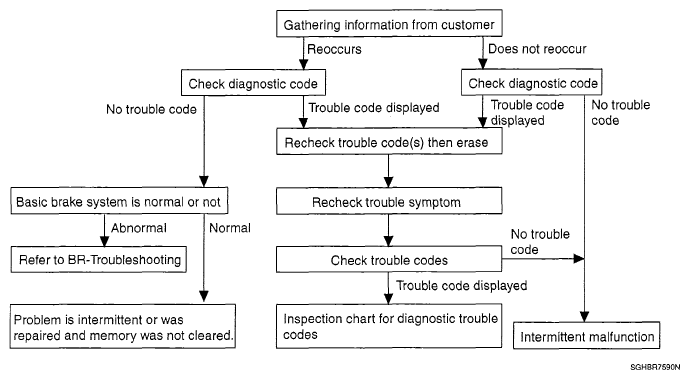

Fig 1: Diagnostic Troubleshooting Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.

* Using the customer problem analysis check sheet for reference, ask the customer as much detail as possible about the problem.
