HECU Input/Output Diagram: Notes

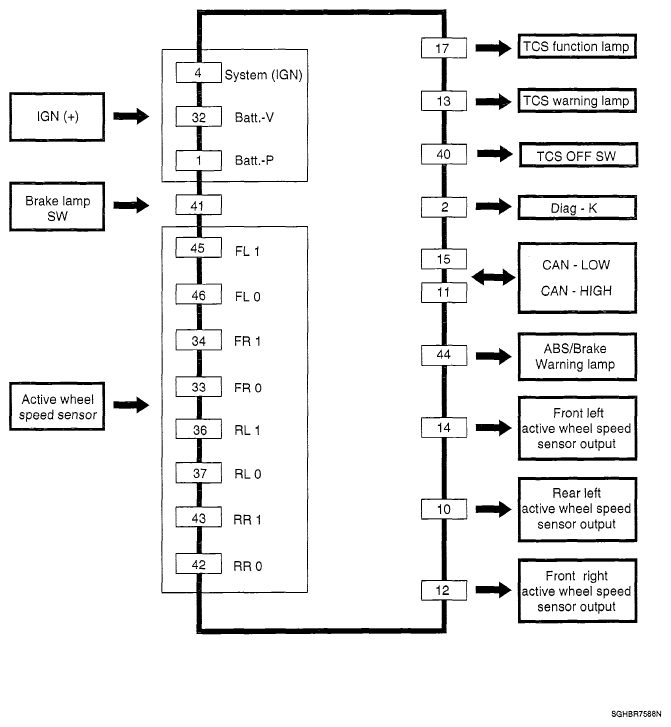

Fig 1: HECU Input/Output Diagram

G05117459

Courtesy of KIA MOTORS AMERICA, INC.
