Head Lamp Washer Function (For CANADA Only)

1. In case of IGN2 = ON & TAIL LAMP = ON status, if head lamp washer switch input is detected, head lamp washer output is turned ON.
2. In case of IGN2 = ON & HEAD LAMP = ON status, if washer switch input is detected, head lamp washer output is turned ON.

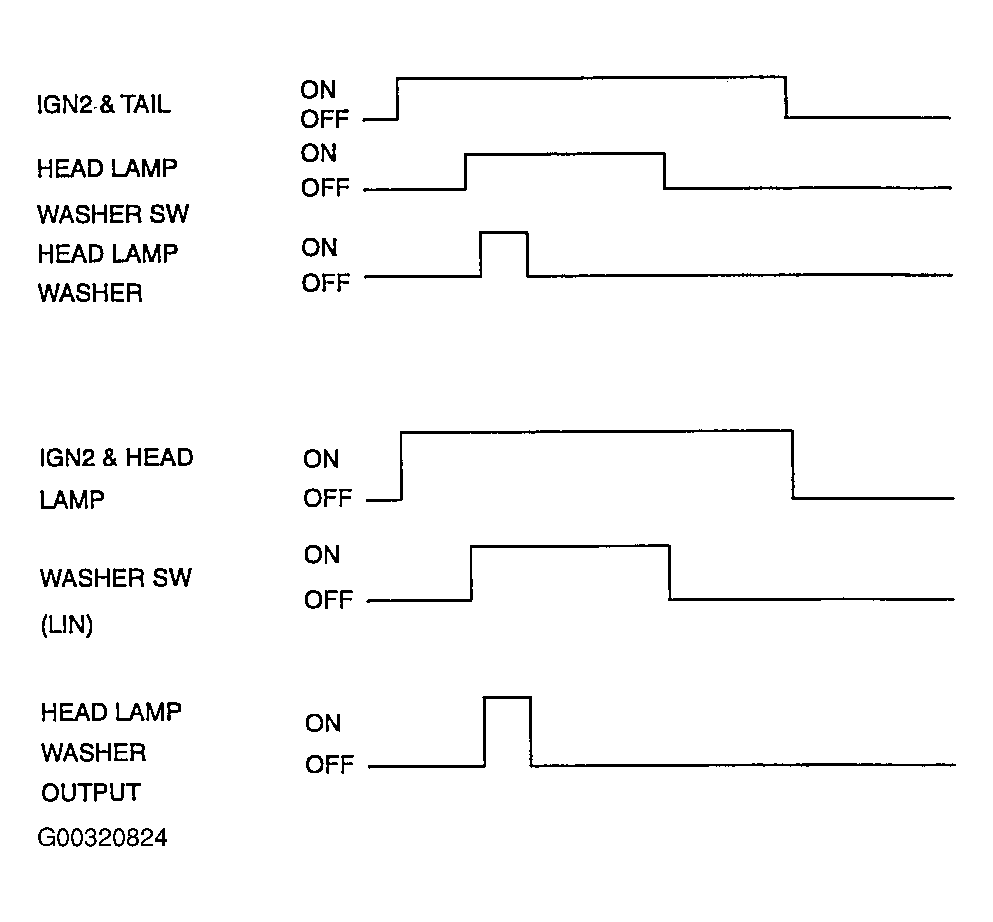

Fig 1: Head Lamp Washer On/Off Time Chart

Courtesy of KIA MOTORS AMERICA, INC.
