ADM, DDM, IMS Self Diagnostic Function

  1. It can be communicated with Hi-scan by way of BCM.
  2. BCM receives the commands from hi-scan and remits to ADM, DDM, and IMS units with CAN. BCM receives the response from the units with CAN inversely, and feedback to Hi-scan with CAN.
  3. Input display and output forced drive can be performed in each of ADM, DDM, and IMS units. Though, failure diagnosis is limited to the certain diagnosis ranges.

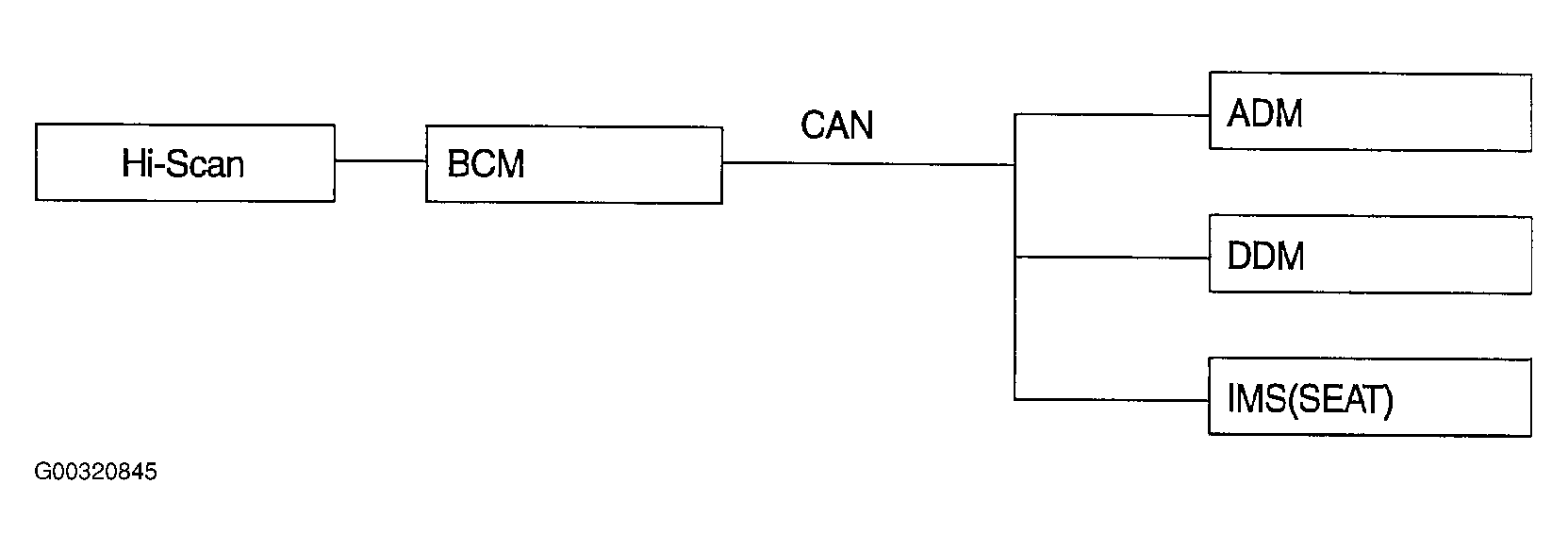

Fig 1: BCM Self Diagnostic Function Diagram
G00320845Courtesy of KIA MOTORS AMERICA, INC.
