Home >> Kia >> 2007 >> Amanti >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Anti-Lock Braking System Control Module >> HECU (Hydraulic And Electronic Control Unit) >> Components

HECU (Hydraulic And Electronic Control Unit): Components

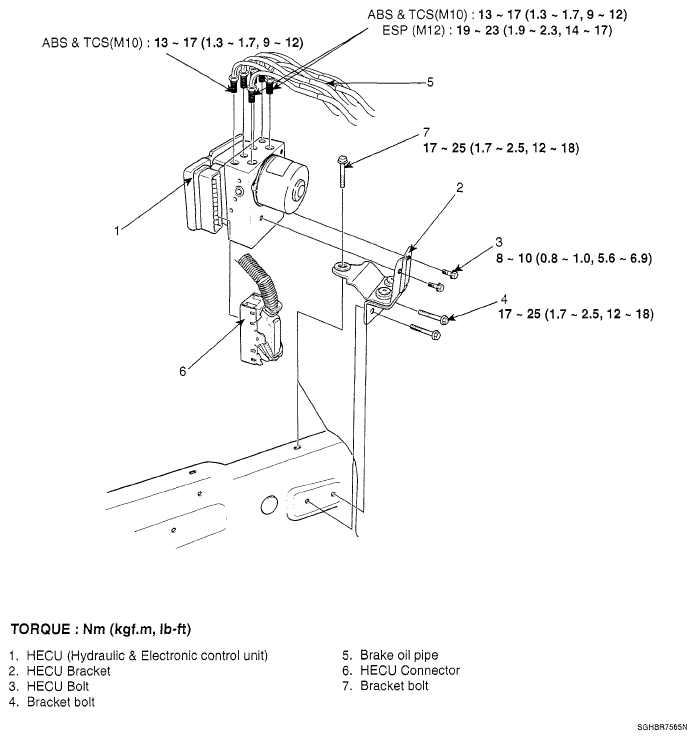

Fig 1: Hydraulic And Electronic Control Unit Components With Torque Specifications

G05117565

Courtesy of KIA MOTORS AMERICA, INC.
