Front Wheel Speed Sensor: Removal

  1. Remove the front wheel speed sensor mounting bolt (A).
    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G05117572Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the two wire bracket bolts (A).

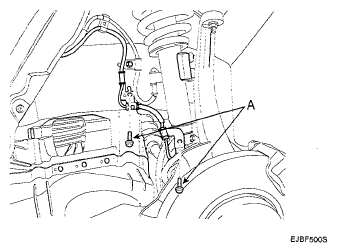

    Fig 2: Identifying Wire Bracket Bolts
    G05117573Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.
  4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
    Fig 3: Identifying Wheel Speed Sensor Connector
    G05117574Courtesy of KIA MOTORS AMERICA, INC.
