Home >> Kia >> 2006 >> Spectra5 2.0 2, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.0L 4-Cylinder Engine >> Cylinder Head Assembly >> Component

Cylinder Head Assembly: Component

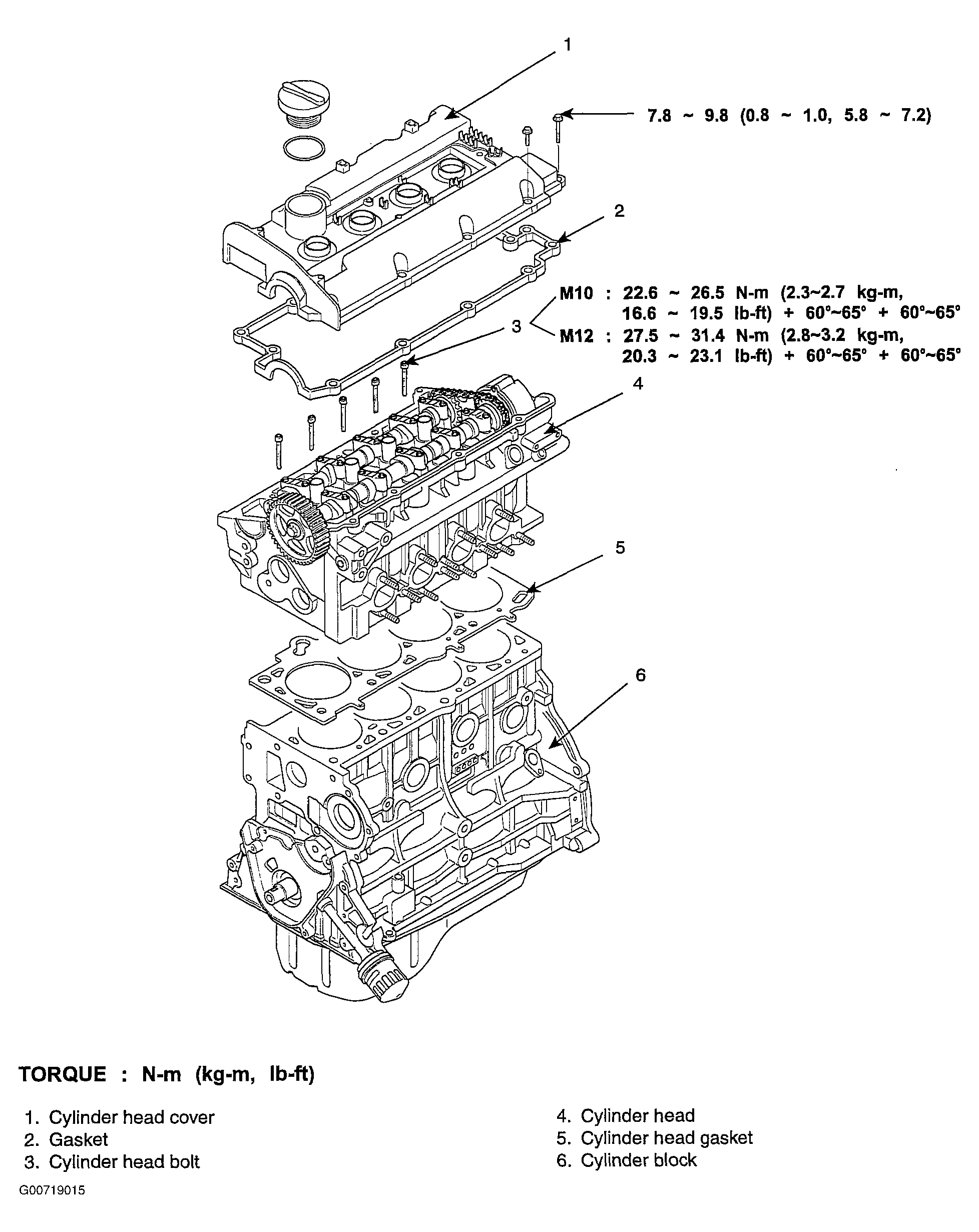

Fig 1: Identifying Cylinder Head Assembly Components (1 Of 2)
G00719015Courtesy of KIA MOTORS AMERICA, INC.

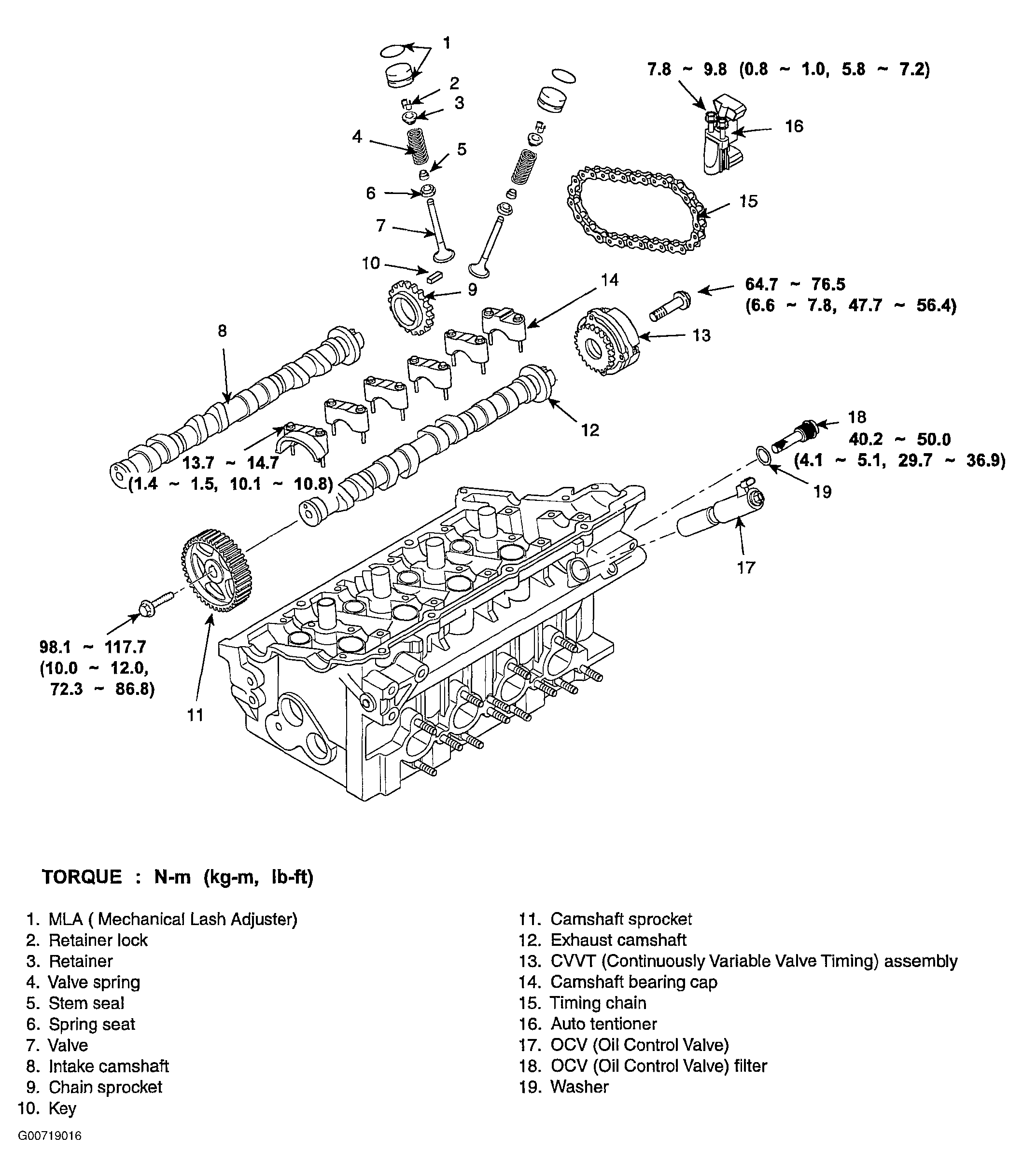

Fig 2: Identifying Cylinder Head Assembly Components (2 Of 2)
G00719016Courtesy of KIA MOTORS AMERICA, INC.
