Removal, Disassembly, Inspection, Reassembly & Installation: Notes

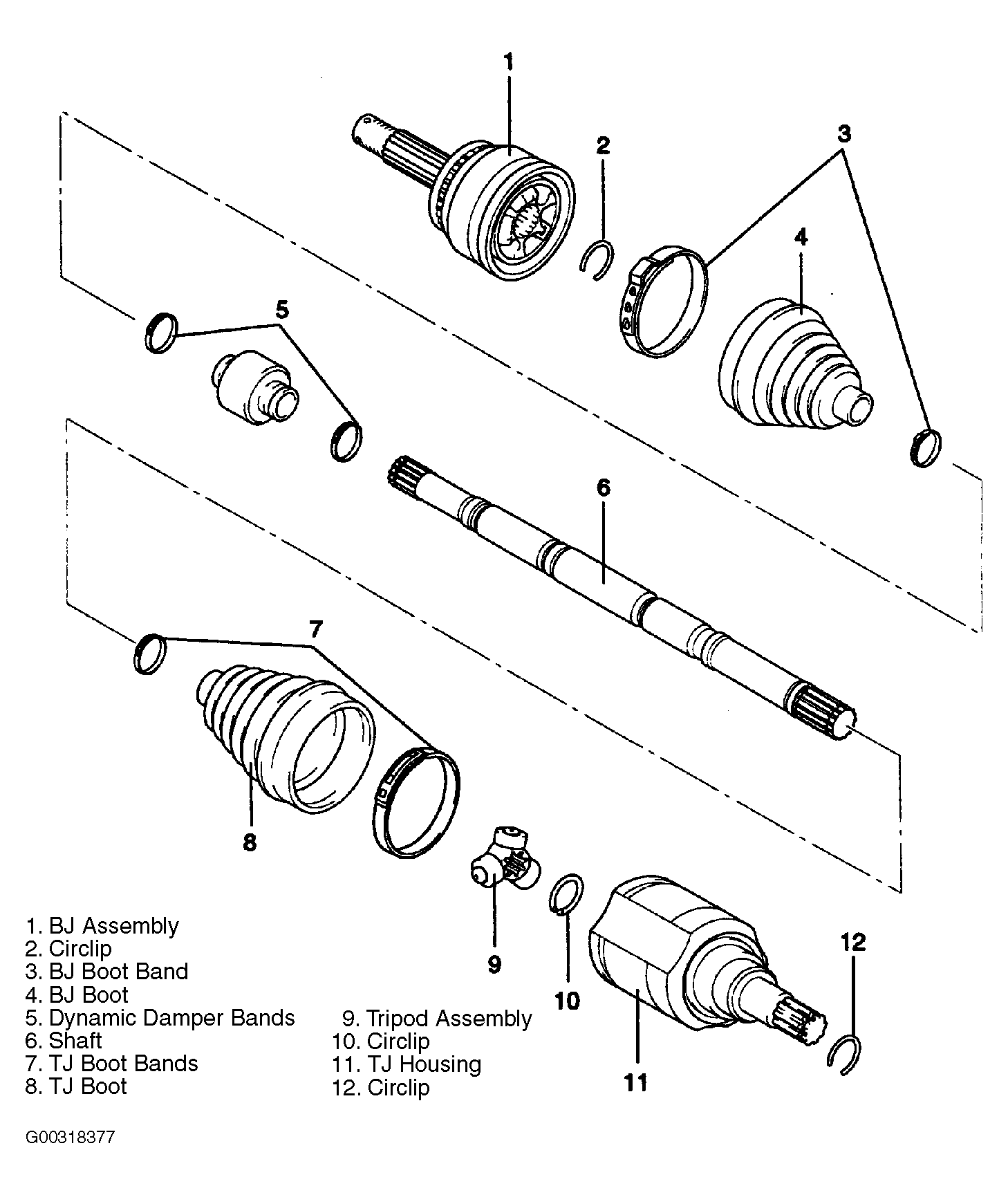

NOTE: For exploded view of axle shaft assembly, see Figure.
