Home >> Kia >> 2006 >> Spectra5 2.0 1, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Components >> Clutch Master Cylinder >> Components

Clutch Master Cylinder: Components

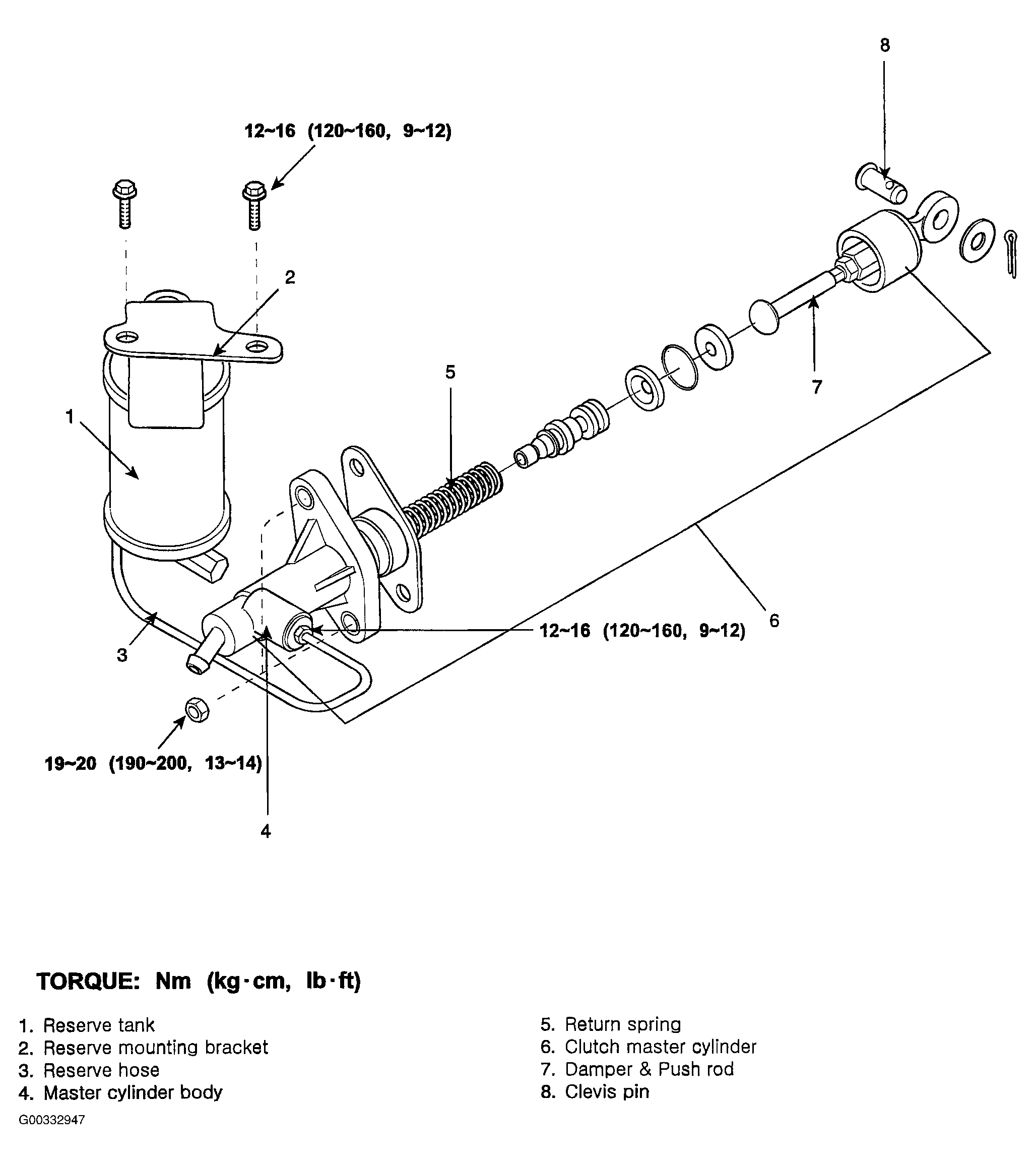

Fig 1: Exploded View Of Clutch Master Cylinder

G00332947

Courtesy of KIA MOTORS AMERICA, INC.
