Manual Transaxle Shift Control: Components

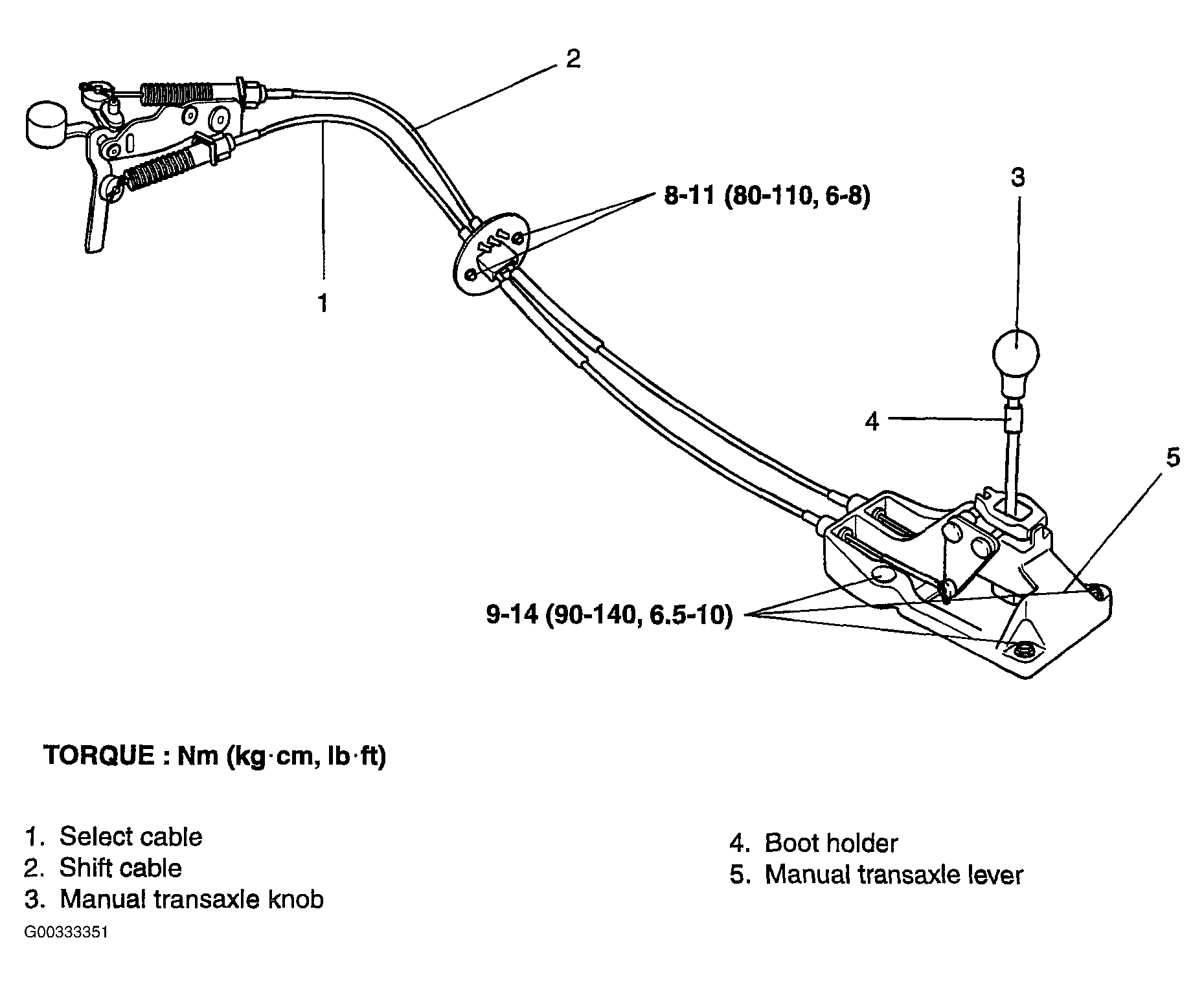

Fig 1: Manual Transaxle Shift Control Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

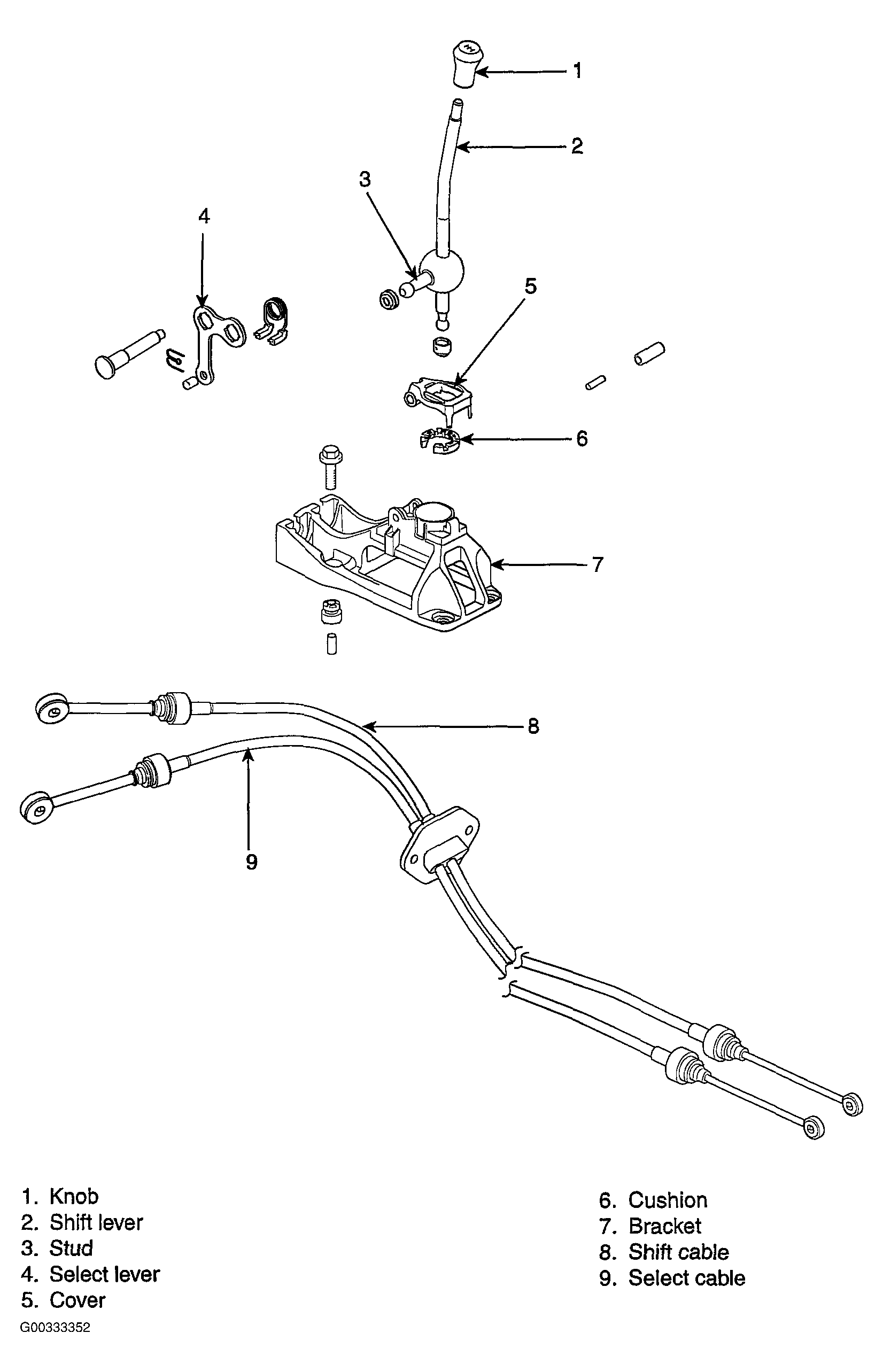

Fig 2: Manual Transaxle Shift Control Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
