Input Shaft: Components

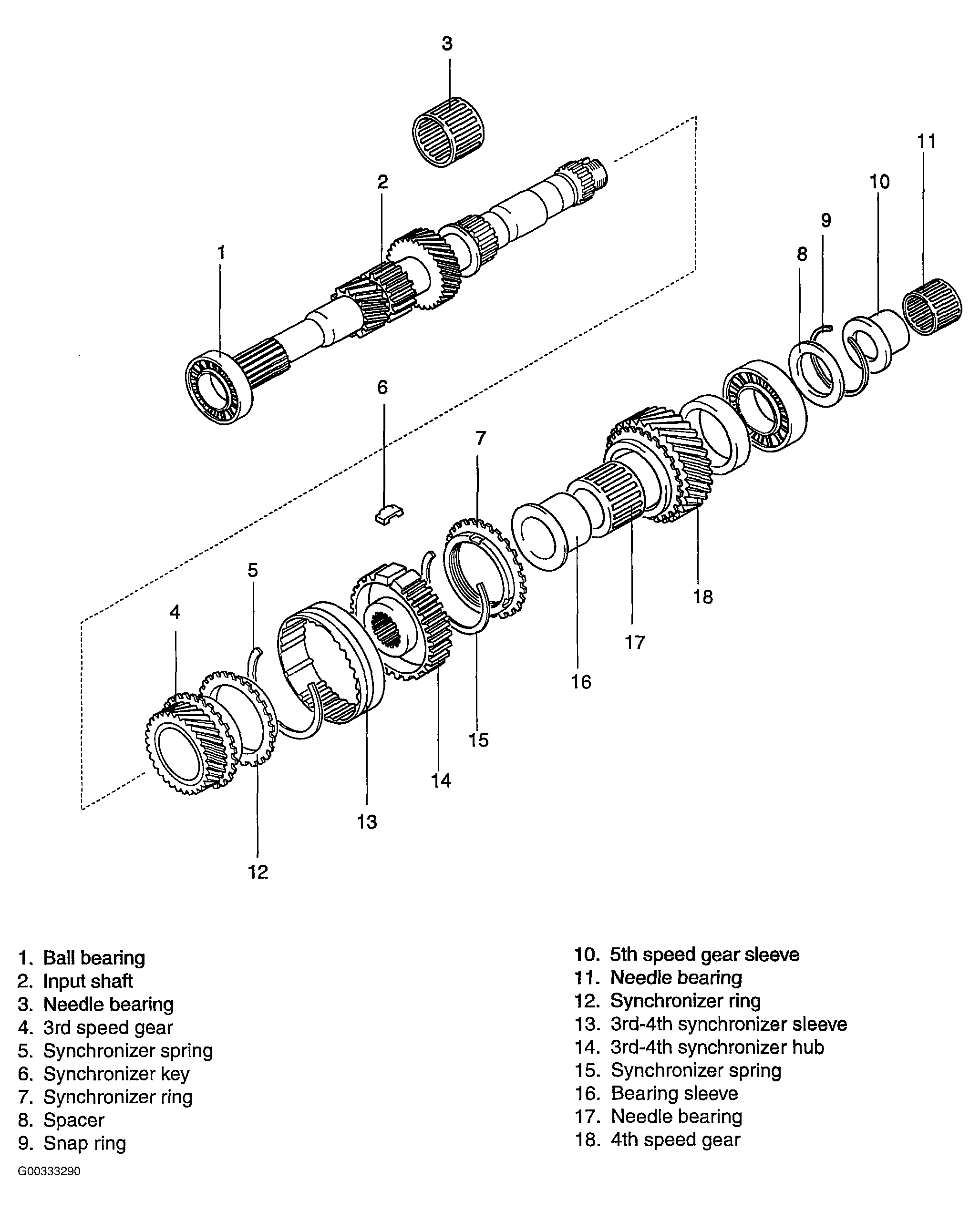

Fig 1: Exploded View Of Input Shaft Components

G00333290

Courtesy of KIA MOTORS AMERICA, INC.
