Clutch Cover And Disc: Components

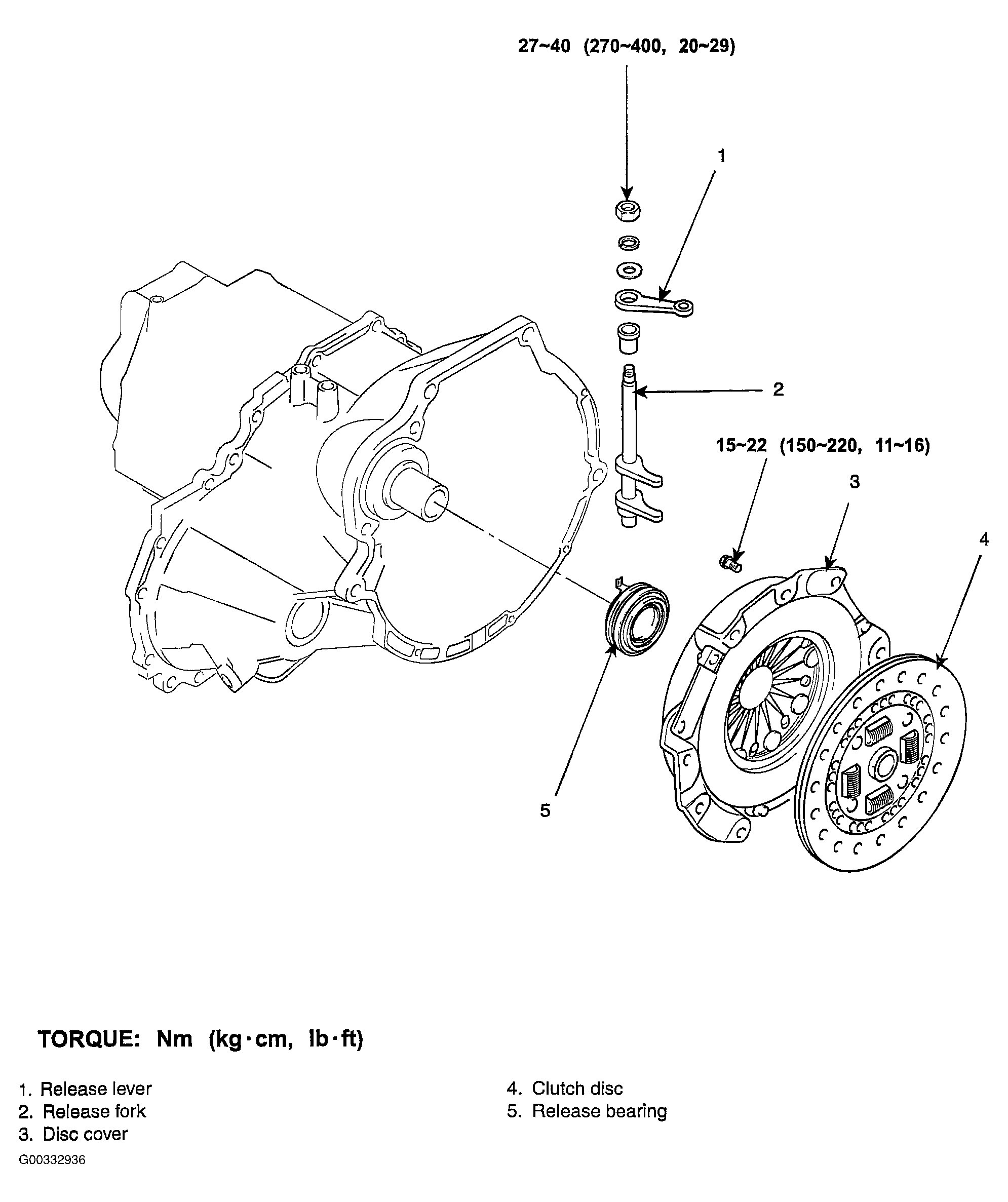

Fig 1: Clutch Components

G00332936

Courtesy of KIA MOTORS AMERICA, INC.
