Configuration Driving Pattern Related To DTC

  1. IDLE TEST MODE (COMPREHENSIVE COMPONENT)

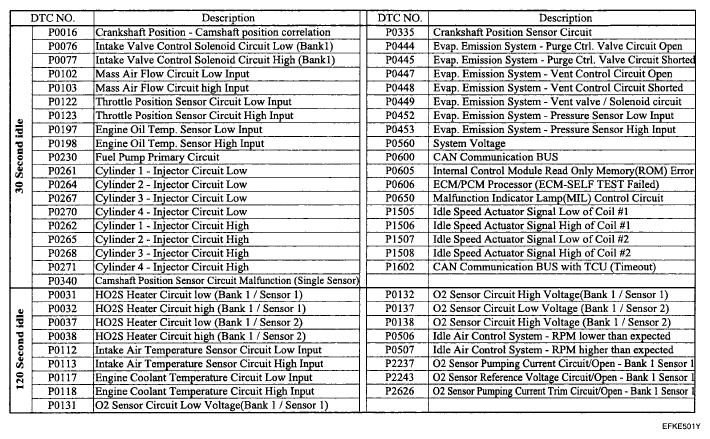

    Fig 1: Configuration Driving Pattern For DTC
    G04864274Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
    2. Select the DTC function of Hi-Scan (Pro).
    3. Start the engine and let the engine at idle for 30 seconds or 120 seconds as mentioned in table above respectively.
    4. The given time in above table is the required time after starting the engine with warmed-up vehicle.
  2. SHORT DRIVING TEST MODE

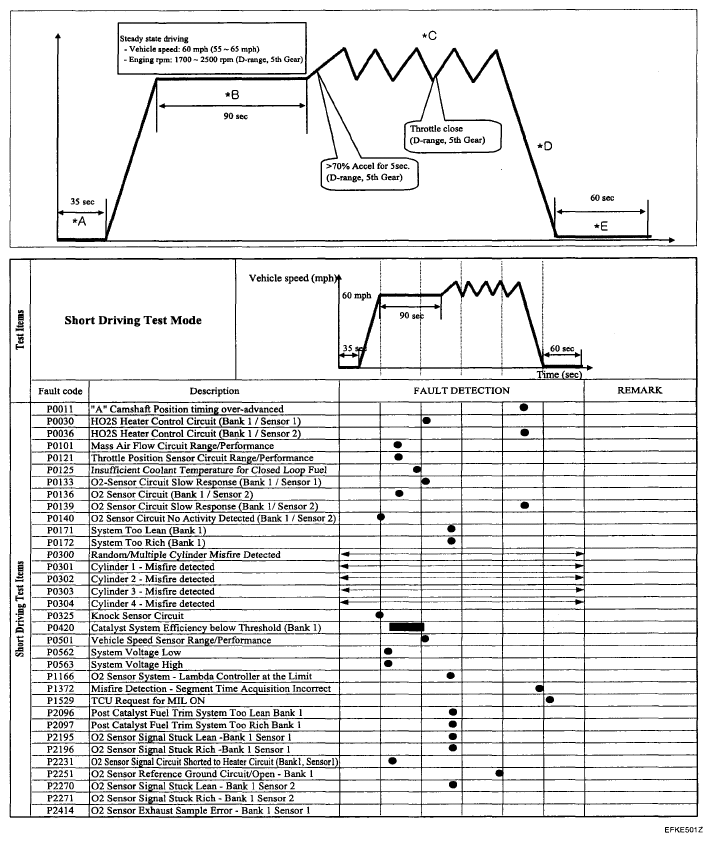

    Fig 2: Short Driving Test Mode
    G04864275Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
    2. Select the DTC function of Hi-Scan (Pro).
    3. Start the engine and let the engine at idle for 35 seconds or more (*A).
    4. Drive the vehicle at 60 mph (55~65 mph) for 90 seconds or more (*B).
    5. Accelerate the vehicle with high acceleration (more than 70% of TPS) for 5 seconds and decelerate with closed throttle for 7 seconds more than five times (*C), then decelerate the vehicle to stop (*D).
    6. Let the engine at idle for 60 seconds or more (*E).
  3. LONG DRIVING TEST MODE
    Fig 3: Long Driving Test Mode
    G04864276Courtesy of KIA MOTORS AMERICA, INC.
LONG DRIVING TEST ITEMS

DTC NO. Description Remarks
P0116 Engine Coolant Temperature Circuit Range/Performance
P0128 Coolant Thermostat (Coolant Temp. below Thermostat Regulating Temp.) -10°C (14°F) < coolant temp. at Engine start < 74°C (165.2°F)
P0196 Engine Oil Temp. Sensor Range / Performance Coolant temp. at Engine start < 40°C (104°F)
NOTE:
  1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
  2. Select the DTC function of Hi-Scan (Pro).
  3. Start the engine and let the engine at idle for 35 seconds or more (*A).
  4. Drive the vehicle at 60 mph (55~65 mph) for 10 minutes or more and decrease the vehicle speed until it stops (*B).
  5. Let the engine at idle for 60 seconds or more (*C).
ITEMS WITH HI-SCAN LEAKAGE TEST

DTC Description Remarks
P0441 Evap. Emission System Incorrect Purge Flow
  1. Warm-up & connect the Hi-scan pro
  2. Idle (No Electric load, P/N-range)
  3. Conduct Leakage test using the Hi-scan pro
P0442 Evap. Emission System - Leak detedted (small leak)
P0451 Evap. Emission System - Pressure Sensor Range / Performance
P0454 Evap. Emission System - Pressure Sensor Intermittent
P0455 Evap. Emission System - Leak detected (large leak)
P0456 Evap. Emission System - Leak detected (very small leak)
NOTE:
  1. Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
  2. Select "EVAP LEAKAGE TEST" mode of Hi-Scan (Pro).
  3. Check the same code reoccur.
