Keys Registration And Correction

In cases when the master key is lost or where a new set of master keys need to be produced, it can be achieved using two methods.

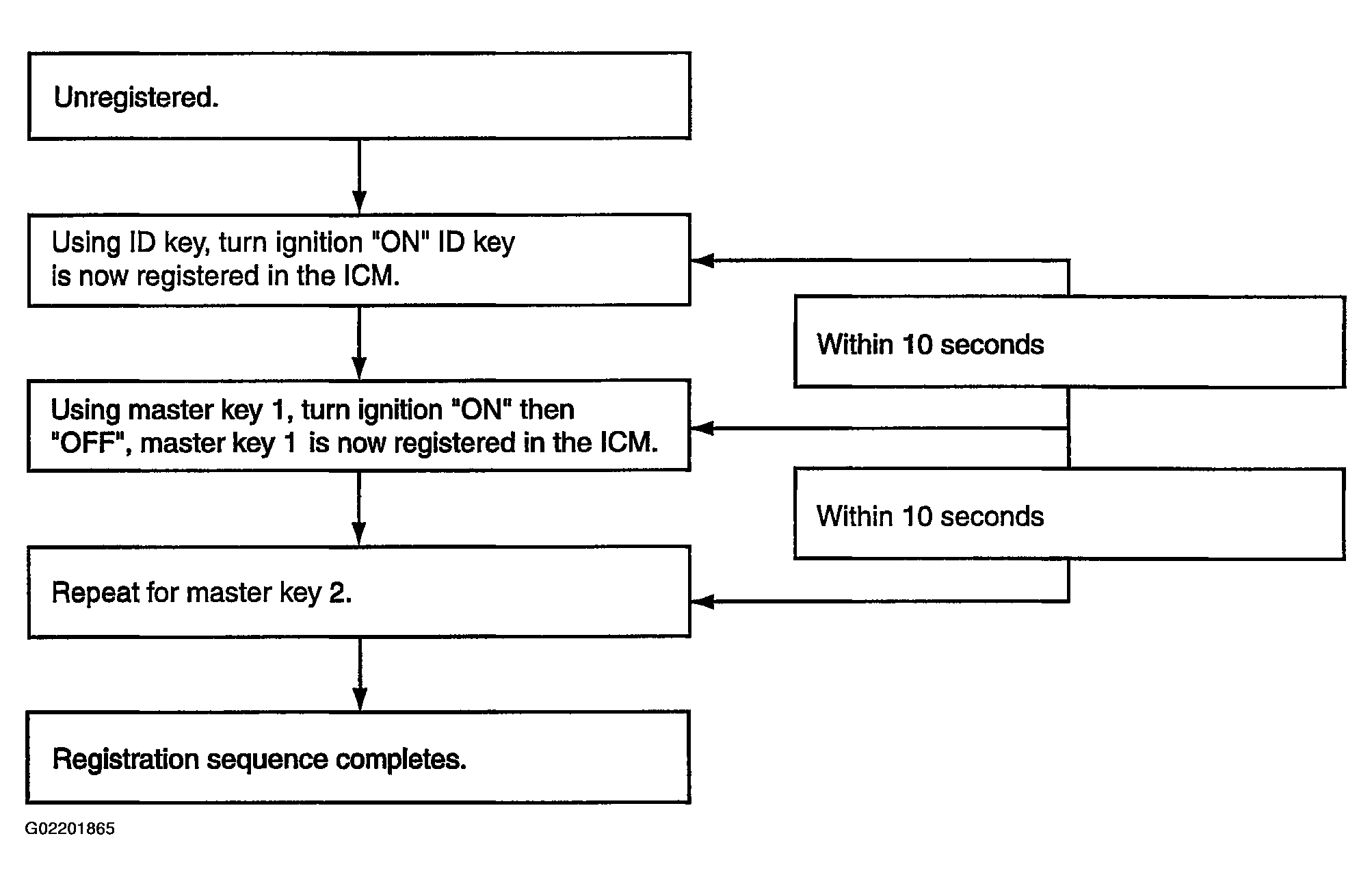

1. Using ID key

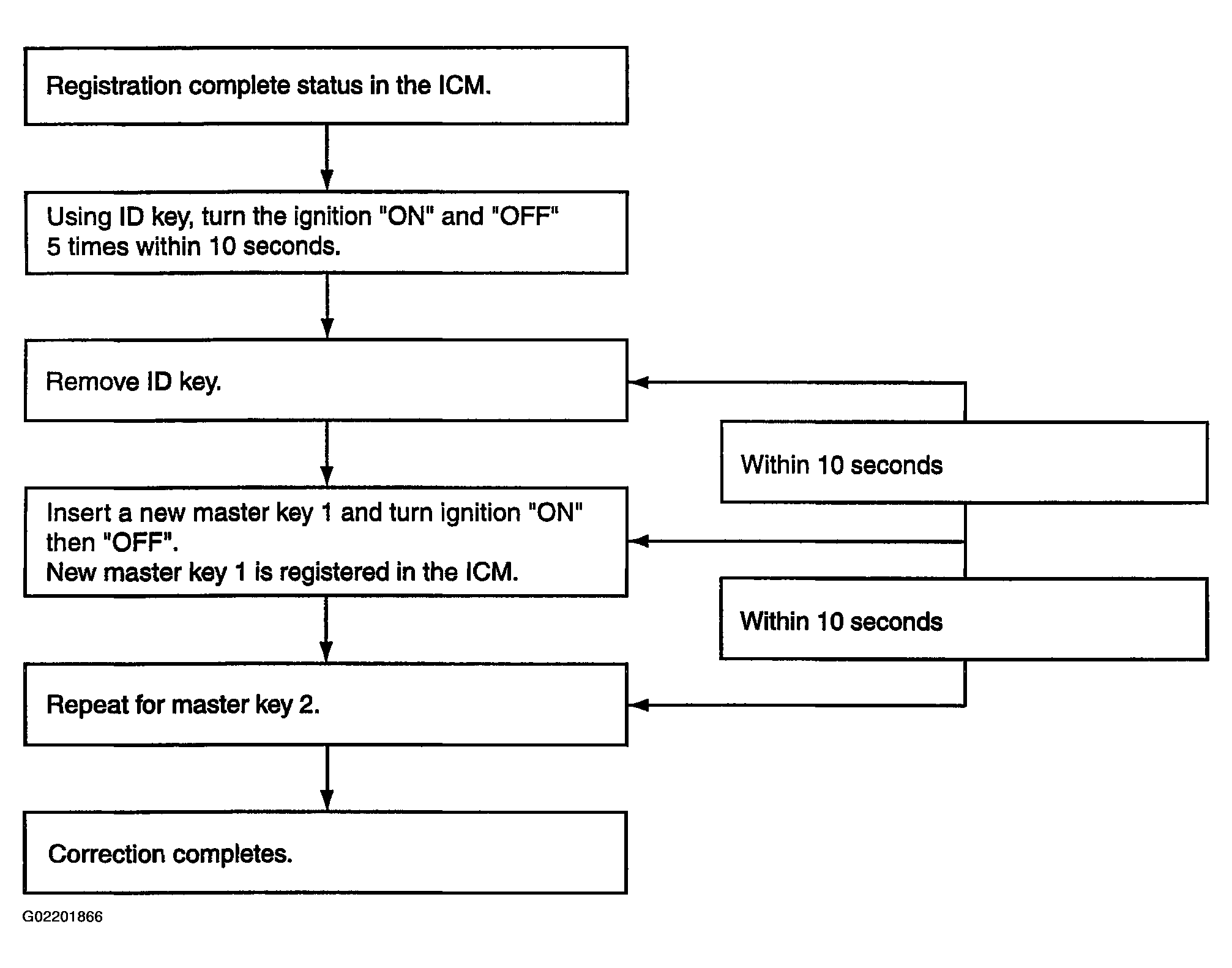

   Fig 2: Identifying Registration Correction For Master Keys Using ID Keys

   Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Once the password is mis-registered, it is impossible to register new password during 10 seconds regardless of ignition ON/
When the new master keys have been registered, the codes for existing master keys are all cleared.
2. Using password

   When the customers lost the ID key, new master keys can be registered by using Hi-scan only. ID key can not be corrected and reproduced.

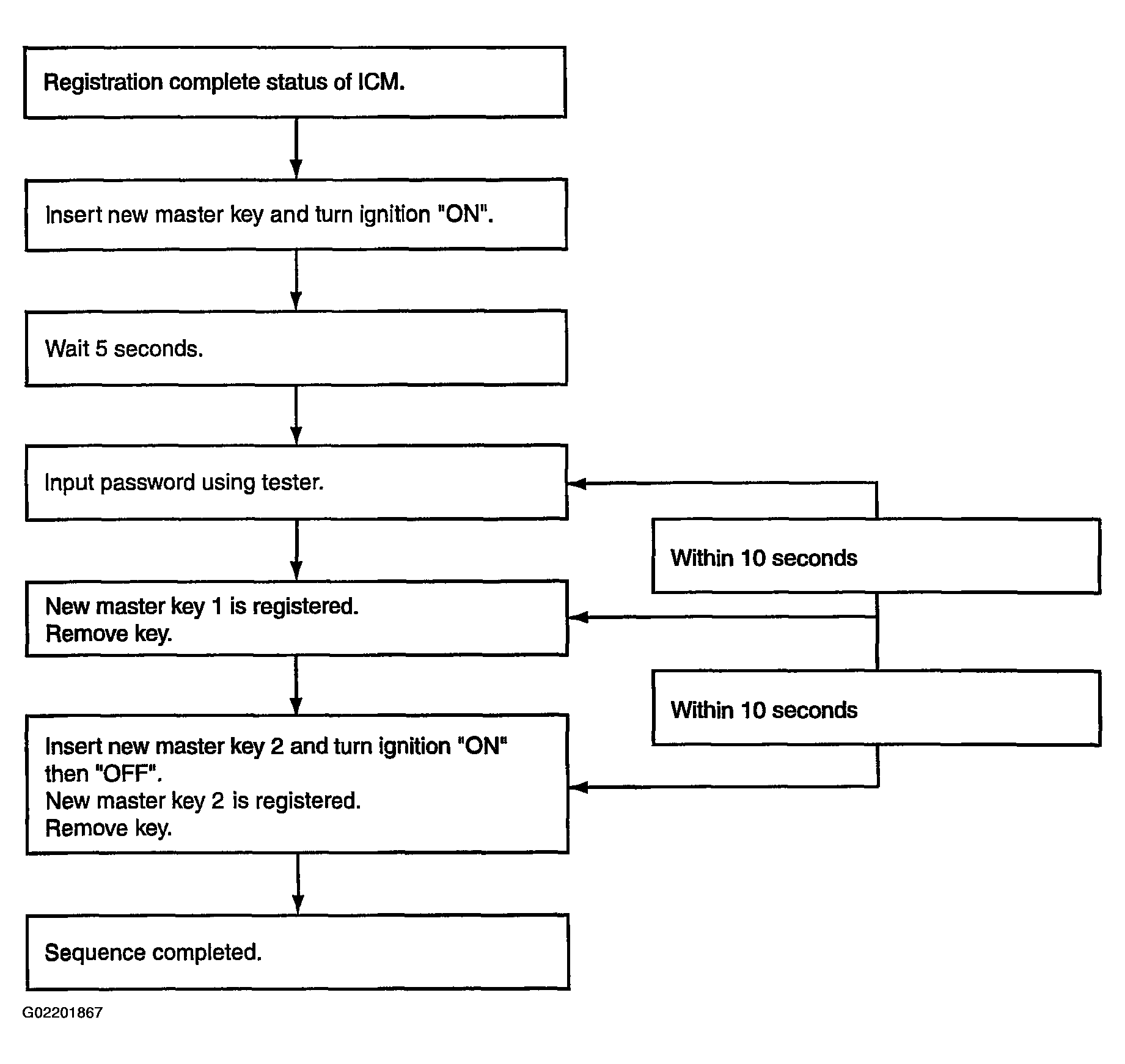

Fig 3: Identifying Registration Correction For Master Keys Using Password

Courtesy of KIA MOTORS AMERICA, INC.
