Home >> Kia >> 2006 >> Sorento EX, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Ring & LIPSEAL Location And Part Number >> Notes

Ring & LIPSEAL Location And Part Number: Notes

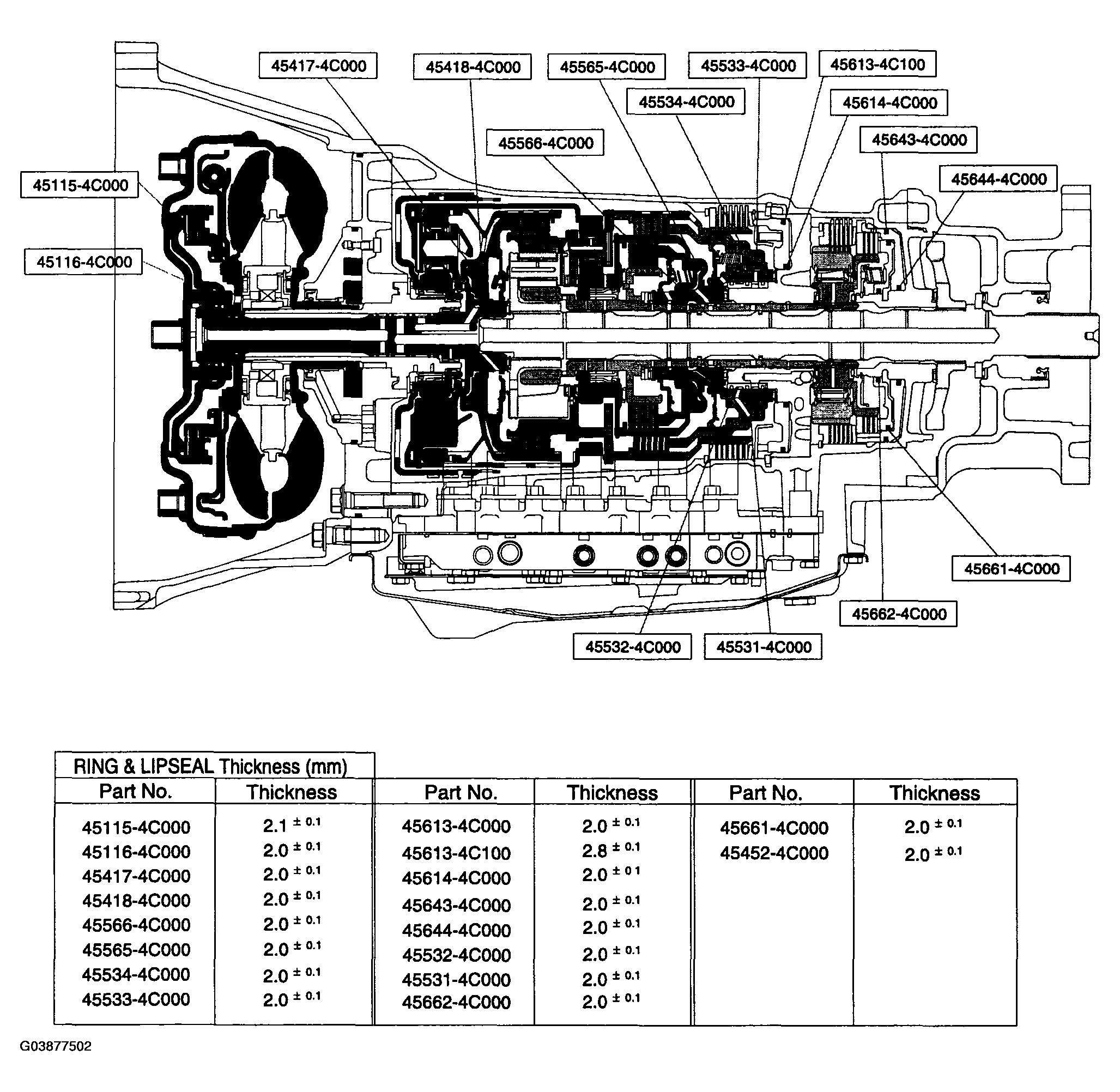

Fig 1: Identifying Ring & Lipseal Location And Part Number

G03877502

Courtesy of KIA MOTORS AMERICA, INC.
