Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G1 | Behind left kick panel. See Figure . |
| G2 | Behind right kick panel. See Figure . |
| G3 | Below center console, rear of shift lever assembly. See Figure . |
| G4 | Behind left headlight. See Figure . |
| G5 | At right front of engine compartment. See Figure . |
| G6 | Behind left headlight. See Figure . |
| G7 | At right side of engine compartment. See Figure . |
| G9 | At right side of engine compartment. See Figure . |
| G10 | At right side of engine compartment. See Figure . |
| G11 | Behind lower left center of dash. See Figure . |
| G12 | Behind lower right center of dash. See Figure . |

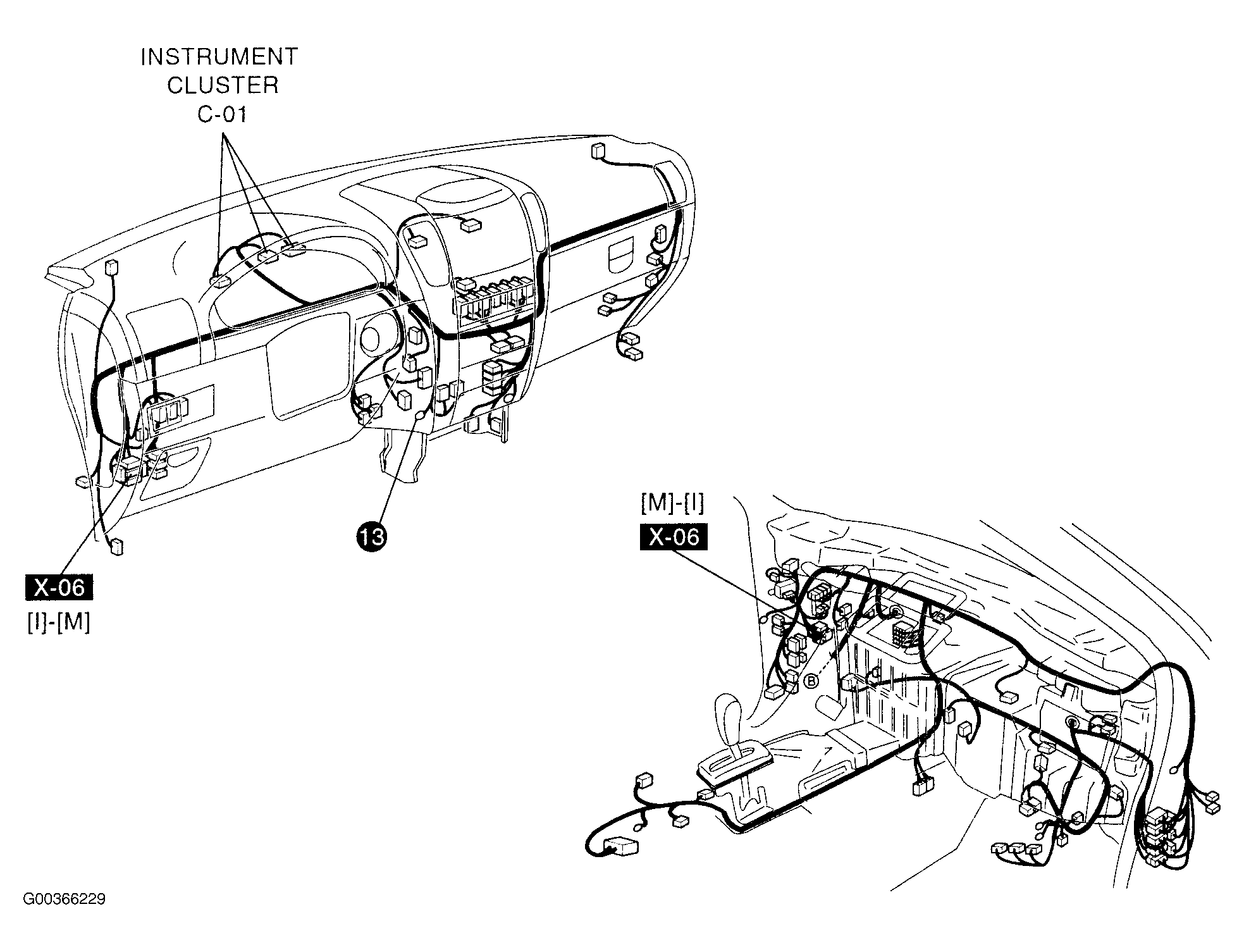

| G13 | Behind lower left center of dash. See Figure . |
| G14 | Behind lower right center of dash. See Figure . |
| G15 | Behind lower right side of dash. See Figure . |
| G16 | Behind lower right side of dash. See Figure . |
| G17 | Behind lower right side of dash. See Figure . |
| G18 | Behind lower right side of dash. See Figure . |

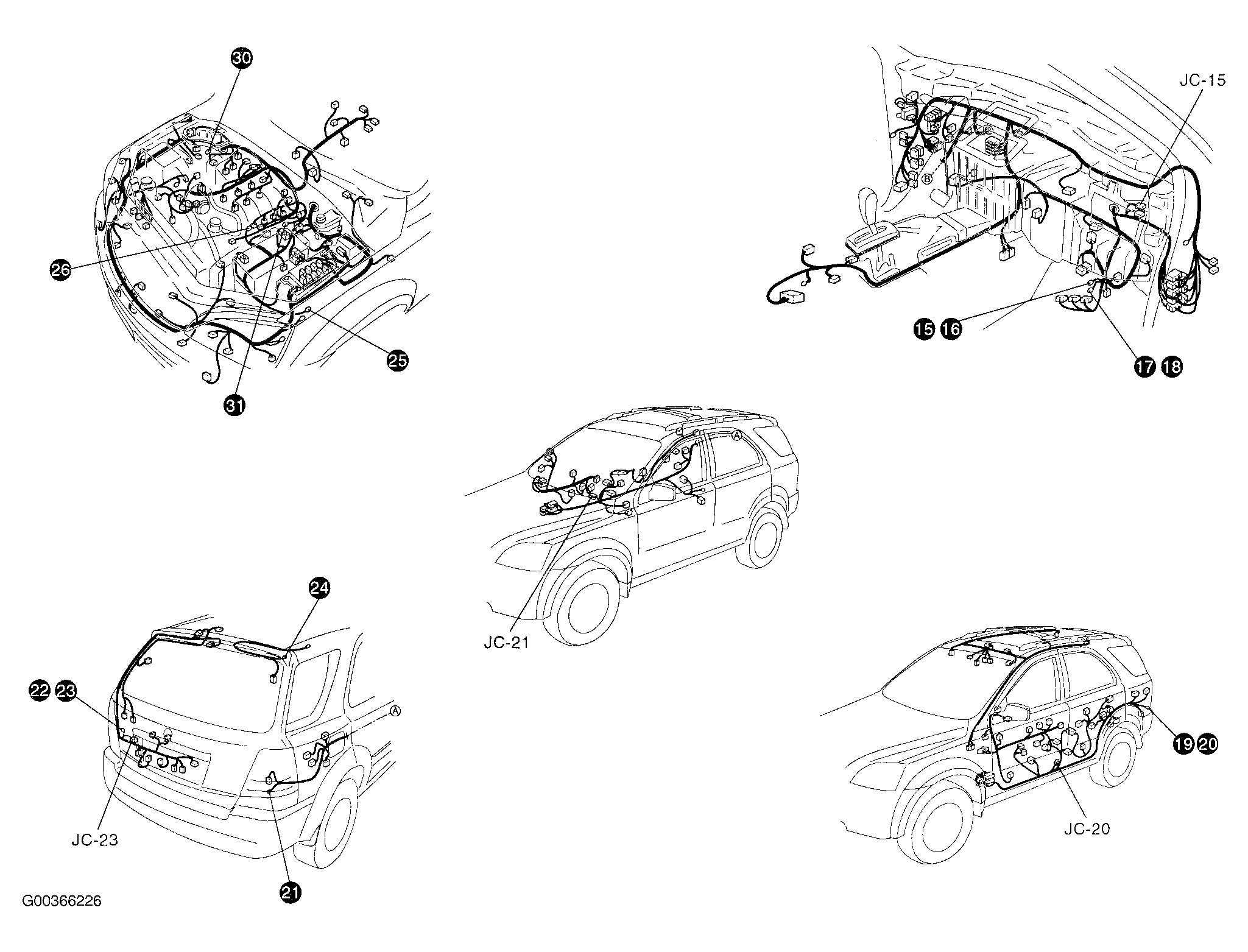

| G19 | Behind left taillight assembly. See Figure . |
| G20 | Behind left taillight assembly. See Figure . |
| G21 | Behind right taillight assembly. See Figure . |
| G22 | Behind left taillight assembly. See Figure . |
| G23 | Behind left taillight assembly. See Figure . |
| G24 | At top right of tailgate. See Figure . |
| G25 | At left front of engine compartment. See Figure . |
| G26 | At left front of engine. See Figure . |
| G27 | At left front of engine compartment. See Figure . |
| G28 | At left front of engine compartment. See Figure . |
| G30 | At right rear corner of engine compartment. See Figure . |
| G31 | At left rear of engine. See Figure . |
