Circuit Diagram
Circuit Diagram

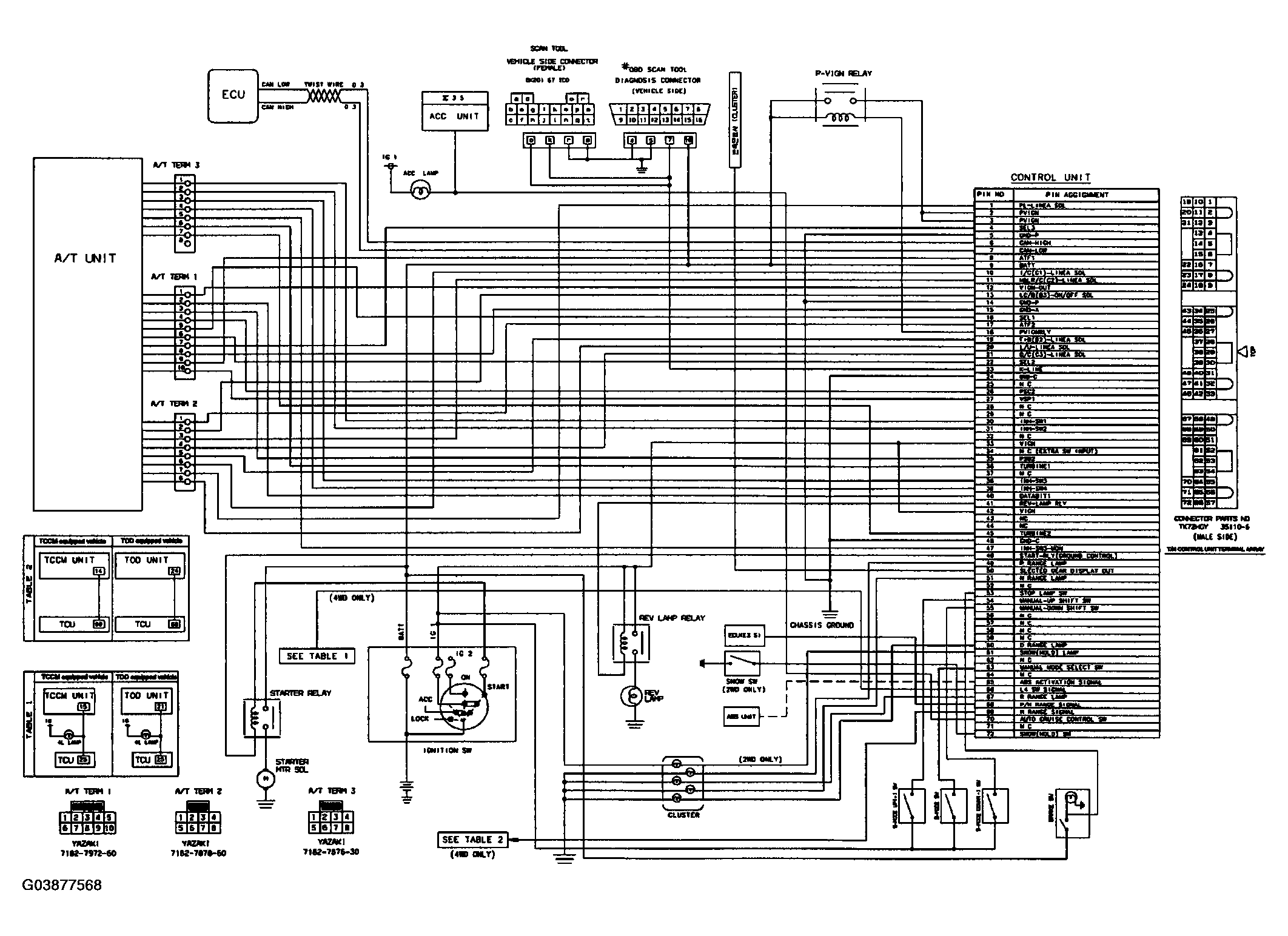

Fig 1: Circuit Diagram - Automatic Transaxle System (A5SR1)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
