System Component: Notes

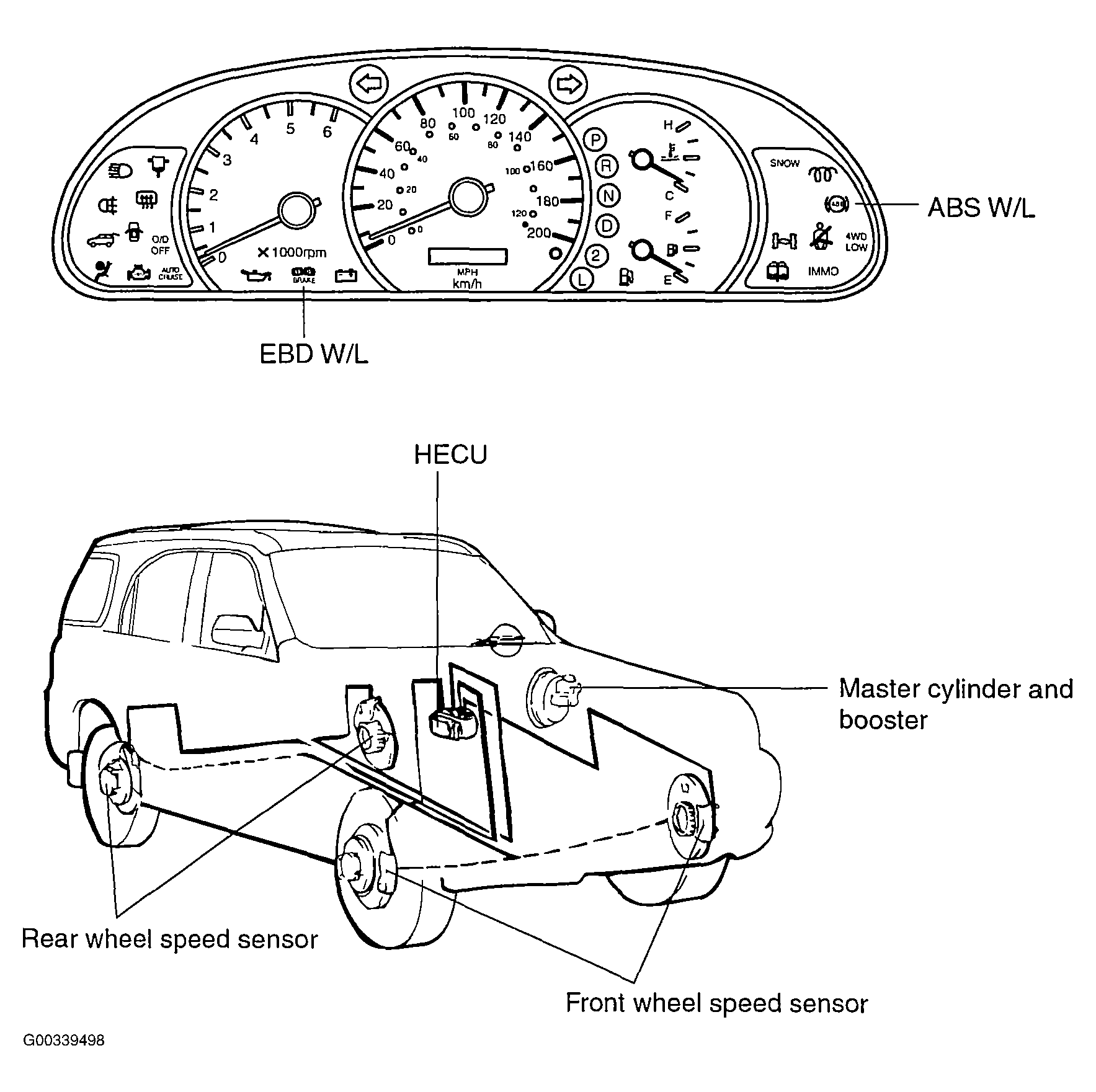

Fig 1: ABS System Component Locations

Courtesy of KIA MOTORS AMERICA, INC.

The Anti-Lock Brake System (ABS) controls the hydraulic brake pressure of all four wheels during sudden braking and braking on hazardous road surfaces, preventing the wheels from locking up. ABS provides the following benefits:

1. Enables steering around obstacles with a greater degree of certainty, even during emergency braking.
2. Enables stopping during emergency braking while keeping stability and steerability even on curves.
