Anti-Lock Braking System Control Module: Removal

1. Disconnect the HECU (Hydraulic and electronic Control Unit) and motor connector.

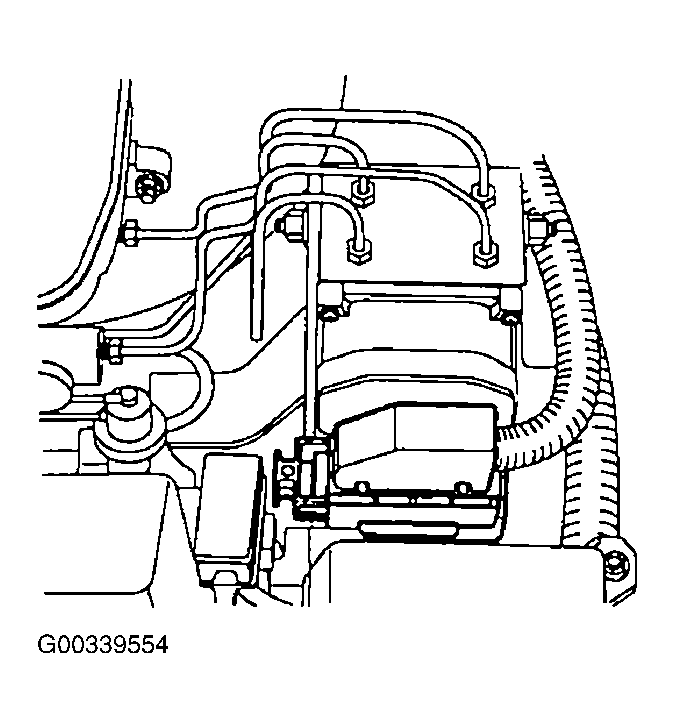

   Fig 1: Disconnect The HECU And Motor Connector

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the brake lines from the HECU.
3. Remove the HECU mounting nut, HECU bracket bolt and the HECU.

CAUTION:

• Never attempt to disassemble the HECU.
• The HECU must be transported and stored in the upright position and with sealed ports. The HECU must not be drained.

Fig 2: HECU In The Upright Position

Courtesy of KIA MOTORS AMERICA, INC.
