Connecting Rod And Crankshaft
- Check the connecting rod end play.
Using a feeler gauge, measure the end play while moving the connecting rod back and forth.
Standard end play: 0.1-0.25 mm (0.004-0.010 in.)
- If out-of-tolerance, install a new connecting rod.
- If still out-of-tolerance, replace the crankshaft.
- Check the connecting rod bearing oil clearance.
- Check the matchmarks on the connecting rod and cap are aligned to ensure correct reassembly.
- Remove 2 connecting rod cap bolts.
- Remove the connecting rod cap and bearing half.
- Clean the crank pin and bearing.
- Place plastigage across the crank p in.
- Reinstall the bearing half and cap, and torque the bolts.
Tightening torque
19.6 N.m (2.0 kgf.m, 14.46 lb-ft) + 90°
NOTE: Do not turn the crankshaft. - Remove 2 bolts, connecting rod cap and bearing-half.

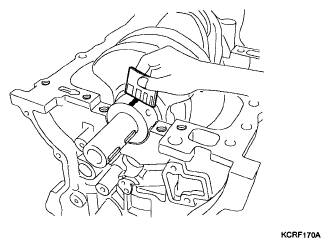

- Measure the plastigage at its widest point.
Standard oil clearance
0.038-0.056 mm (0.0015-0.0022 in.)
- If the plastigage measures too wide or too narrow, remove the upper half of the bearing, install a new, complete bearing with the same color mark (select the color as shown in the next column), and recheck the clearance.CAUTION: Do not file, shim, or scrape the bearings or the caps to adjust clearance.
- If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check clearance again.NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.CAUTION: If the marks are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.
CONNECTING ROD MARK LOCATION
DISCRIMINATION OF CONNECTING ROD
DISCRIMINATION OF CONNECTING RODCLASS MARK INSIDE DIAMETER 0 a 58.000-58.006 mm
(2.2834-2.2837 in.)1 b 58.006-58.012 mm
(2.2837-2.2839 in.)2 c 58.012-58.018 mm

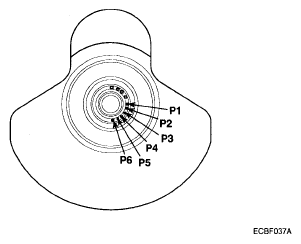

(2.2839-2.2842 in.)CRANKSHAFT PIN MARK LOCATION
DISCRIMINATION OF CRANKSHAFT
DISCRIMINATION OF CRANKSHAFT

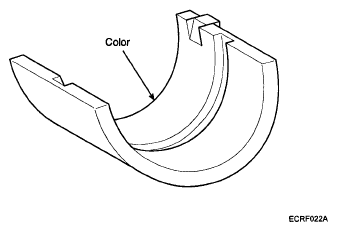

DISCRIMINATION OF CRANKSHAFTCLASS MARK OUTSIDE DIAMETER OF PIN 1 1 or A 54.966-54.972 mm (2.1640-2.1642 in.) II 2 or B 54.960-54.966 mm (2.1638-2.1640 in.) III 3 or C 54.954-54.960 mm (2.1635-2.1638 in.) PLACE OF IDENTIFICATION MARK (CONNECTING ROD BEARING)
DISCRIMINATION OF CONNECTING ROD BEARING
DISCRIMINATION OF CONNECTING ROD BEARINGCLASS MARK THICKNESS OF BEARING E BLUE 1.514-1.517 mm (0.0596-0.0597 in.) D BLACK 1.511-1.514 mm (0.0595-0.0596 in.) C BROWN 1.508-1.511 mm (0.0594-0.0595 in.) B GREEN 1.505-1.508 mm (0.0593-0.0594 in.) A YELLOW 1.502-1.505 mm (0.0591-0.0593 in.) - Selection
CONNECTING ROD IDENTIFICATION MARK REFERENCECONNECTING ROD IDENTIFICATION MARK 0 (a) 1 (b) 2 (c) CRANKSHAFT IDENTIFICATION MARK 1 or A A (YELLOW) B (GREEN) C (BROWN) 2 or B B (GREEN) C (BROWN) D (BLACK) 3 or C C (BROWN) D (BLACK) E (BLUE) - Check the crankshaft bearing oil clearance.
- To check main bearing-to-journal oil clearance, remove the main bearing caps and bearing halves.
- Clean each main journal and bearing half with a clean shop tower.
- Place one strip of plastigage across each main journal.

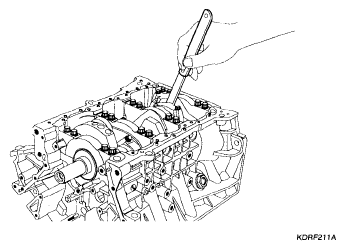

- Reinstall the bearings and caps, then torque the bolts.
Tightening torque
49.00 N.m (5.0 kgf.m, 36.16 lb-ft) + 90°
19.60 N.m (2.0 kgf.m, 14.46 lb-ft)+ 120°
29.40-31.36 N.m (3.0-3.2 kgf.m, 21.70-23.14 lb-ft)

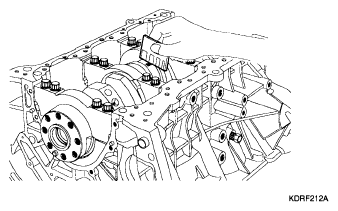

NOTE: Do not turn the crankshaft. - Remove the cap and bearing again, and measure the widest part of the plastigage.
Standard oil clearance
0.022-0.040 mm (0.0009-0.0016 in.)
- If the plastigage measures too wide or too narrow, remove the upper half of the bearing, install a new, complete bearing with the same color mark (select the color as shown in the next column), and recheck the clearance.CAUTION: Do not file, shim, or scrape the bearings or the caps to adjust clearance.
- If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check clearance again.

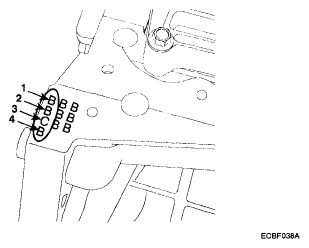

NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.CAUTION: If the marks are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.Crankshaft bore mark location
Letters have been stamped on the block as a mark for the size of each of the 5 main journal bores.
Use them, and the numbers or bar stamped on the crank (marks for main journal size), to choose the correct bearings.
DISCRIMINATION OF CYLINDER BLOCK
DISCRIMINATION OF CYLINDER BLOCKCLASS MARK INSIDE DIAMETER a A 73.500-73.506 mm
(2.8937-2.8939 in.)b B 73.506-73.512 mm
(2.8939-2.8942 in.)c C 73.512-73.518 mm

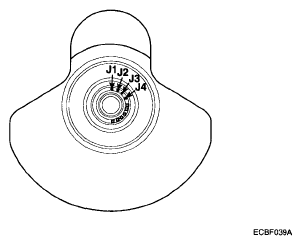

(2.8942-2.8944 in.)CRANKSHAFT JOURNAL MARK LOCATION
DISCRIMINATION OF CRANKSHAFT
DISCRIMINATION OF CRANKSHAFT

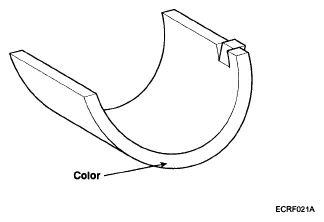

DISCRIMINATION OF CRANKSHAFTCLASS MARK OUTSIDE DIAMETER OF JOURNAL I 1 or A 68.954-68.960 mm (2.7147-2.7150 in.) II 2 or B 68.948-68.954 mm (2.7145-2.7147 in.) III 3 or C 68.942-68.948 mm (2.7142-2.7145 in.) PLACE OF IDENTIFICATION MARK (CRANKSHAFT BEARING)
DISCRIMINATION OF CRANKSHAFT BEARING
DISCRIMINATION OF CRANKSHAFT BEARINGCLASS MARK THICKNESS OF BEARING E BLUE 2.277-2.280 mm (0.0896-0.0897 in.) D BLACK 2.274-2.277 mm (0.0895-0.0896 in.) C BROWN 2.271-2.274 mm (0.0894-0.0895 in.) B GREEN 2.268-2.271 mm (0.0893-0.0894 in.) A YELLOW 2.265-2.268 mm (0.0892-0.0893 in.) SELECTION
CRANKSHAFT BORE IDENTIFICATION MARK REFERENCECRANKSHAFT BORE IDENTIFICATION MARK a (A) b (B) c (C) CRANKSHAFT IDENTIFICATION MARK 1 or A A (YELLOW) B (GREEN) C (BROWN) 2 or B B (GREEN) C (BROWN) D (BLACK) 3 or C C (BROWN) D (BLACK) E (BLUE) - Check crankshaft end play.
Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.
Standard end play
0.10-0.28 mm (0.0039-0.0110 in.)
If the end play is greater than maximum, replace the thrust bearings as a set.
Thrust bearing thickness
2.41-2.45 mm (0.0949-0.0964 in.)

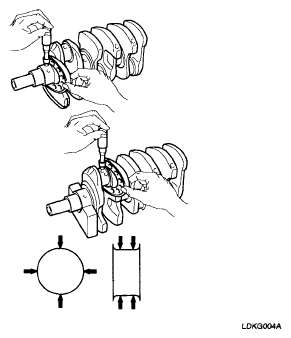

- Inspect main journals and crank pins
Using a micrometer, measure the diameter of each main journal and crank p in.
Main journal diameter: 68.942-68.960 mm (2.7142-2.7149 in.)
Crank pin diameter: 54.954-54.972 mm (2.1635-2.1642 in.)
