Power Sliding Door Drive Unit: Replacement

Disconnect the negative (-) battery terminal.
Remove the rear trim panel (Refer to INTERIOR TRIM )
Disconnect the connectors (6EA) from the power sliding door drive unit.
Remove the rear combination lamp (Refer to REAR BUMPER )
Remove the mounting bolts (4EA) and rail cover (A).

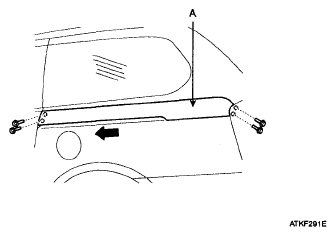

Fig 1: Identifying Rail Cover
Courtesy of KIA MOTORS AMERICA, INC.
Pull the rear cable (A) and draw the cable clip (B) to bottom of roller hinge post and then remove the rear cable (A).

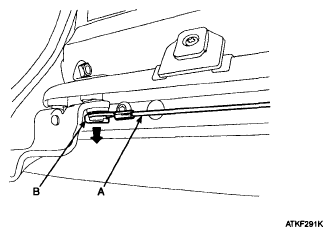

Fig 2: Identifying Rear Cable And Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roller hinge bracket assembly (A) as below.

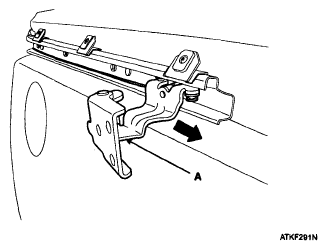

Fig 3: Identifying Roller Hinge Bracket Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front cable (A) from center roller hinge (B).

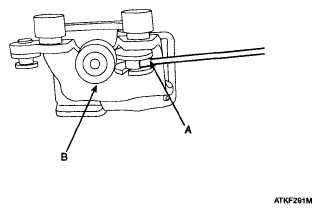

Fig 4: Identifying Front Cable And Center Roller Hinge
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolts (2EA) and remove the rear pulley bracket (A). And then remove the front pulley bracket (B) after loosening the mounting bolts (2EA) and nut (1EA).
TORQUE: 0.07 - 0.11N.m (0.007 - 0.011 kg.m)

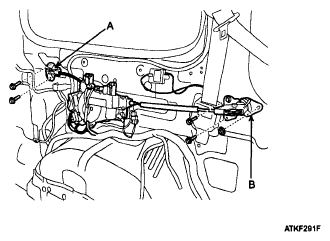

Fig 5: Identifying Rear And Front Pulley Brackets
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolt (1EA) and nuts (2EA). And then remove the power sliding door drive unit assembly after removing the front cable.
TORQUE: 0.07 - 0.11N.m (0.007 - 0.011 kg.m)
Installation is the reverse of removal.
When installation, check the grease on the center roller hinge barrel and club contact part (A).

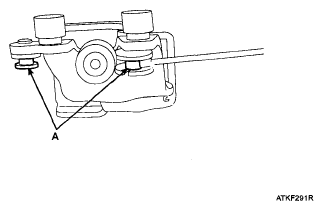

Fig 6: Identifying Center Roller Hinge Barrel And Club Contact Part
Courtesy of KIA MOTORS AMERICA, INC.
WARNING:
- A learn cycle must be performed whenever the power is removed.
- Check the normal operation whenever a power sliding door component is removed or replaced. If the chime sound is heard, check the DTC, wiring harness and cable connections.
