Home >> Kia >> 2006 >> Rio Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul - M/T >> Manual Transaxle System >> Output Shaft >> Components

Output Shaft: Components

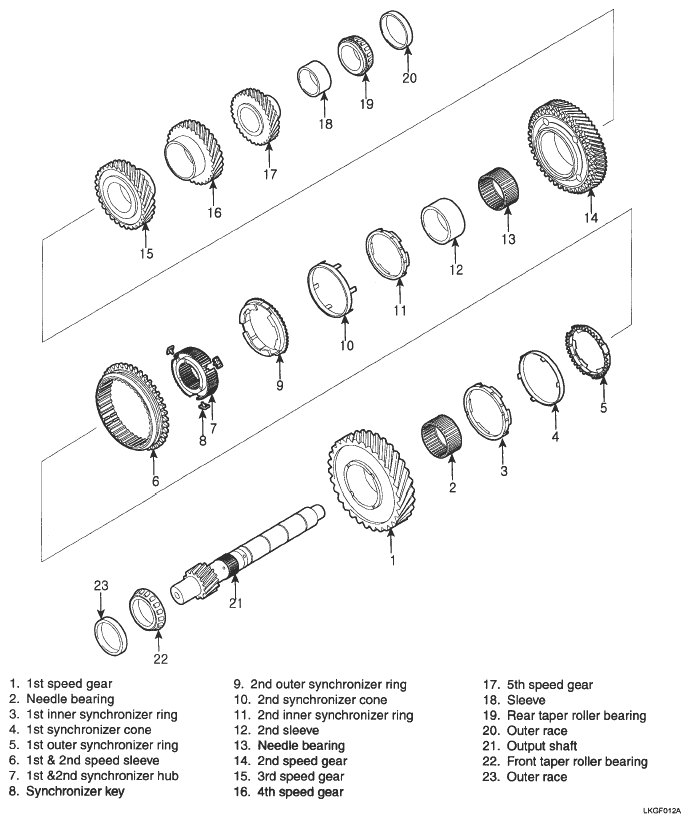

Fig 1: Exploded View Of Output Shaft Components

G04864860

Courtesy of KIA MOTORS AMERICA, INC.
