Manual Transaxle System
>>
Manual Transaxle
>>
Components
Manual Transaxle: Components

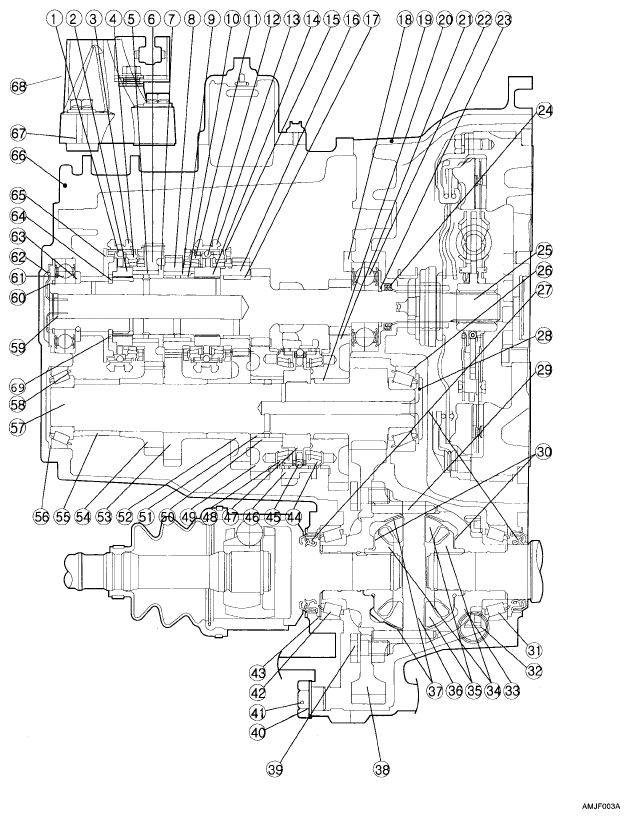

Fig 1: Manual Transaxle System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

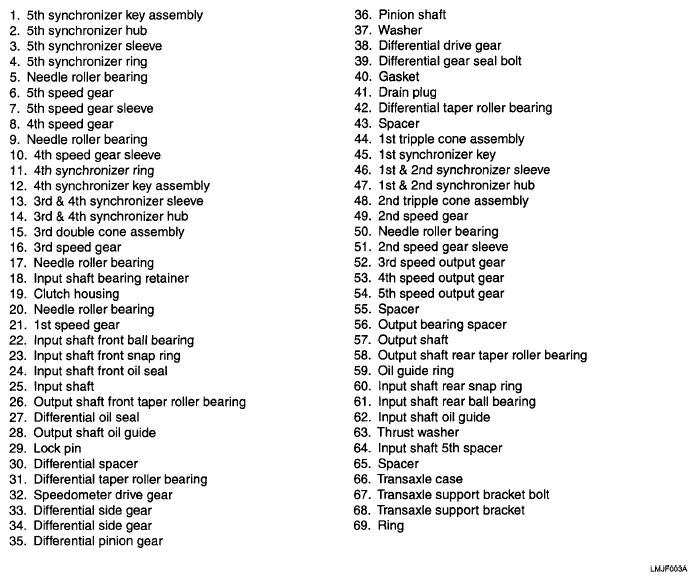

Fig 2: Manual Transaxle System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

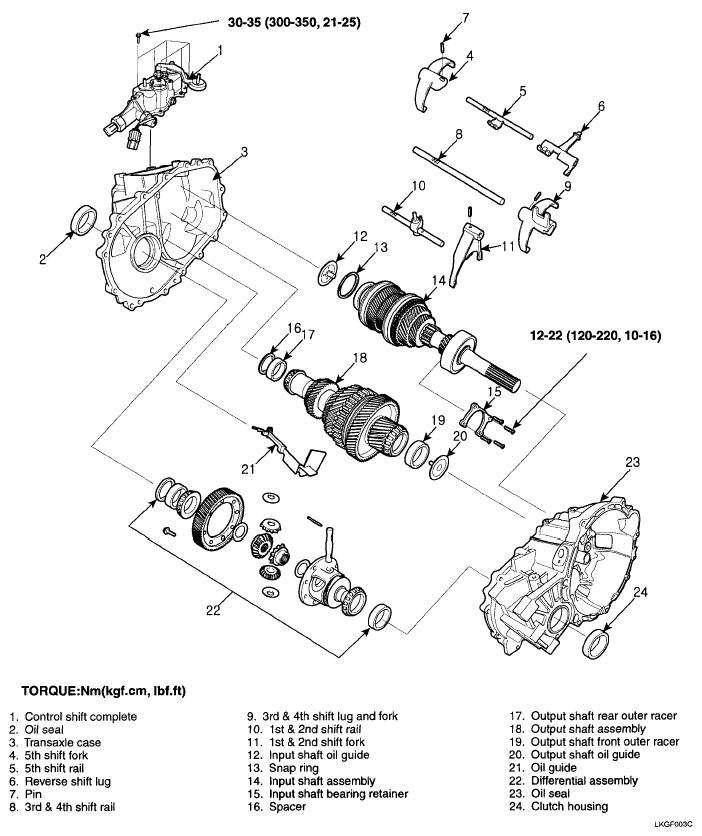

Fig 3: Manual Transaxle System Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
