Kia
>>
2006
>>
Rio Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Troubleshooting
>>
Chart 4
Chart 4
Fig 1: Troubleshooting Flow Chart - Radio
Courtesy of KIA MOTORS AMERICA, INC.

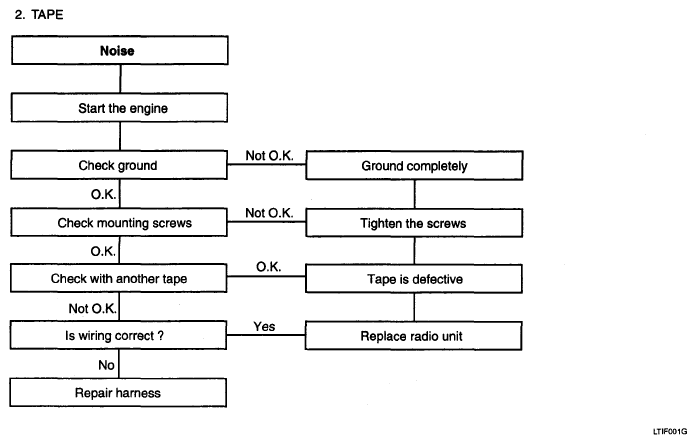

Fig 2: Troubleshooting Chart - Tape
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
