WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

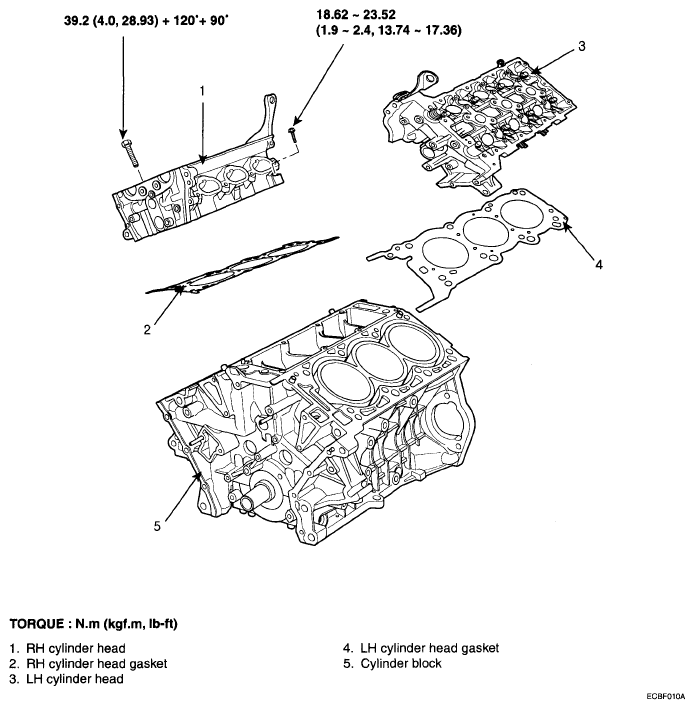

Fig 1: Cylinder Head Assembly Replacement Components With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

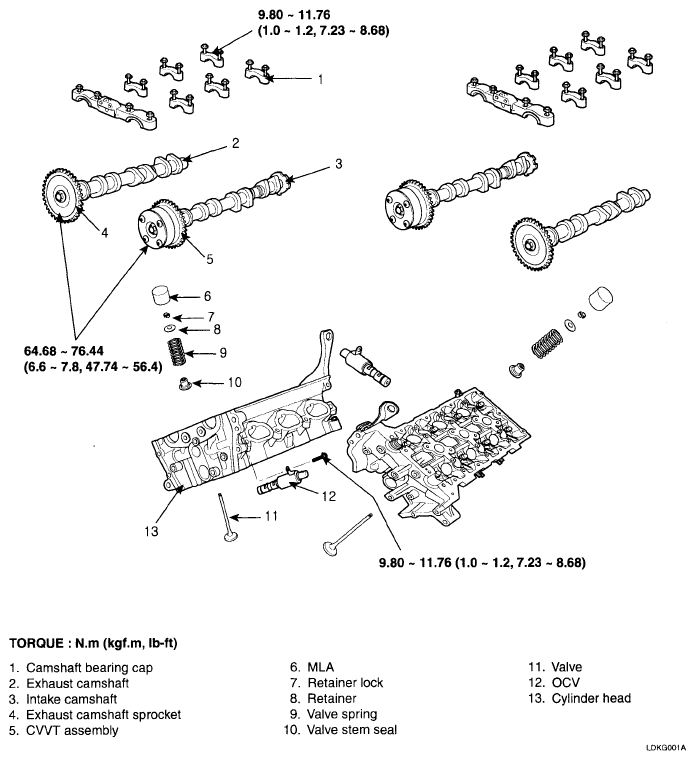

Fig 2: Cylinder Head Assembly Replacement Components With Torque Specifications (2 Of 2)
