Manual Transaxle: Installation

  1. Raising the jack slowly, tighten the transaxle mounting bolts (A) and support bracket mounting bolts (B).

    TORQUE: 42.2-53.9 N.m (430-550 kgf.cm, 31.1-39.8 lb-ft) (Support bracket mounting)

    59.2-78.9 N.m (600-800 kgf.cm, 43.6-58.2 lb-ft) (Transaxle mounting bracket)

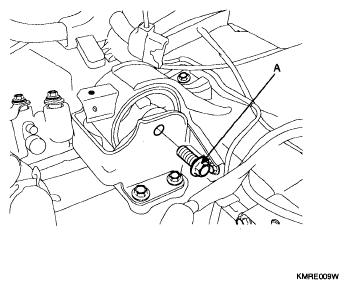

    Fig 1: Identifying Transaxle Support Bracket
    G04805033Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Upper Mounting Bolts
    G04805034Courtesy of KIA MOTORS AMERICA, INC.
  2. Tighten the transaxle lower mounting bolts.
  3. Install the driveshafts (refer to DRIVESHAFT article ).
  4. Lifting the cross member up with the jack slowly, tighten the mounting bolts.

    TORQUE: 137.3-156.9 N.m (1400-1600 kgf.cm, 101.3-115.7 lb-ft) (Front mounting) (A)

    Fig 3: Identifying Transaxle Front Mounting Bolts
    G04805037Courtesy of KIA MOTORS AMERICA, INC.

    TORQUE: 137.3-156.9 N.m (1400-1600 kgf.cm, 101.3-115.7 lb-ft) (Rear mounting) (B)

    44.1-58.8 N.m (450-600 kgf.cm, 32.5-43.4 lb-ft) (Stay mounting) (C)

    Fig 4: Identifying Transaxle Rear Mounting Bolts
    G04805038Courtesy of KIA MOTORS AMERICA, INC.
  5. Tighten the steering column bolt.

    TORQUE: 17.7-24.5 N.m (180-250 kgf.cm, 13.0-18.1 lb-ft)

  6. Assembling the exhaust pipe, connect the hanger and oxygen sensor connector.
  7. Fix the front/rear roll stopper (A) to brackets (B) with the mounting bolts.

    TORQUE: 49.0-63.7 N.m (500-650 kgf.cm, 36.2-47.0 lb-ft)

    Fig 5: Identifying Bracket From Front Roll Stopper
    G04805024Courtesy of KIA MOTORS AMERICA, INC.
    Fig 6: Identifying Bracket From Rear Roll Stopper
    G04805025Courtesy of KIA MOTORS AMERICA, INC.
  8. Inserting the power steering return hose (A), fix it with a clamp (B).
    Fig 7: Identifying Power Steering Return Hose And Clamp
    G04803593Courtesy of KIA MOTORS AMERICA, INC.
  9. Tightening the steering bar tie rod mounting nut, insert a new split pin. (refer to appropriate STEERING article ).

    TORQUE: 23.5-33.3 N.m (240-340 kgf.cm, 17.4-24.6 lb-ft)

  10. Tighten the stabilizer bar link mounting bolt. (refer to appropriate SUSPENSION article ).

    TORQUE: 98.1-117.7 N.m (1000-1200 kgf.cm, 72.3-86.8 lb-ft)

  11. Fix the lower arm ball joint assembly to the front axle. (refer to appropriate SUSPENSION article ).

    TORQUE: 98.1-117.7 N.m (1000-1200 kgf.cm, 72.3-86.8 lb-ft)

  12. Connect the electronic power steering connector.
  13. After tightening the transaxle drain plug and filling the manual transaxle fluid, tighten the oil filler plug.

    TORQUE: 29.4-34.3 N.m (300-350 kgf.cm, 21.7-25.3 lb-ft)

    Manual transaxle fluid: SAE 75W/85

  14. Install the under shield cover (A).
    Fig 8: Identifying Under Shield Cover
    G04805021Courtesy of KIA MOTORS AMERICA, INC.

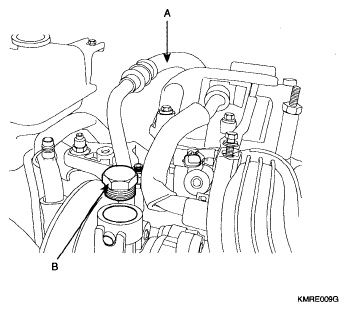

  15. After tightening the power steering pressure hose (A) bolt (B), fill the power steering fluid. (Refer to appropriate STEERING article )

    TORQUE: 63.7-73.5 N.m (650-750 kgf.cm, 47.0-54.2 lb-ft)

    Fig 9: Identifying Power Steering Pressure Hose And Bolt
    G04805019Courtesy of KIA MOTORS AMERICA, INC.
  16. Install a clip on the concentric slave cylinder tube and push it till a 'click' sound is heard. Loosen the clamp.

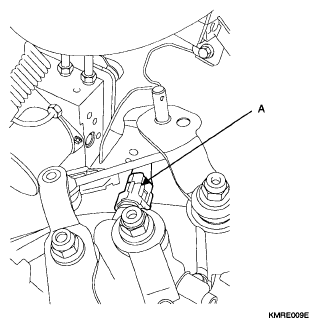

  17. Tighten the back up lamp switch (A).
    Fig 10: Identifying Back Up Lamp Switch Connector
    G04805008Courtesy of KIA MOTORS AMERICA, INC.
  18. Install the shift cable assembly (A).
    Fig 11: Identifying Shift Cable Assembly
    G04805016Courtesy of KIA MOTORS AMERICA, INC.
  19. Fix the vehicle speed sensor and the ground line.
  20. Install the ground circuit line (A) from the transaxle.
    Fig 12: Identifying Ground Circuit Line From Transaxle
    G04805015Courtesy of KIA MOTORS AMERICA, INC.
  21. Install the battery tray (A).
    Fig 13: Identifying Battery Tray
    G04805014Courtesy of KIA MOTORS AMERICA, INC.

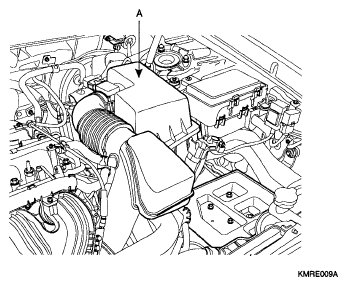

  22. Install the air cleaner assembly (A).
    Fig 14: Identifying Air Cleaner Assembly
    G04805013Courtesy of KIA MOTORS AMERICA, INC.

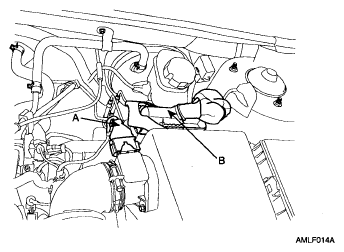

  23. Install the air flow sensor (AFS) connector (A) and ECU connector (B).
    Fig 15: Identifying Air AFS Connector And ECU Connector
    G04805012Courtesy of KIA MOTORS AMERICA, INC.

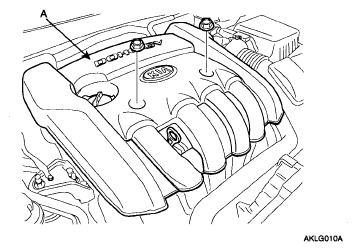

  24. Install the engine cover (A).
    Fig 16: Identifying Engine Cover
    G04805011Courtesy of KIA MOTORS AMERICA, INC.
  25. Install the battery (A).
    Fig 17: Identifying Battery
    G04805010Courtesy of KIA MOTORS AMERICA, INC.
