Brake Control Brake Actuator: Components

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

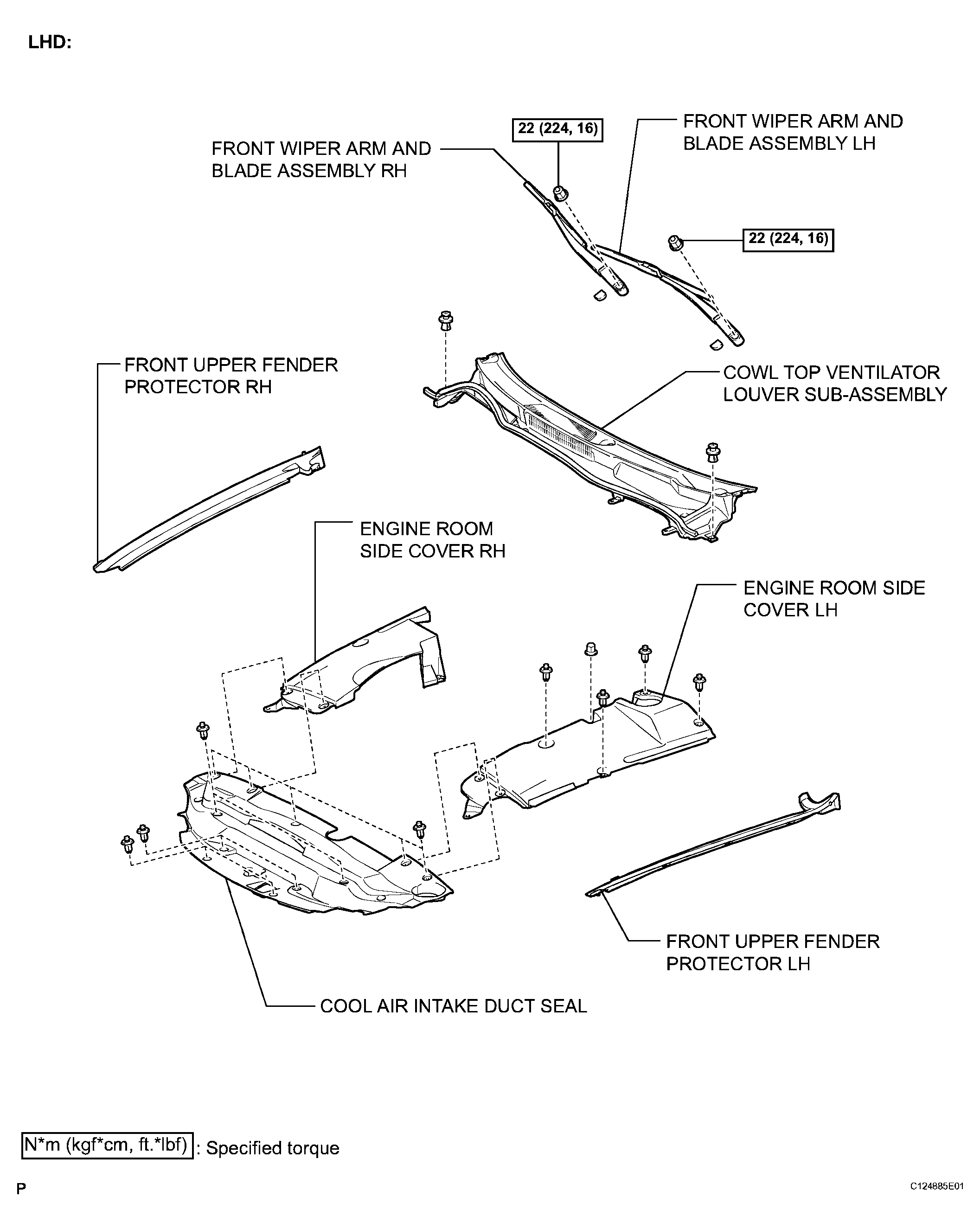

Fig 1: Brake Control Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G04052180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

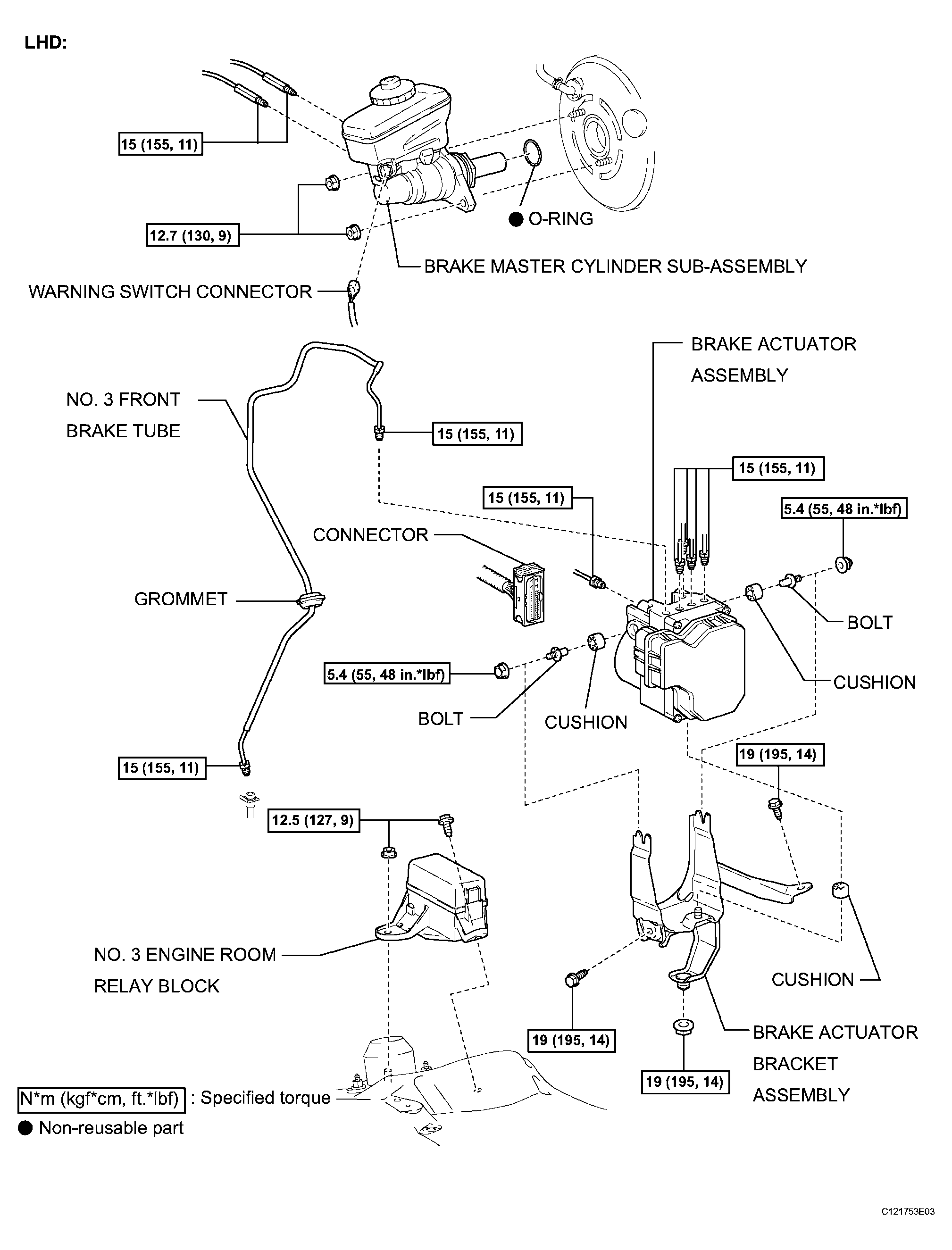

Fig 2: Brake Control Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
G04052181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
