Component Inspection

CHECK SOLENOID VALVE
1. Ignition "OFF".
2. Disconnect "A/T SOLENOID VALVE" connector.
3. Measure resistance between terminal "6" and terminal "11" of the ATM SOLENOID VALVE harness connector.
  Specification: Approximately 2.7~3.4 Ω [20°C (68°F)]

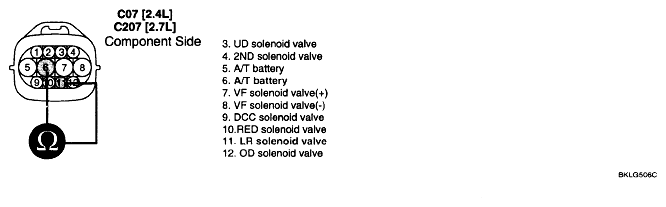

  Fig 1: Measuring Resistance Between Terminal 6 And 11 Of ATM Solenoid Valve Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is resistance within specification?
  YES : --> Go to 2 "CHECK PCM/TCM" as below.

  NO : --> Replace LR SOLENOID VALVE as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
CHECK PCM/TCM
1. Connect scantool to data link connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select A/T solenoid valve actuator test and operate actuator test.
4. Can you hear operating sound for LR SOLENOID VALVE actuator testing function?
  YES : --> Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO : --> Replace PCM/TCM as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  ACTUATOR TEST CONDITION
  1. IG SWITCH ON
  2. TRANSAXLE RANGE SWITCH is normal
  3. P RANGE
  4. Vehicle Speed 0mph (0km/h)
  5. Throttle position sensor < 1V
  6. IDLE SWITCH ON
  7. ENGINE RPM 0
