Vehicles With Transaxle Control Unit (TCU) (Vehicles With Automatic Transaxle) (VIN 6)

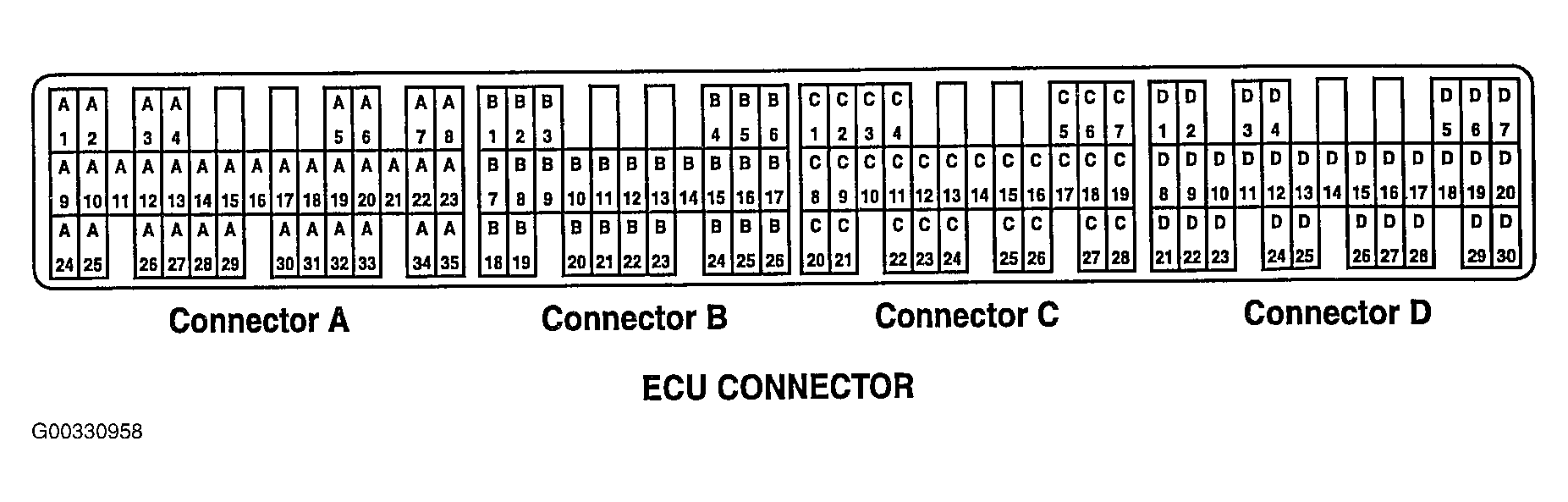

Fig 1: Identifying Engine Control Unit (ECU) Terminal Layout - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Automatic Transaxle)
G00330958Courtesy of KIA MOTORS AMERICA, INC.
