Stereo Component Amplifier: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
  2. INSTALL NO. 2 AMPLIFIER BRACKET
    1. Install the No. 2 amplifier bracket with the 2 bolts.

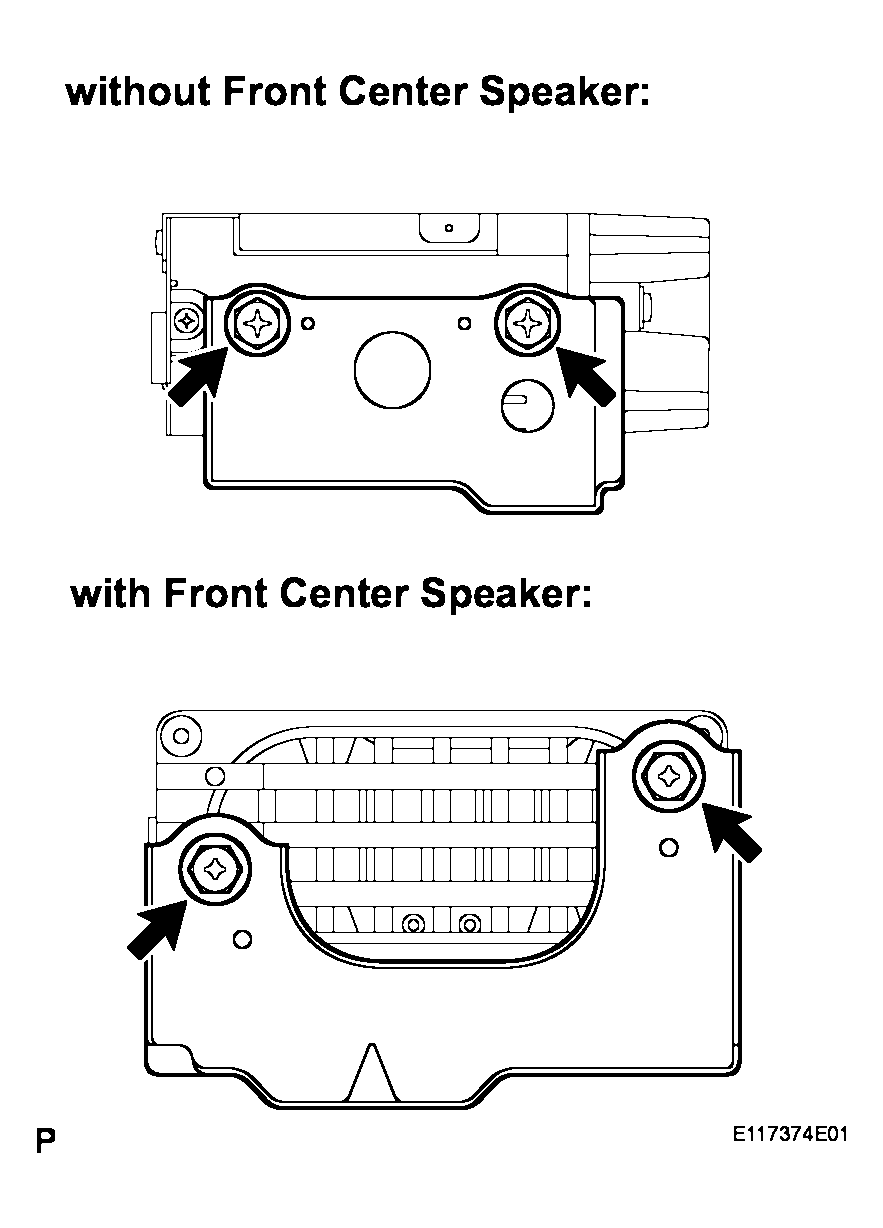

    Fig 1: Identifying No. 2 Amplifier Bracket With Bolts
    G04050209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 AMPLIFIER BRACKET
    1. Install the No. 1 amplifier bracket with the 2 bolts.

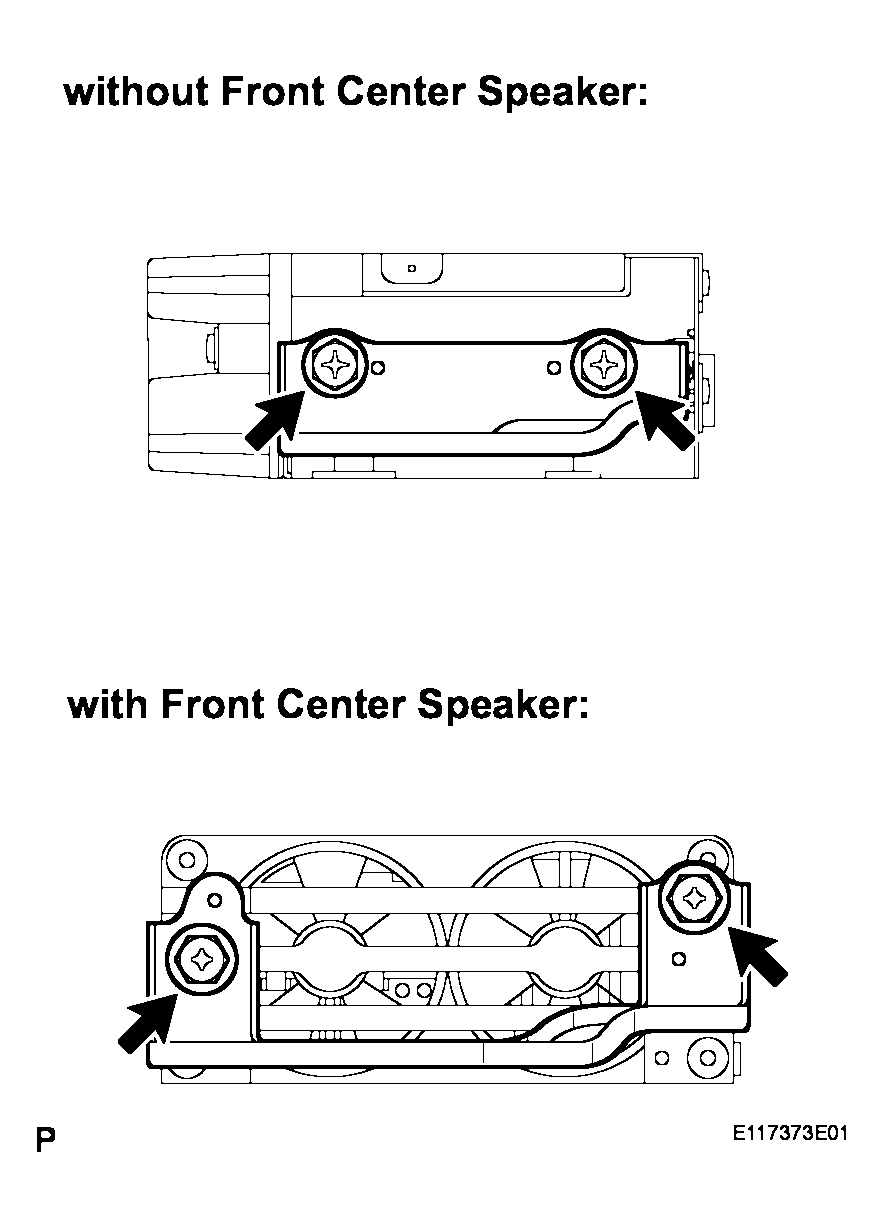

    Fig 2: Identifying No. 1 Amplifier Bracket With Bolts
    G04050210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Install the amplifier cover with the 2 clips.

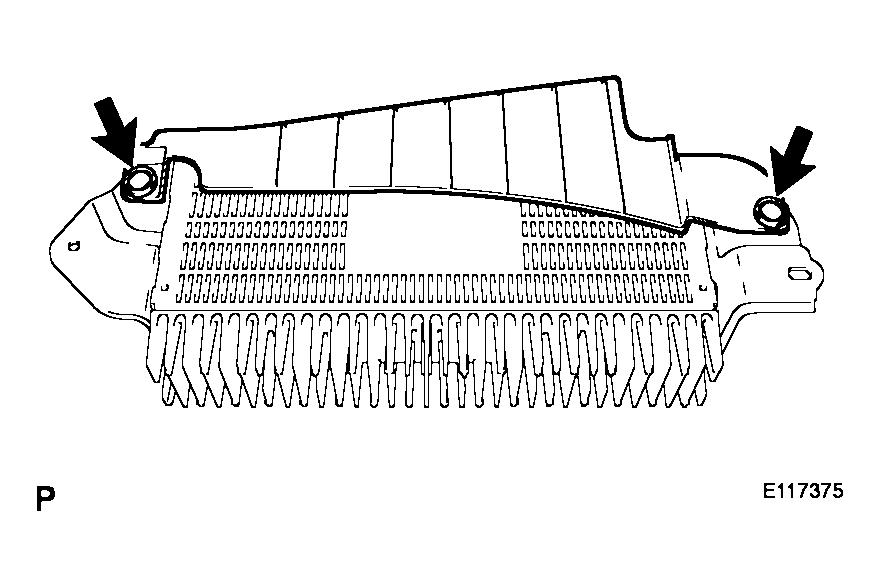

      Fig 3: Identifying Amplifier Cover With Clips
      G04050211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the stereo component amplifier assembly with bracket with the 2 nuts.
    3. Connect the connectors.
  5. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
  6. INSTALL LUGGAGE COMPARTMENT TRIM HOOK
  7. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
  8. INSTALL ROPE HOOK
  9. INSTALL ROOM LIGHT ASSEMBLY
  10. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
  11. INSTALL ROPE HOOK ASSEMBLY
  12. INSTALL DECK SIDE TRIM BOX LH
  13. INSTALL DECK SIDE TRIM BOX RH
  14. INSTALL LUGGAGE COMPARTMENT TRIM COVER

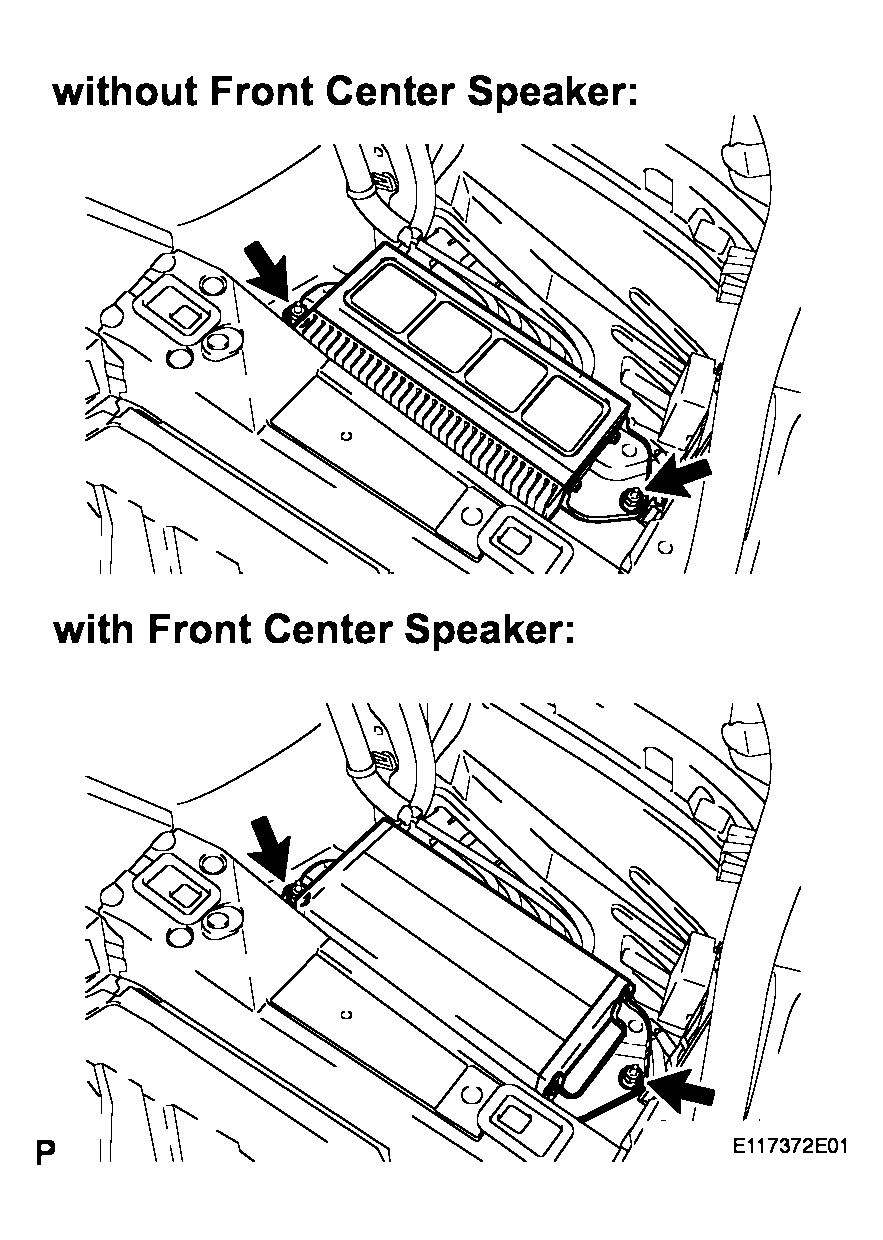

    Fig 4: Identifying Stereo Component Amplifier Assembly With Bracket And Nuts
    G04050212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
