Headlight Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Discharge Headlight)
  2. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  3. REMOVE FRONT BUMPER ASSEMBLY (See  REMOVAL  )
  4. REMOVE FRONT BUMPER ENERGY ABSORBER (See  DISASSEMBLY  )
  5. REMOVE ENGINE ROOM SIDE COVER
    1. Using a clip remover, remove the 4 clips.
    2. Disengage the nut and remove the engine room side cover.

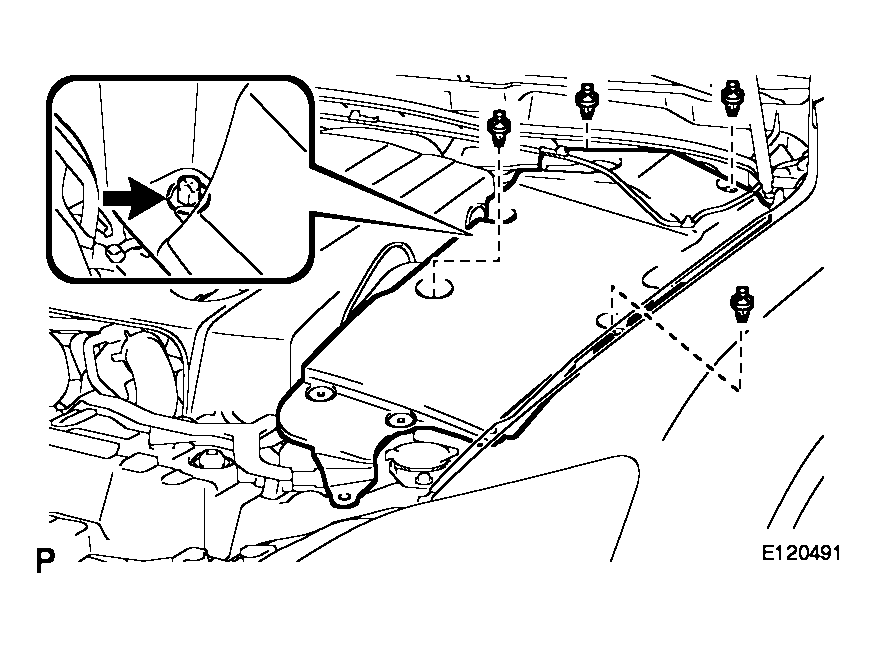

    Fig 1: Identifying Engine Room Side Cover And Nuts
    G04049484Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  6. REMOVE FRONT UPPER FENDER PROTECTOR
    1. Disengage the 2 claws and 3 clips and remove the front upper fender protector.

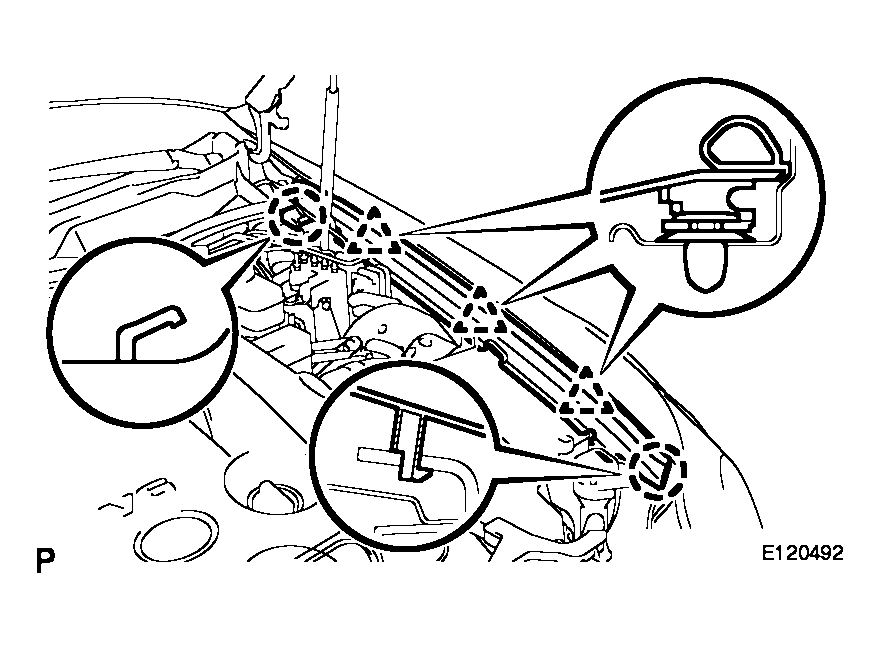

    Fig 2: Identifying Front Upper Fender Protector
    G04049485Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  7. REMOVE HEADLIGHT ASSEMBLY
    1. Disconnect the connector as shown in the illustration.

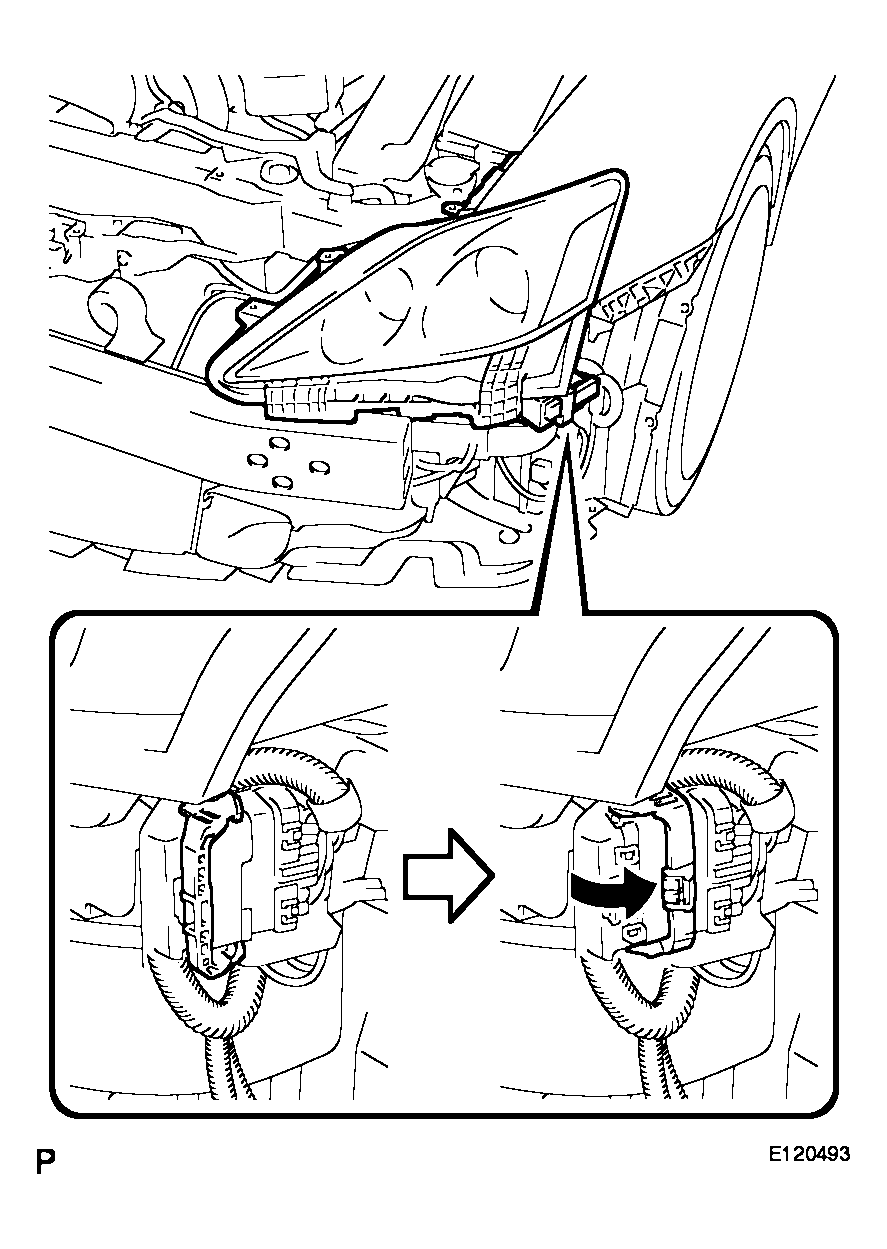

      Fig 3: Identifying Headlight Assembly Connectors
      G04049486Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Remove the 3 bolts.
    3. Disengage the headlight bracket pin and remove the headlight assembly.

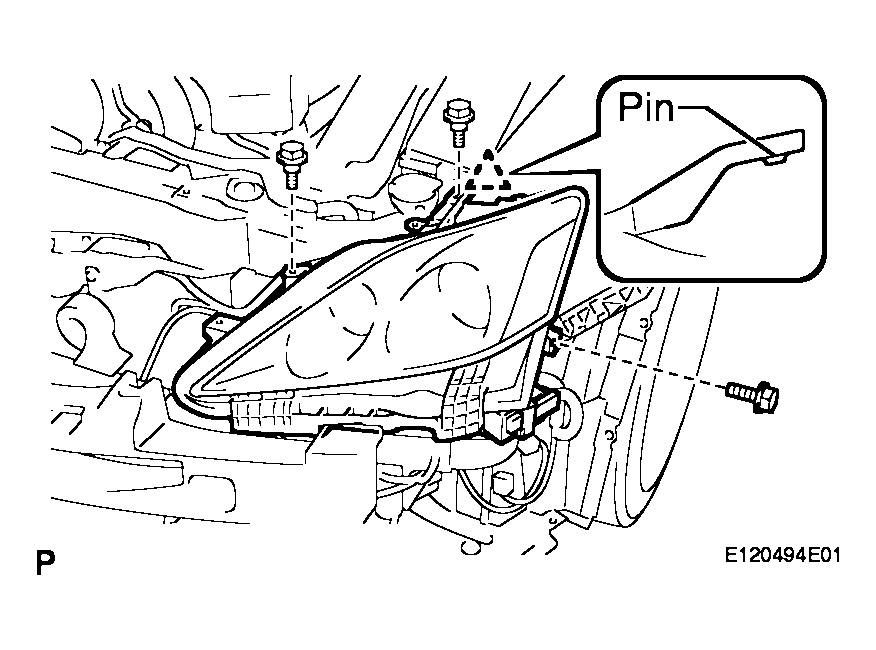

    Fig 4: Identifying Headlight Bracket Pin
    G04049487Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
