FOOTWELL Light: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH
    1. Install the No. 1 interior illumination light assembly RH.
  2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
    Fig 1: Identifying No. 1 Interior Illumination Light Assembly Rh
    G04049602Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH
    1. Install the No. 1 interior illumination light assembly LH.
  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )

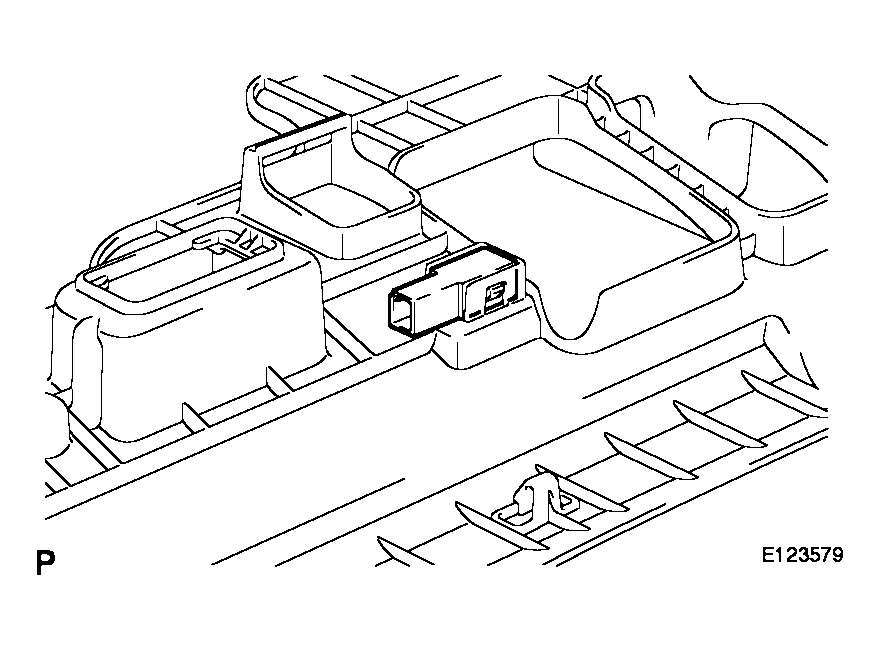

    Fig 2: Identifying No. 1 Interior Illumination Light Assembly LH
    G04049603Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
