Circuit Diagram
Circuit Diagram

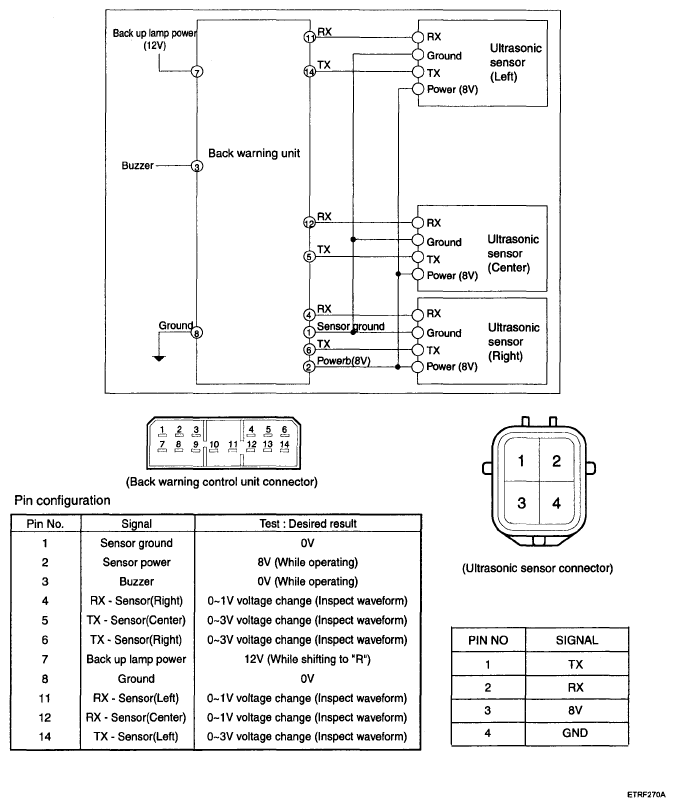

Fig 1: Back Warning System - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
