Module Assembly Replacement

  1. Remove the REAR DOOR TRIM .
  2. Remove the GLASS .
  3. After loosening the door module mounting bolts, remove the door module (A).

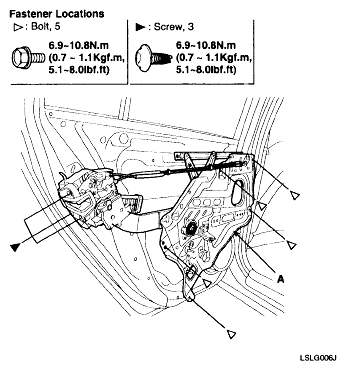

    Fig 1: Door Module And Torque Specifications
    G04806053Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly and each rod is connected securely.
    • Make sure the door locks and opens properly.
