UNDERDRIVE Clutch: Disassembly

  1. Remove the input shaft snap ring.
    Fig 1: Removing Input Shaft Snap Ring
    G03877249Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the input shaft.
  3. Remove seal rings(two).
  4. Remove the clutch reaction plate snap ring.
  5. Disconnect the clutch reaction plate.
  6. Disassemble the clutch disce (four) and plates (four).
  7. Remove the under clutch piston snap ring using the special tool(09453 - 21000).

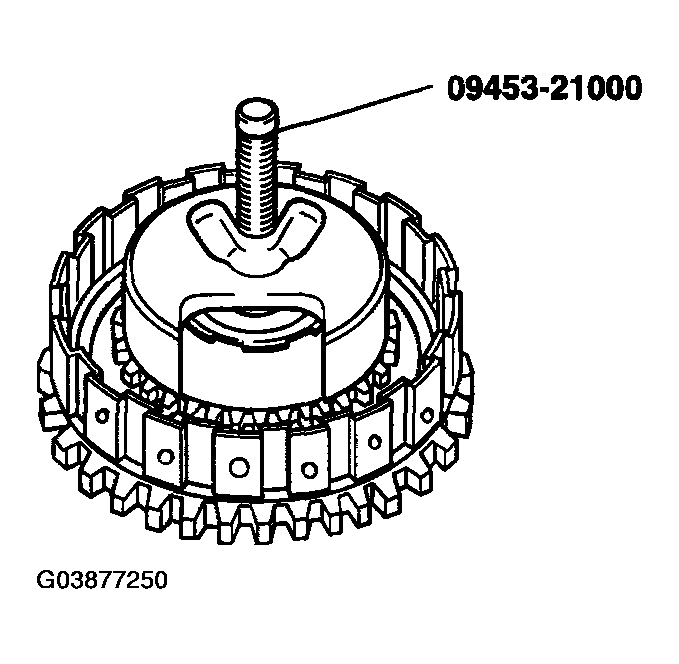

    Fig 2: Removing Under Clutch Piston Snap Ring Using Special Tool
    G03877250Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the clutch spring retainer.
  9. Remove the O-ring.
  10. Remove the clutch return spring.
  11. Remove the under clutch piston using compressed air.
  12. Remove the O-rings(two).
