Home >> Kia >> 2006 >> Amanti >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Reverse And Overdrive Clutch >> Components

Reverse And Overdrive Clutch: Components

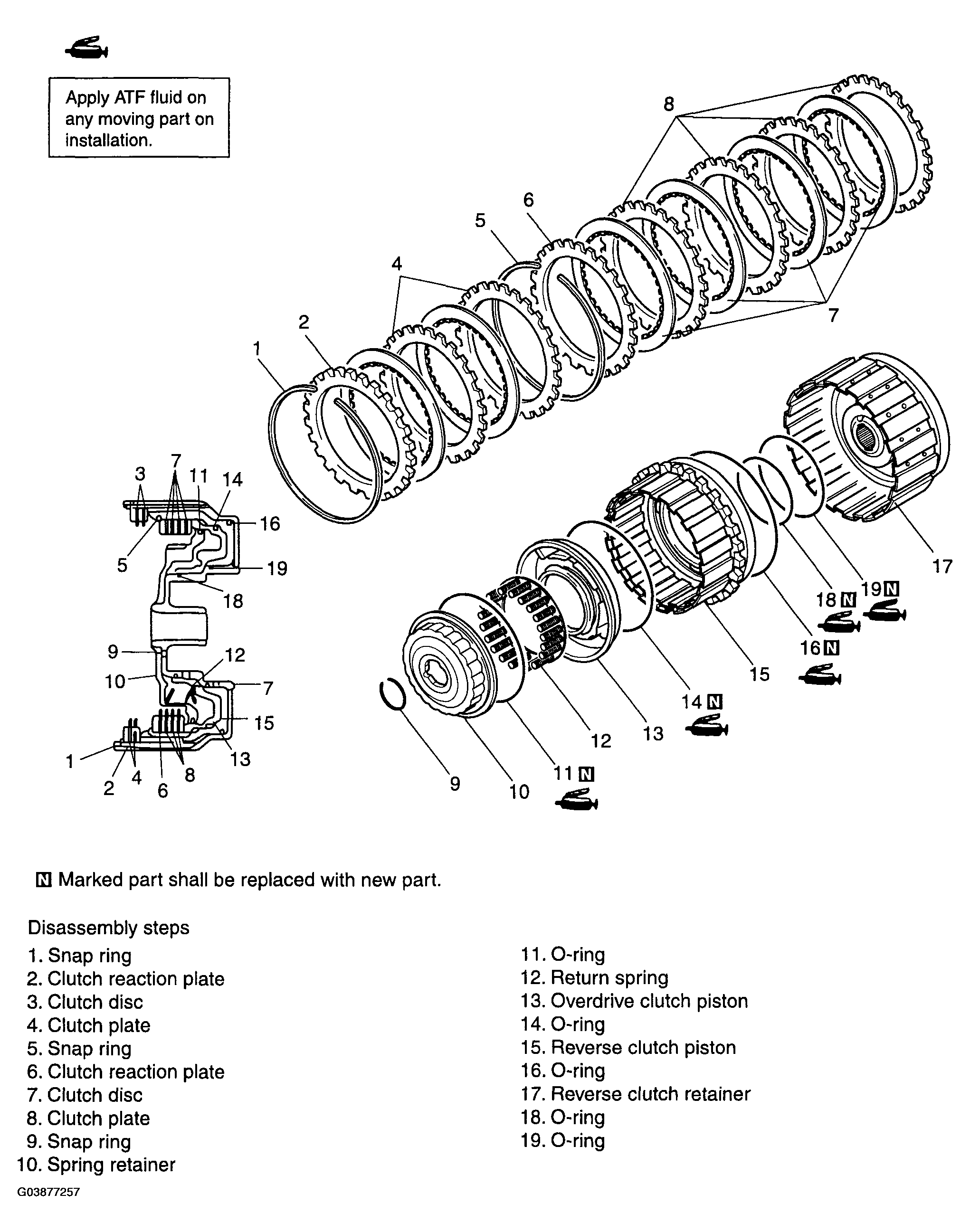

Fig 1: Exploded View Of Reverse And Overdrive Clutch Components

G03877257

Courtesy of KIA MOTORS AMERICA, INC.
