Oil Pump (A/T): Components

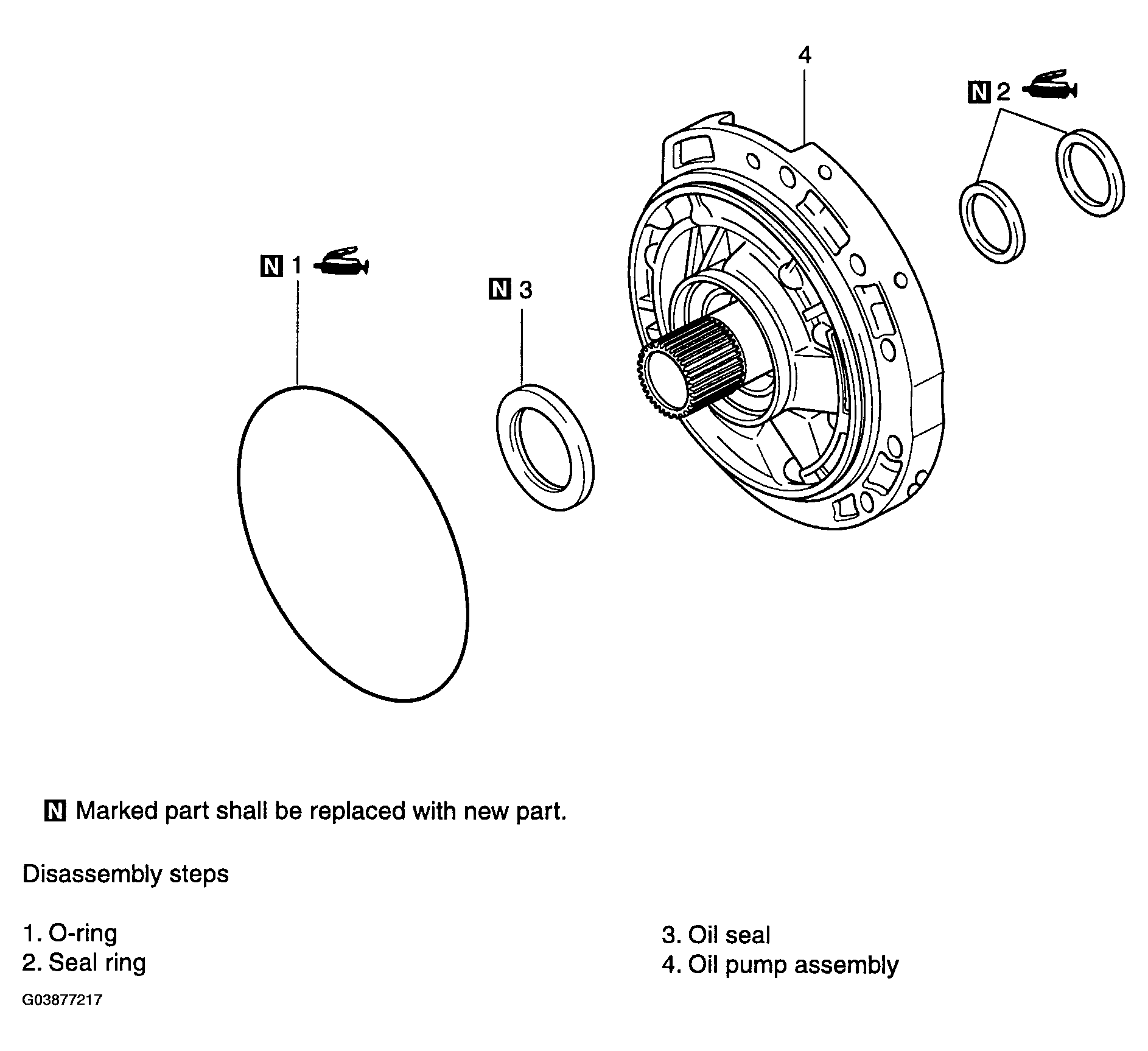

Fig 1: Locating Oil Pump (A/T) Components

G03877217

Courtesy of KIA MOTORS AMERICA, INC.
