Crankcase Emission Control (PCV) System: Operation

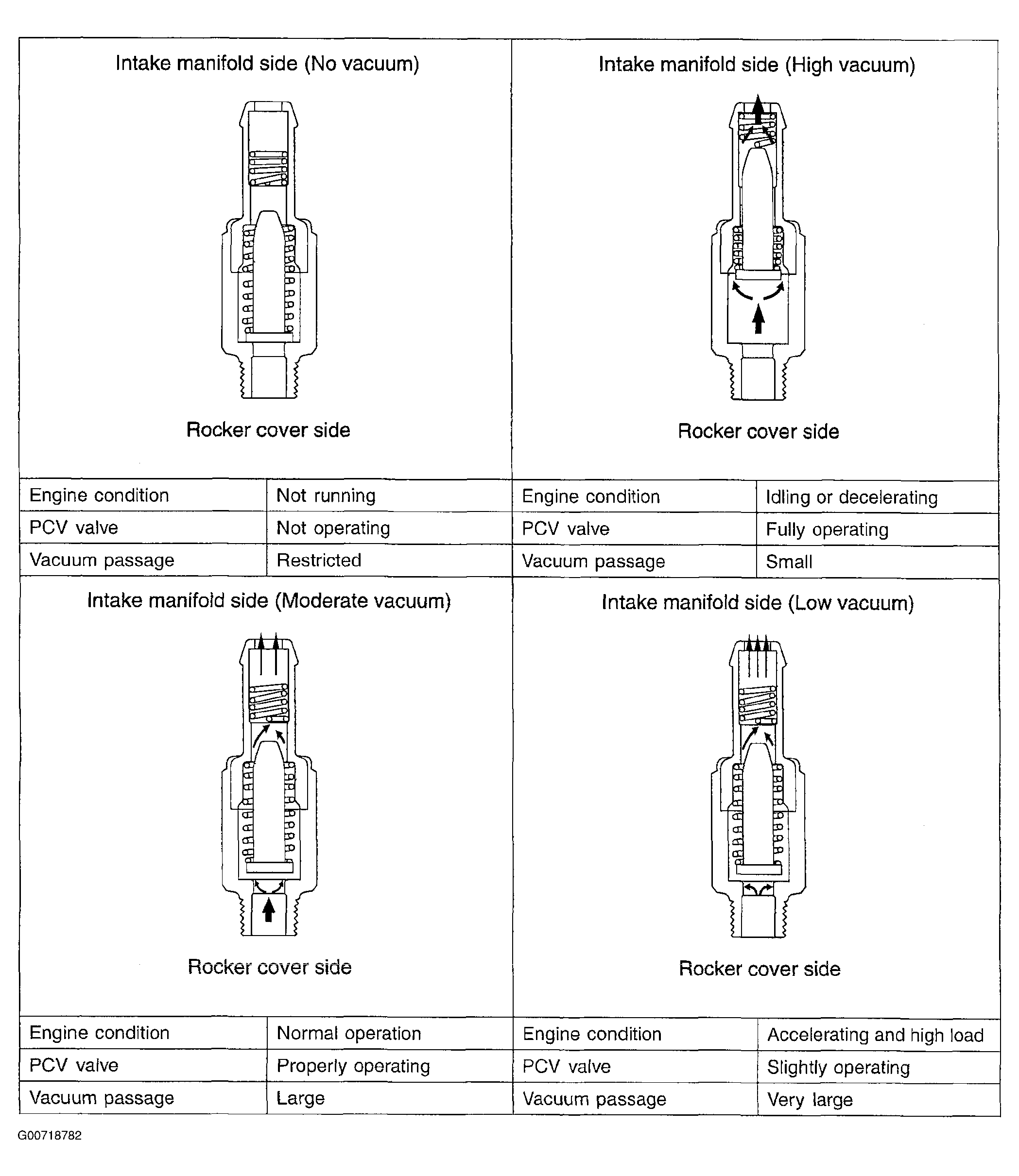

Fig 1: Illustrating PCV Operation

G00718782

Courtesy of KIA MOTORS AMERICA, INC.
