Power Door Mirror Switch: Inspection

  1. Remove the power door mirror switch from the door trim panel.
    Fig 1: Illustrating Power Door Mirror Switch Connector
    G01954240Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals in each switch position according to the table.

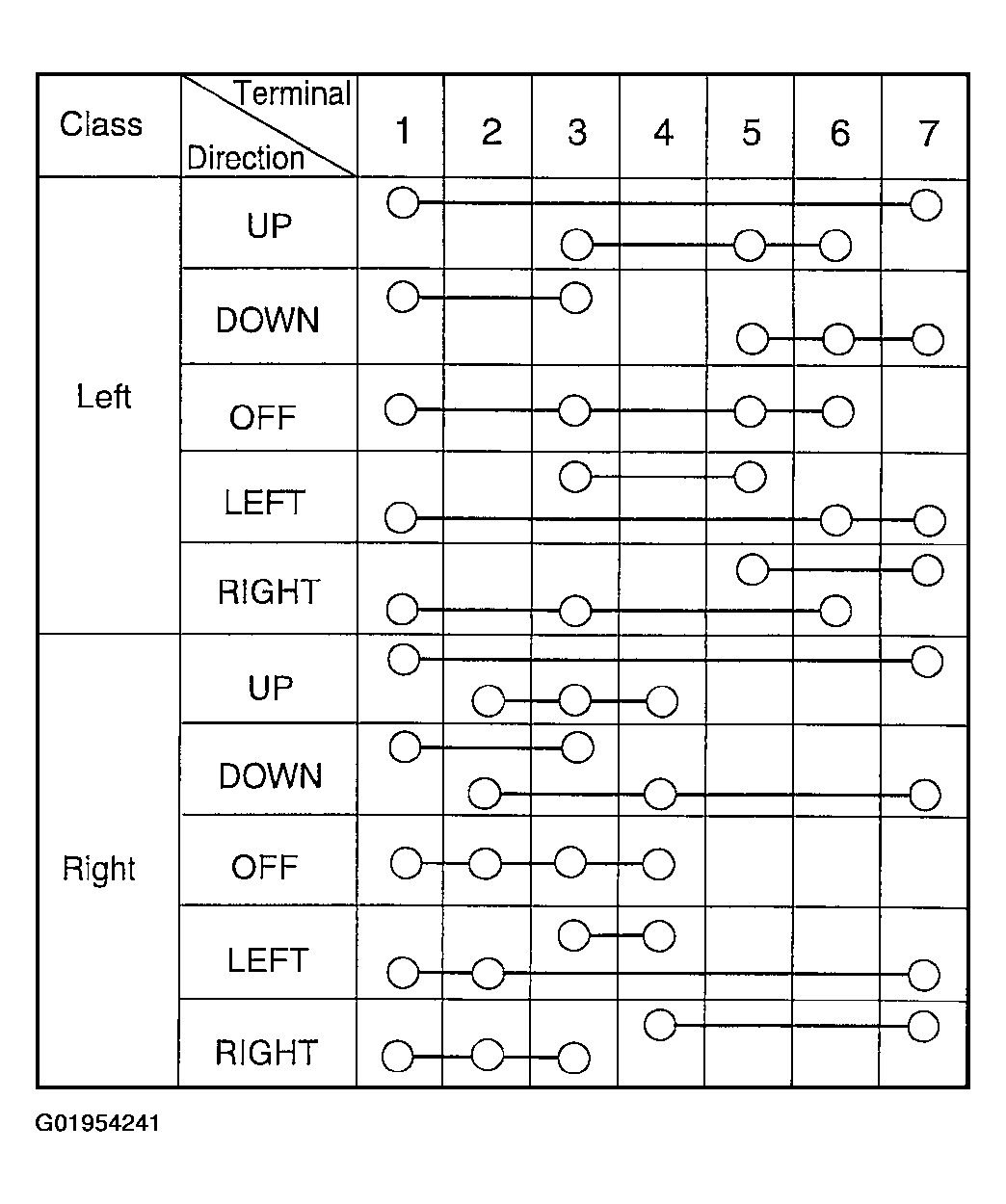

    Fig 2: Power Door Mirror Switch Testing Continuity Chart
    G01954241Courtesy of KIA MOTORS AMERICA, INC.
