Inspection Procedure

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. See CONNECTOR INSPECTION PROCEDURE .

Are all connectors good?

1. Yes:  Go to next step.
2. No: Repair or replace it.

1. Turn ignition switch to OFF and disconnect CCV connector.
2. Measure resistance between the terminal 1 and 2 of CCV connector.

   Specification (CCV resistance): 23 ~ 26 Ω at 20°C (68°F)

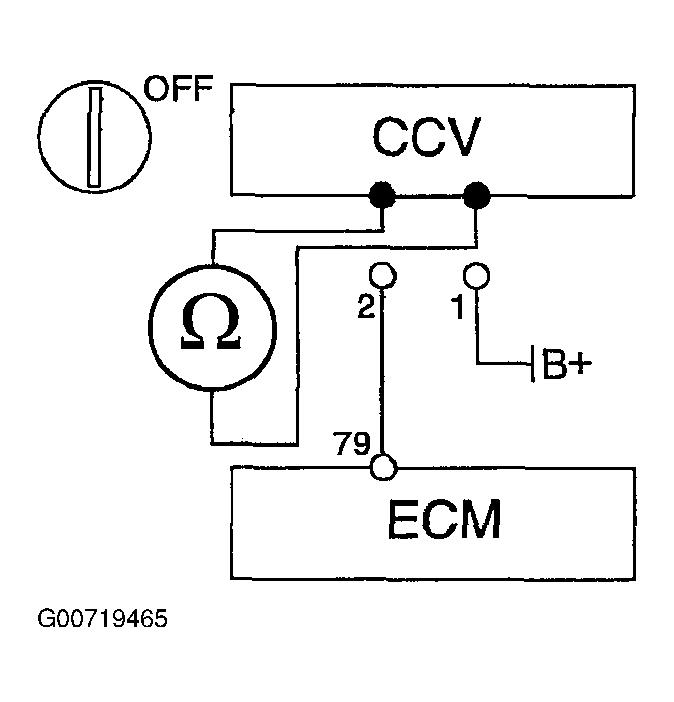

   Fig 1: Checking CCV Resistance

   Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specification?

1. Yes:  Go to next step.
2. No: Replace CCV.

1. Turn ignition switch to OFF position and disconnect CCV connector.
2. Turn ignition switch to ON position.
3. Measure voltage between terminal 1 of the CCV harness connector and chassis ground.

   Specification (Voltage): approximately B+

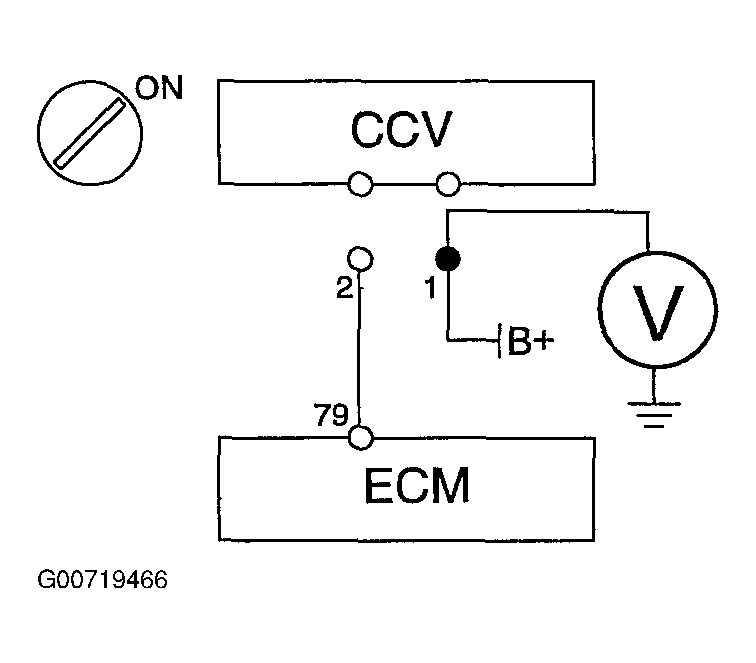

   Fig 2: Checking Power To CCV

   Courtesy of KIA MOTORS AMERICA, INC.

Is voltage within specification?

1. Yes:  Go to next step.
2. No: Repair open or short to chassis ground in harness.

1. Turn ignition switch to OFF position, and then disconnect CCV and ECM connectors.
2. Measure resistance between terminal 2 of the CCV harness connector and chassis ground.

   Specification (Resistance): infinite

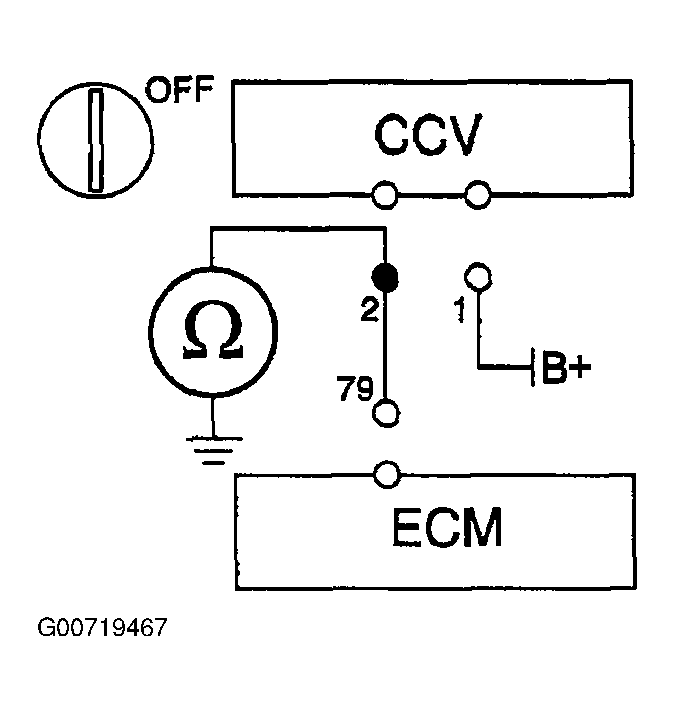

   Fig 3: Checking For Short To Ground In Harness

   Courtesy of KIA MOTORS AMERICA, INC.

Does each resistance indicate open?

1. Yes:  Go to next step.
2. No: Repair short or short to chassis ground in harness.

1. Turn ignition switch to OFF position, and then disconnect CCV and ECM connectors.
2. Turn ignition switch to ON position.
3. Measure voltage between terminal 2 of the CCV harness connector and chassis ground.

   Specification (Voltage): below 0.5V

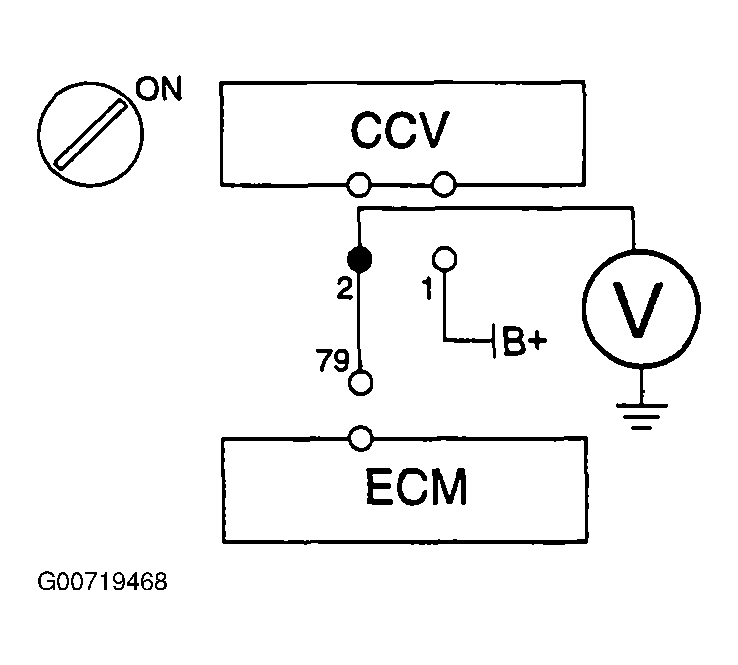

   Fig 4: Checking For Short To Power In Harness

   Courtesy of KIA MOTORS AMERICA, INC.

Is voltage within specification?

1. Yes:  Proceed with ECM PROBLEM INSPECTION PROCEDURE .
2. No: Repair short to power in harness.
