Input Shaft: Inspection: Gears

  1. Check the helical gear and clutch gear teeth for damage or wear.

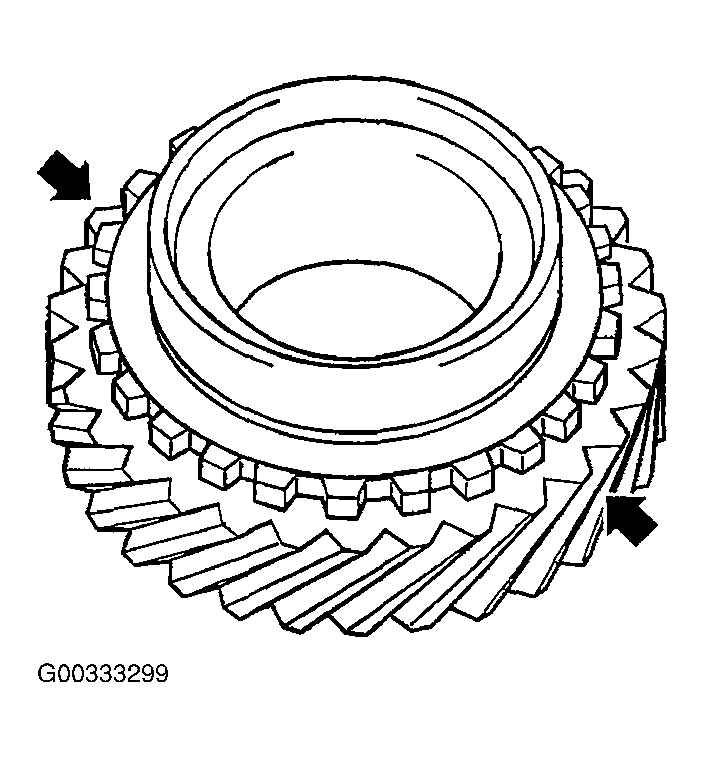

    Fig 1: Gear Inspection
    G00333299Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the gear cone for rough surfaces, damage or wear.
  3. Check the gear bore for damage or wear.
