Home >> Kia >> 2005 >> Spectra EX, 2.0 1, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Manual Transaxle System >> Shift Forks >> Components

Shift Forks: Components

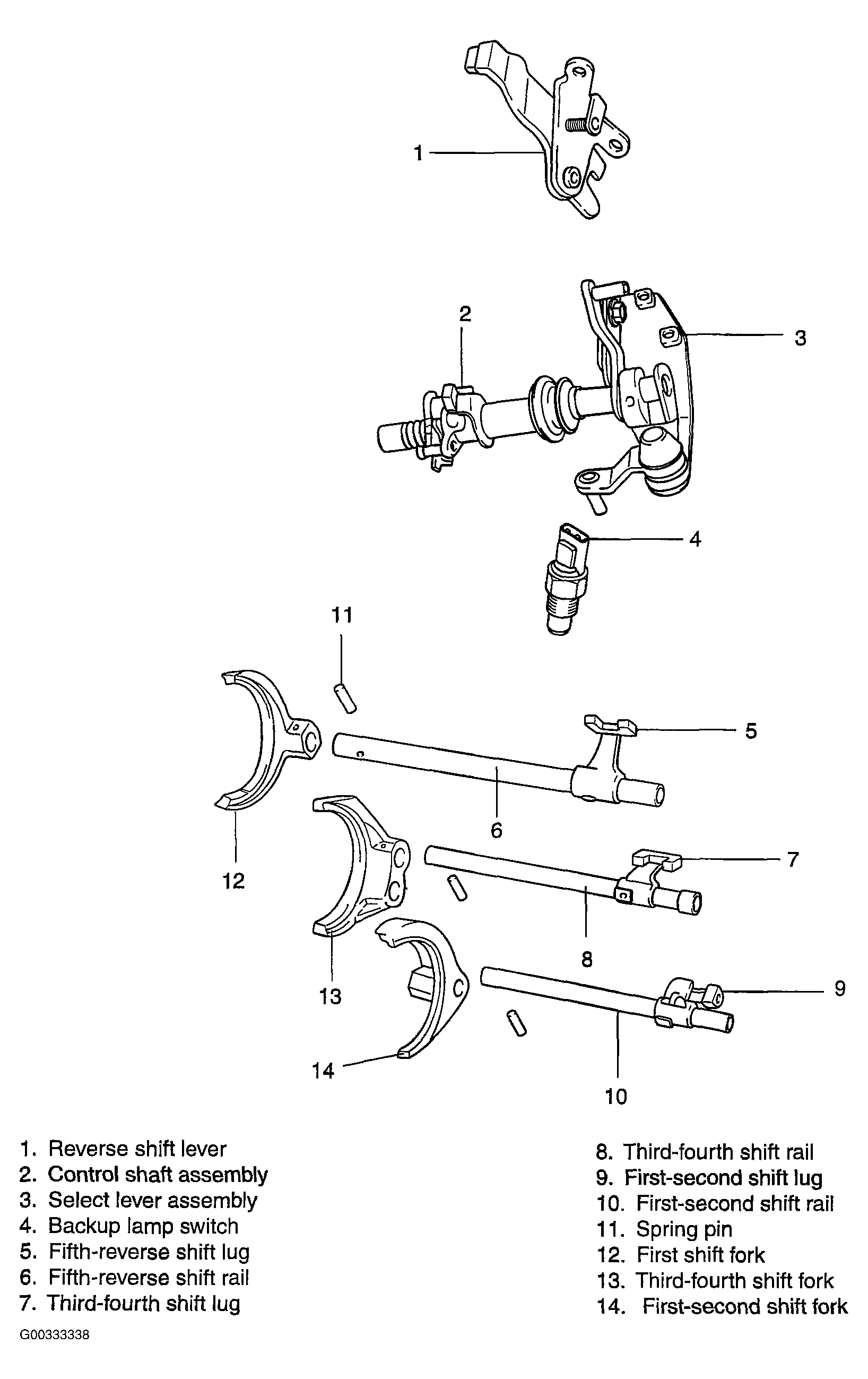

Fig 1: Exploded View Of Shift Forks

G00333338

Courtesy of KIA MOTORS AMERICA, INC.
