Manual Transaxle: Components

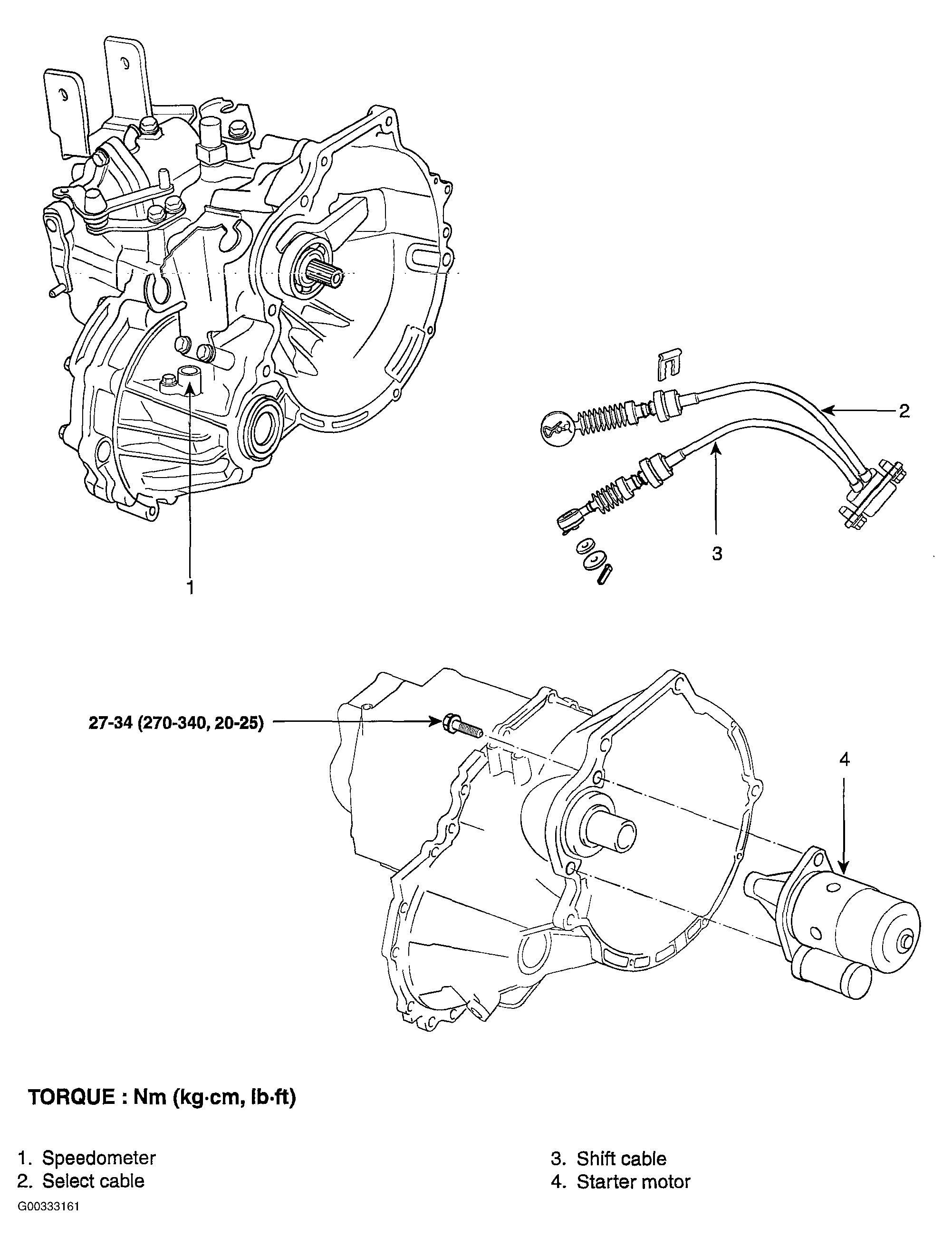

Fig 1: Identifying Starter Location & Transaxle Shift/Select Cables

Courtesy of KIA MOTORS AMERICA, INC.

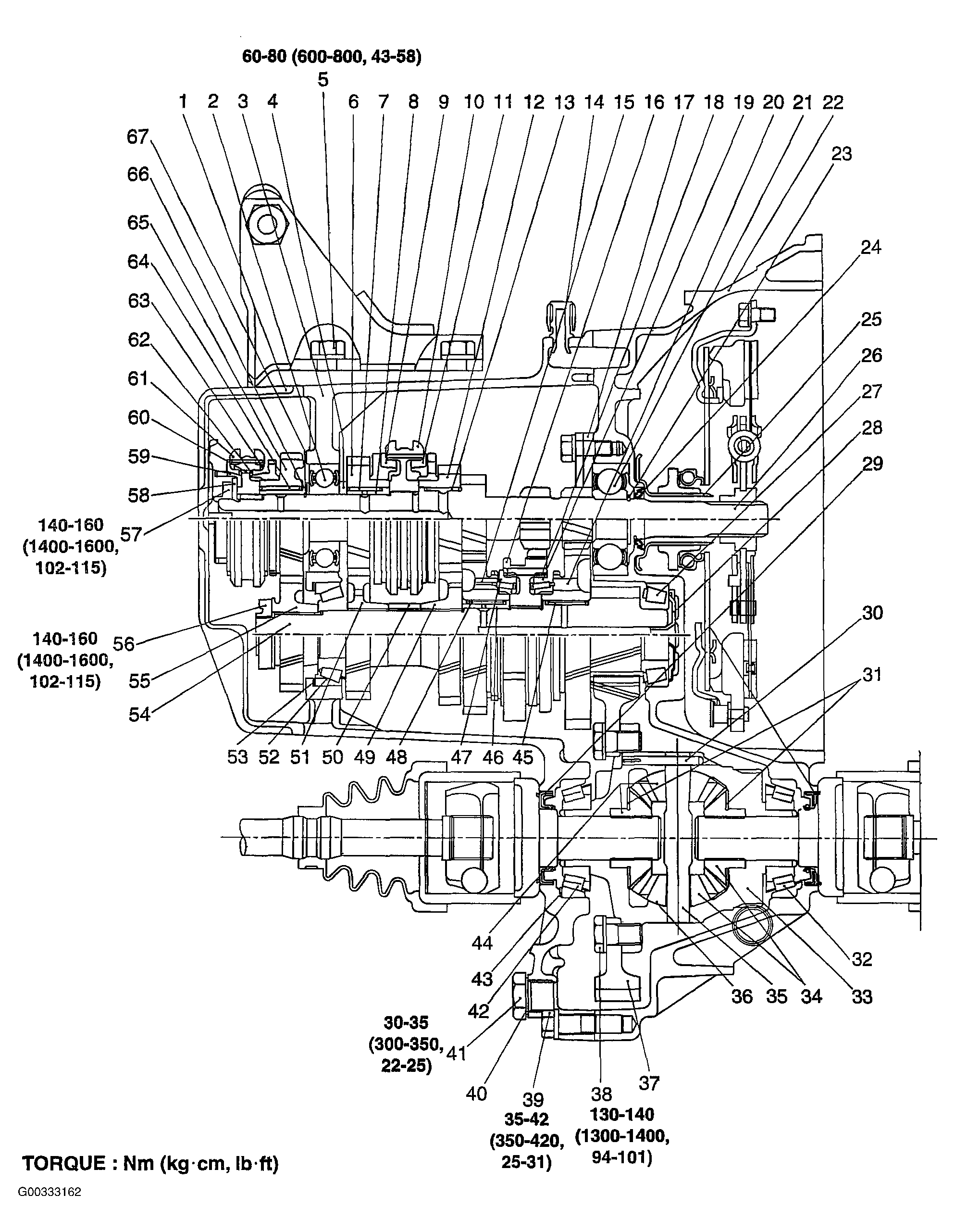

Fig 2: View Of Transaxle Internal Components - Illustration (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

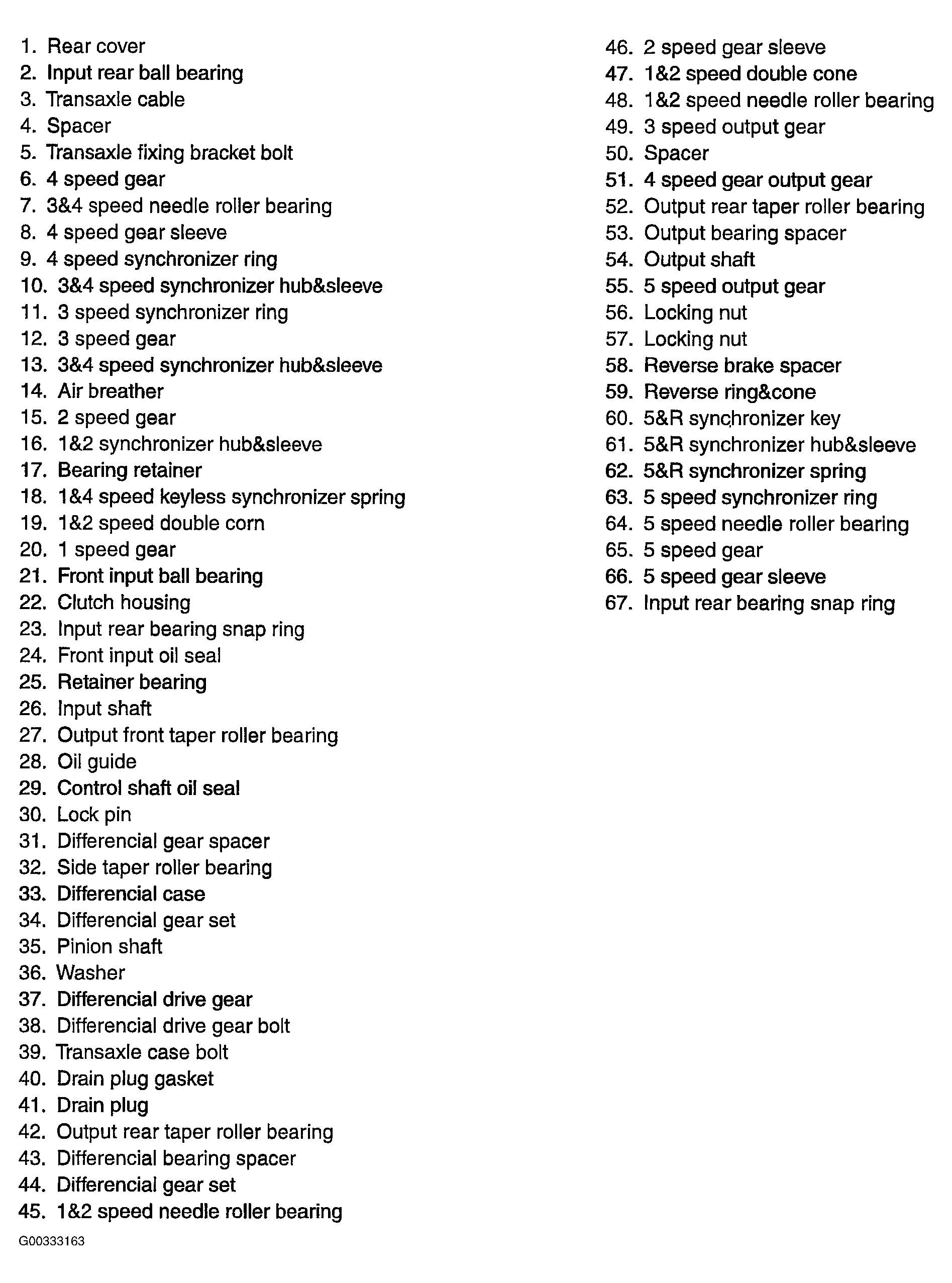

Fig 3: View Of Transaxle Internal Components - Legend (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

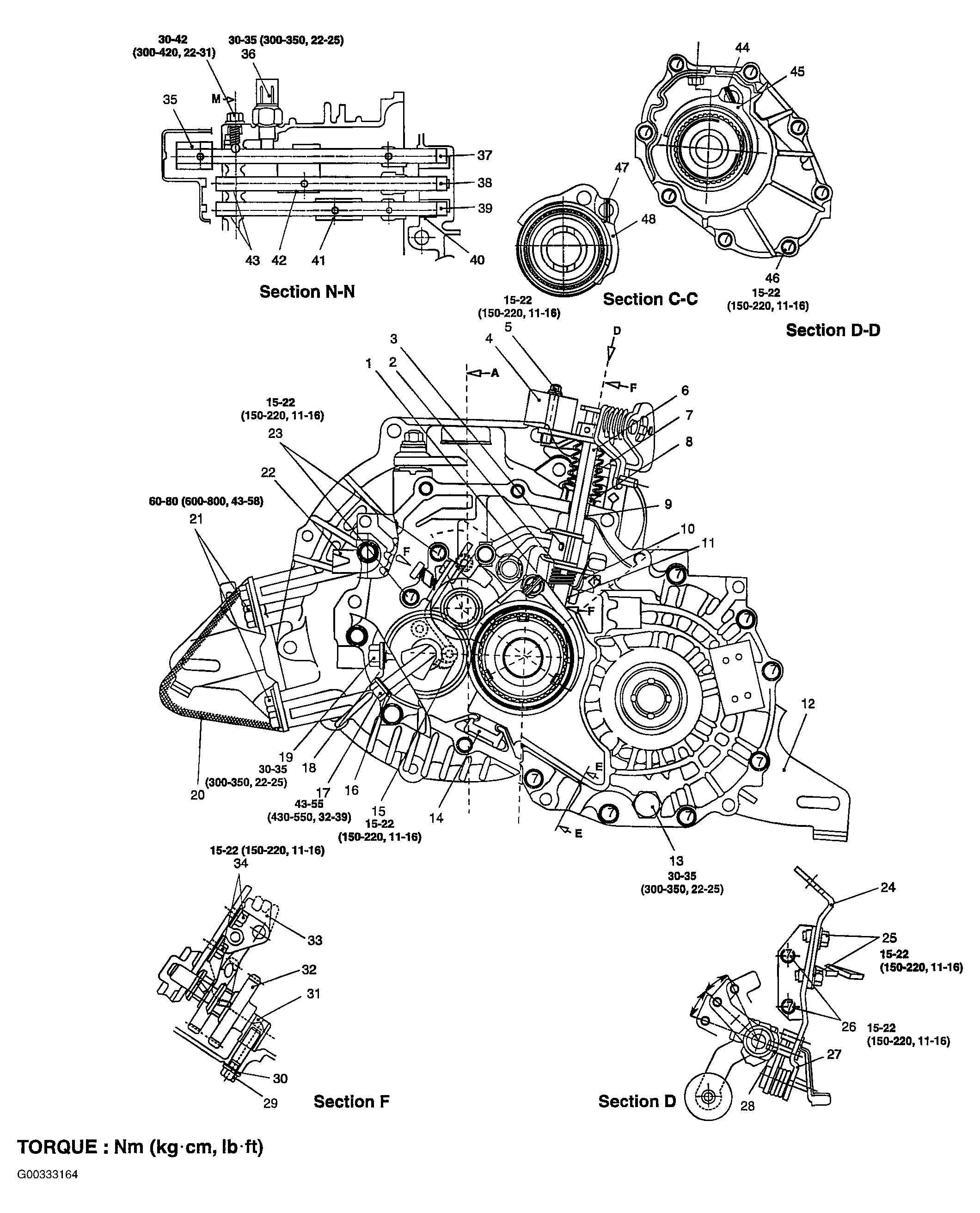

Fig 4: Transaxle Fastener Torque Specifications - Illustration (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

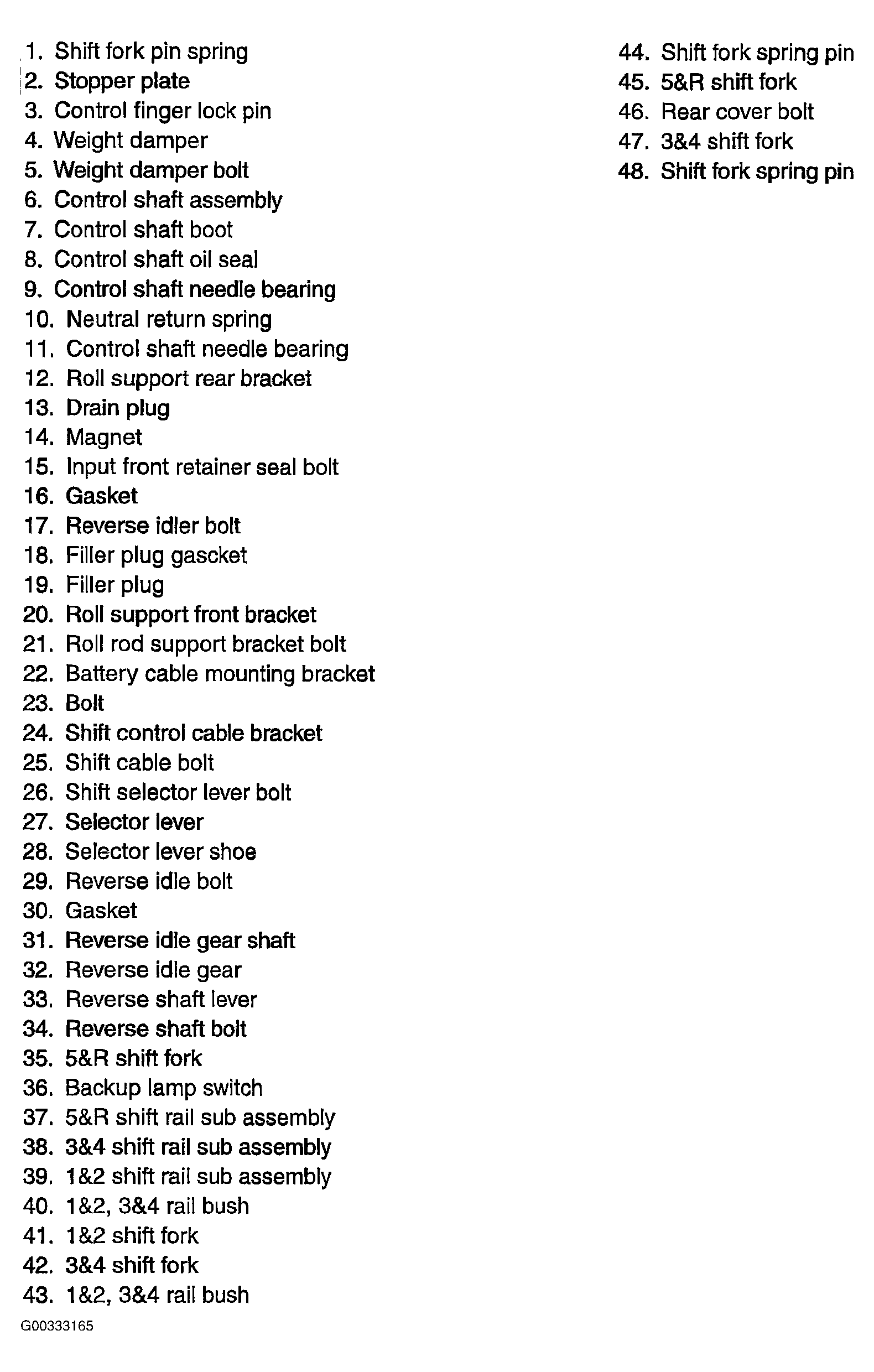

Fig 5: Transaxle Fastener Torque Specifications - Legend (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

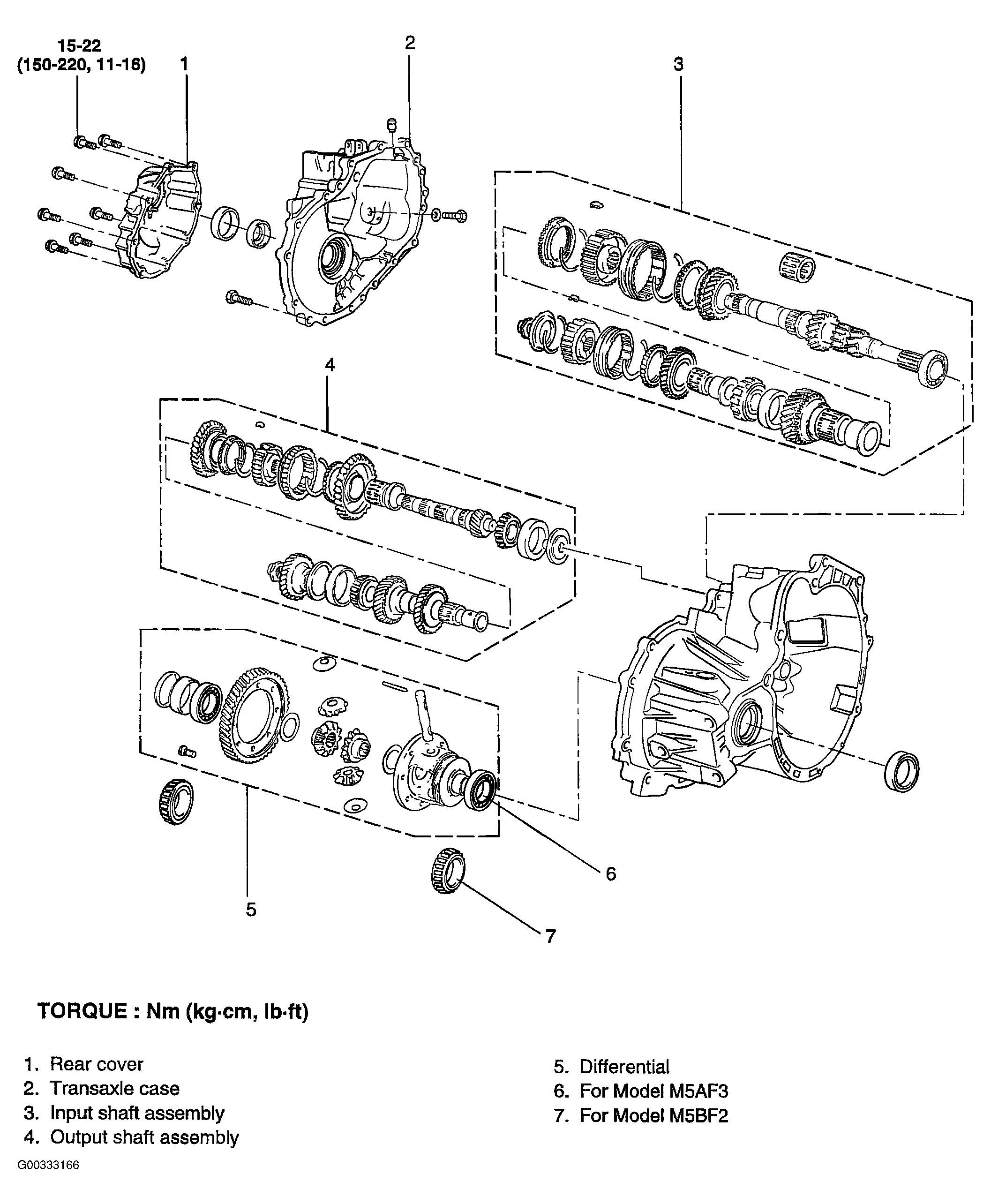

Fig 6: Exploded View Of Transaxle Input & Output Shaft Assemblies

Courtesy of KIA MOTORS AMERICA, INC.
