Manual Transaxle Shift Control: Removal

  1. Remove the console box.
  2. Remove the split pin and holder.
  3. Remove the shift assembly.
  4. Remove retainer (A) and nuts (B).

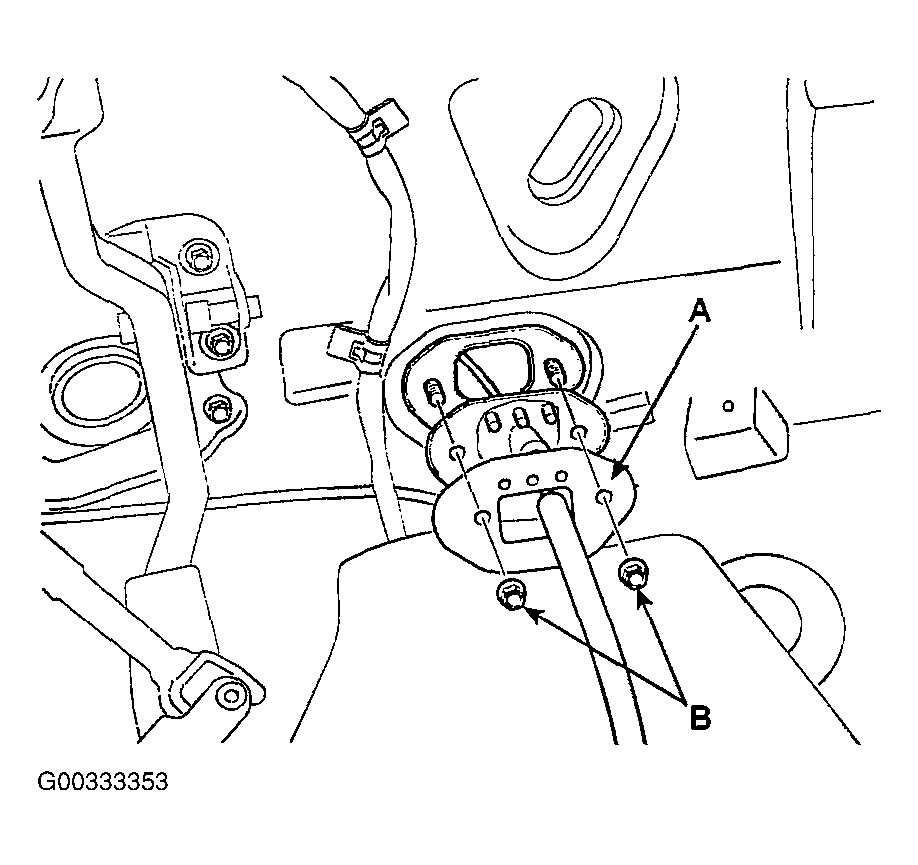

    Fig 1: Removing Retainer
    G00333353Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the split pin and holder (transaxle side).
  6. Remove the shift cable and select cable.
