Fifth Speed Synchronizer: Reassembly

Assemble the synchronizer hub, sleeve and key noting their direction.
The synchronizer sleeve has teeth missing at six portions.
- Assemble the hub to the sleeve so that the center tooth between the two missing teeth will touch the synchronizer key.

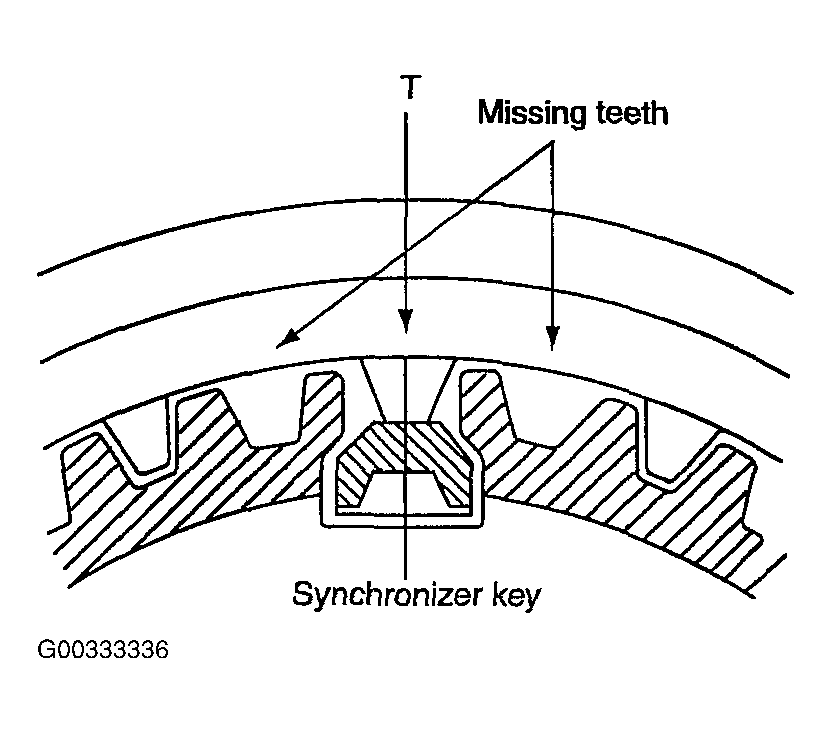

  Fig 1: Assembling Synchronizer Hub To Sleeve
  Courtesy of KIA MOTORS AMERICA, INC.
Install the synchronizer spring so that its protrusion may be engaged in the groove of the synchronizer key.
CAUTION: When installing the synchronizer springs, make sure that the front and rear ones are not faced in same direction.

Fig 2: Installing Synchronizer Spring
Courtesy of KIA MOTORS AMERICA, INC.
