Home >> Kia >> 2005 >> Spectra EX, 2.0 1, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Manual Transaxle System >> Differential >> Components

Manual Transaxle System: Differential: Components

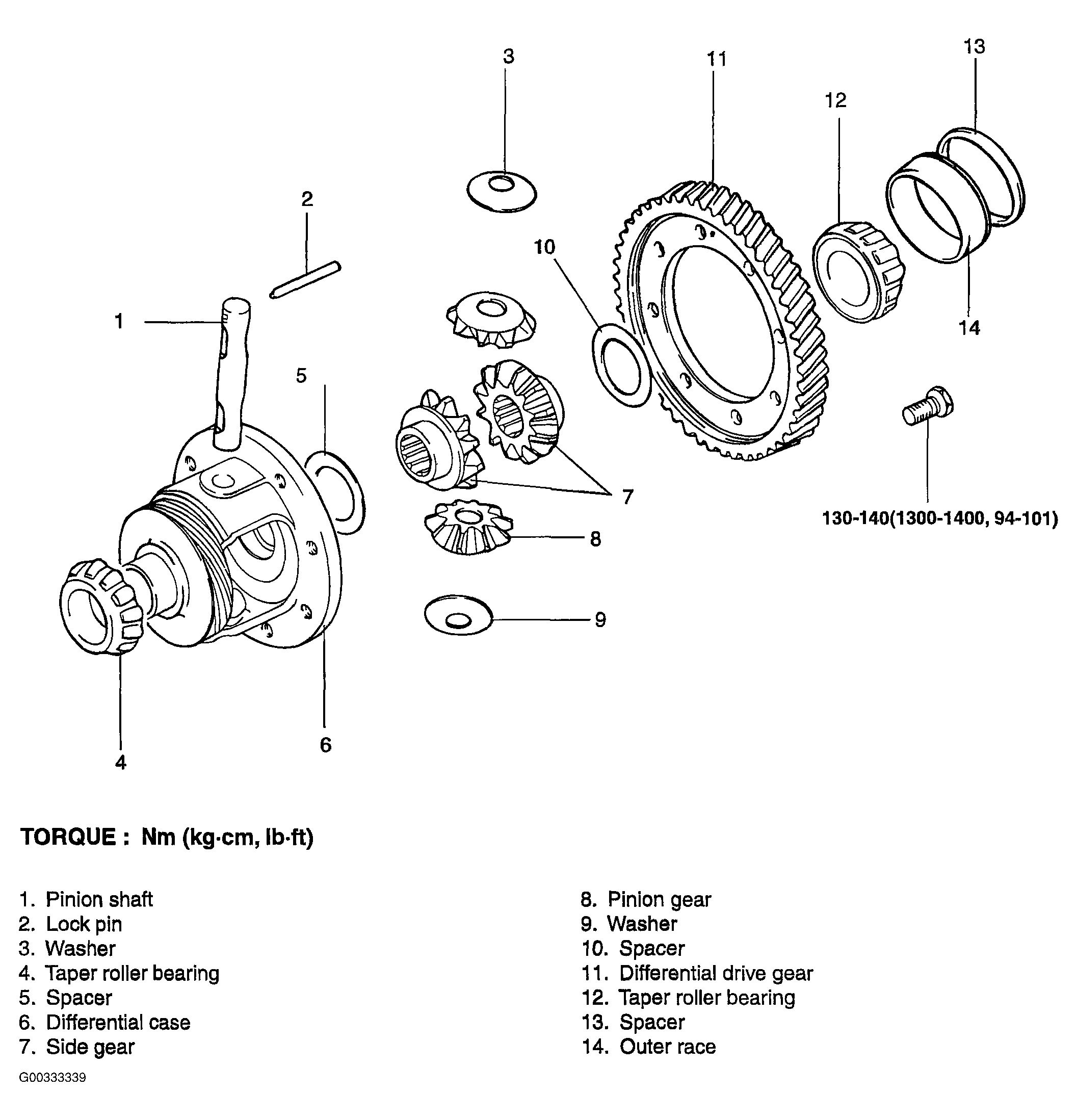

Fig 1: Exploded View Of Differential

G00333339

Courtesy of KIA MOTORS AMERICA, INC.
