Wiper Switch

WARNING: This page is about a different car, the 2005 Kia Spectra5 and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

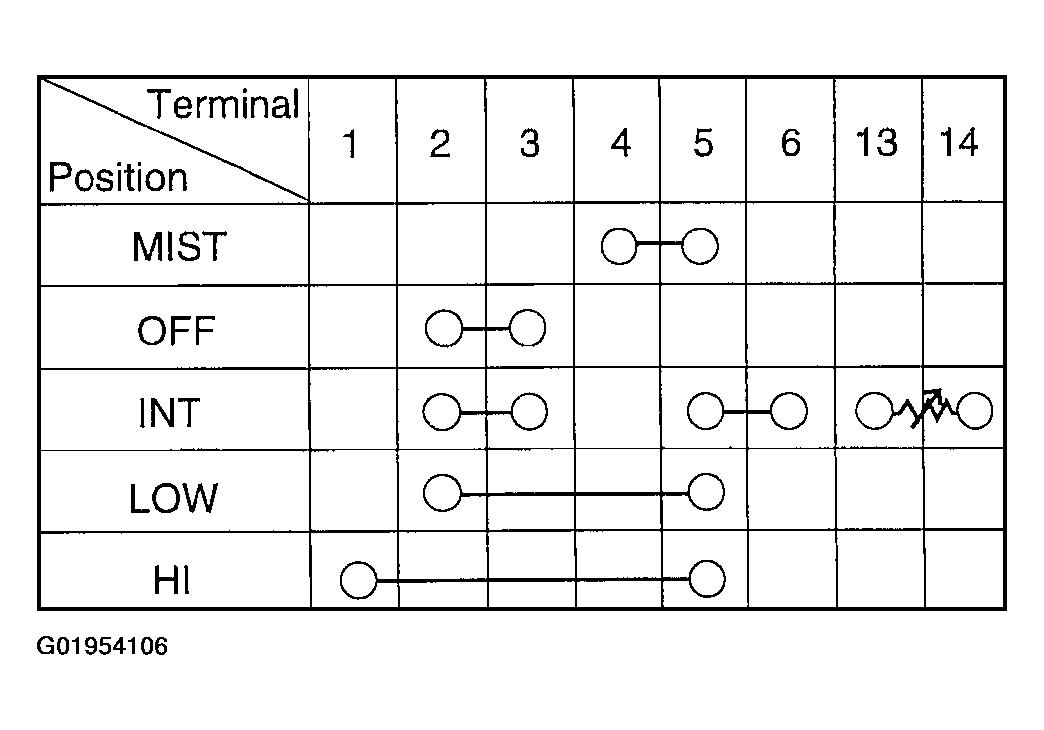

Fig 1: Illustrating Wiper Switch Operation
G01954106Courtesy of KIA MOTORS AMERICA, INC.
