LEMON Manuals: Even more car manuals for everyone

Home >> Kia >> 2005 >> Spectra EX, 2.0 1, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures - 2.0L >> Troubleshooting For DTC >> DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem >> Specification

DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem: Specification

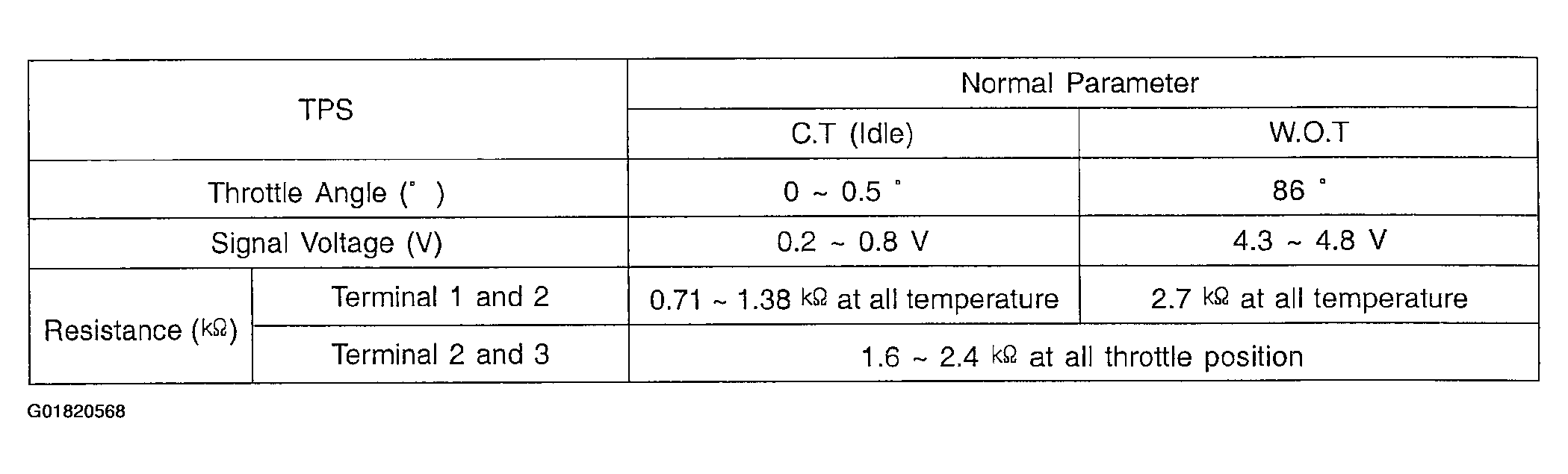

Fig 1: DTC P0121 Specification

G01820568

Courtesy of KIA MOTORS AMERICA, INC.
